Handbrake cable - r+r

Operation 3380A30 · Handbrake control and linkage

Removal

Position the vehicle on the ramp.

Proceed with the removal See Op. 4450B11 Rear wheel (one) - r r .

Remove the handbrake boot.

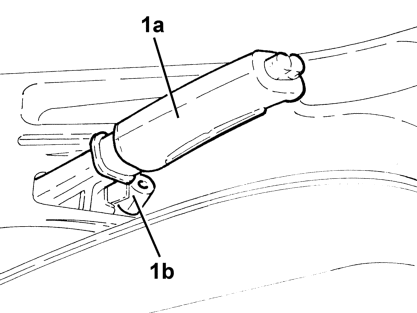

1 Lift up the handbrake lever 1a and loosen the nut 1b tensioning the handbrake cables.

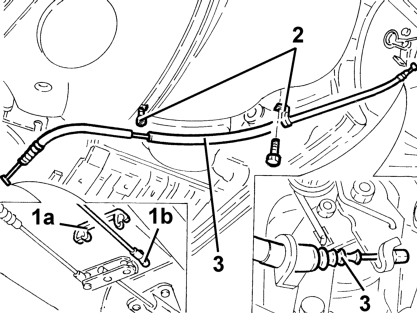

1 Remove the retainer 1a and disconnect the handbrake cable 1b.

2 Release the handbrake cable from the intermediate attachments.

3 Disconnect the handbrake cable from the rear brake caliper and remove it completely from the protective sheath.

Refitting

Refit the handbrake cable complete with protective sheath back in its seating and connect it to the rear brake caliper.

Secure the handbrake cable from the intermediate attachments.

Connect the handbrake cable to the rod connected to the handbrake lever and secure it using the retainer.

Adjust the travel of the handbrake lever See Op. 3380A04 Handbrake - check travel .

Place the handbrake boot back in its housing.

Proceed with the refitting See Op. 4450B11 Rear wheel (one) - r r .

Remove the car from the ramp.
