Handbrake/linkage protection - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Handbrake › Handbrake/linkage protection - r+r

Brakes, ABS and traction controlHandbrake/linkage protection - r+r

Handbrake/linkage protection - r+r

Operation 3380A44 · Handbrake control and linkage

Removal

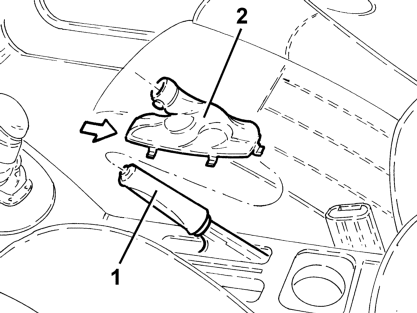

1 Raise the handbrake lever and open the button protecting the handbrake control.

2 Withdraw and remove the handbrake cable protection, working on the side indicated by the arrow.

Refitting

Refit the brake control protection in its seat and close the button.
