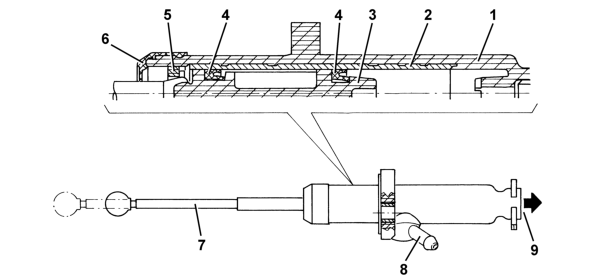

Clutch release hydraulic control – clutch release pump

• 1 Casing
• 2 Steel cylinder
• 3 Piston
• 4 Gasket
• 5 Piston stop fork
• 6 Protection
• 7 Operating stem
• 8 Fluid inlet
• 9 CSC actuator fluid supply

VIEW OF CLUTCH PUMP

The clutch release pump has been designed with the casing and piston made from plastic to reduce the weight and the operating stem secured to the piston. There is a steel cylinder, inside the casing in the area of the piston seals, to prevent wear and

distortions due to pressure.

The piston is prevented from escaping by a stop fork, whilst a protection prevents the build up of dirt inside the cylinder.
