Alfa Romeo 147 Factory Service Manual (2000-2002)16 · Connectors and pin-outs
16 · General

I11 Boot opening switch

Make
Alfa Romeo
Model
147 Factory Service Manual
Year
2000–2002
Section
Switches › I11 Boot opening switch
Connectors and pin-outsI11 Boot opening switch

I11 Boot opening switch

Connector I11 – rear harness (black)

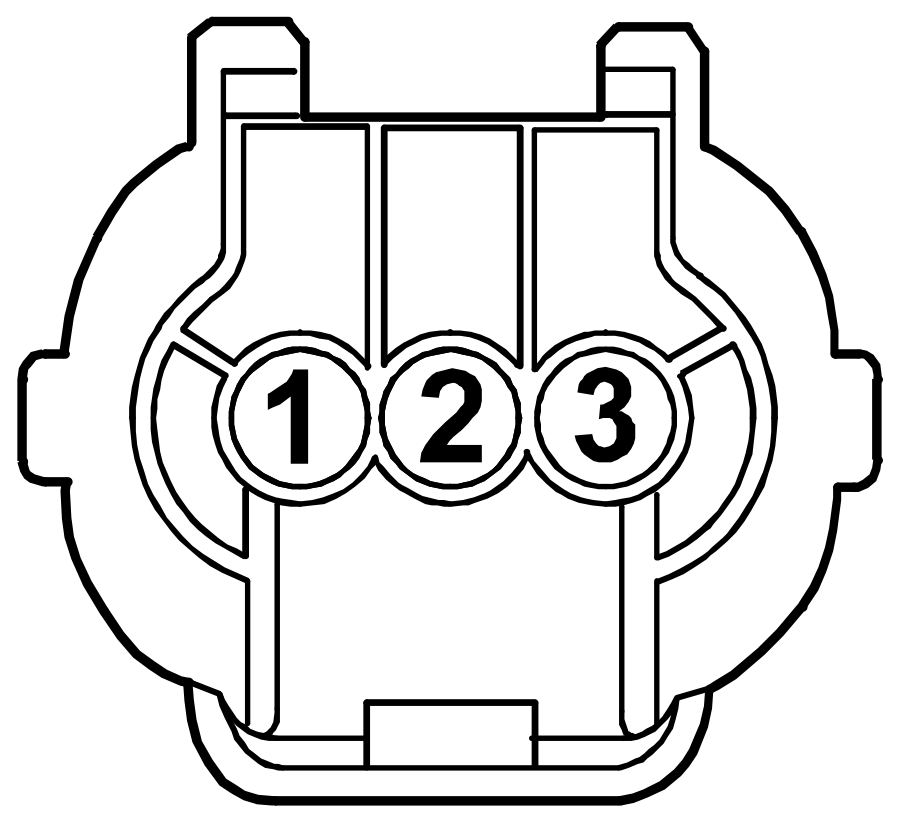

Connector I11, Boot opening switch
Pinmm²ColourTo
1HMgrey/brownM01E pin 36
2NZblack/violetC30 pin 2
3HNgrey/blackG40 pin 3

Wiring diagrams
