I30 Brake pedal switch

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Switches › I30 Brake pedal switch

Connectors and pin-outsI30 Brake pedal switch

I30 Brake pedal switch

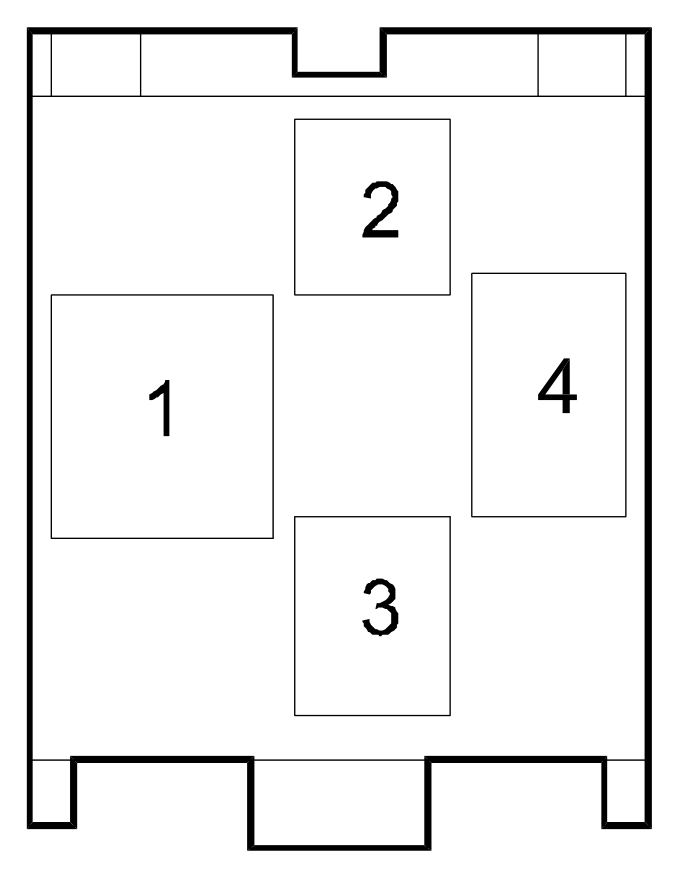

Connector I30 – front harness (white)

Pin	mm²	Colour		To
1		LB	blue/white	D97B pin 8
2		C	orange	B02A pin 14
3		CL	orange/blue	D97A pin 9
4		CN	orange/black	B02A pin 15

Wiring diagrams

• E2021
• E5030
• E5060
• E7022
• E7051
