Operating strategy
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Hydraulic transmission external linkage › Operating strategy
Gearbox (manual and Selespeed)Operating strategy
Operating strategy
- 1 Gear selector lever switches
- 2 Engine rpm sensor
- 3 Vehicle speed (via A.B.S. control unit CAN line)
- 4 Gear selector levers
- 5 Brake pedal (dual) switch not earthed
- 6 Oil pressure sensor
- 7 Driver's side door switch
- 8 CITY button
- 9 Gear input rpm sensor
- 10 Clutch position sensor
- 11 Speed selection position sensor
- 12 Shift position sensor
- 13 Built-in throttle body DVE (CAN line)
- 14 Accelerator pedal potentiometer (CAN line)
- 15 Proportional pressure solenoid (no. 2)
- 16 On-off solenoid 2
- 17 Proportional flow solenoids
- 18 Electric pump
- 19 Buzzer
- 20 Control panel
- 21 Diagnostic socket

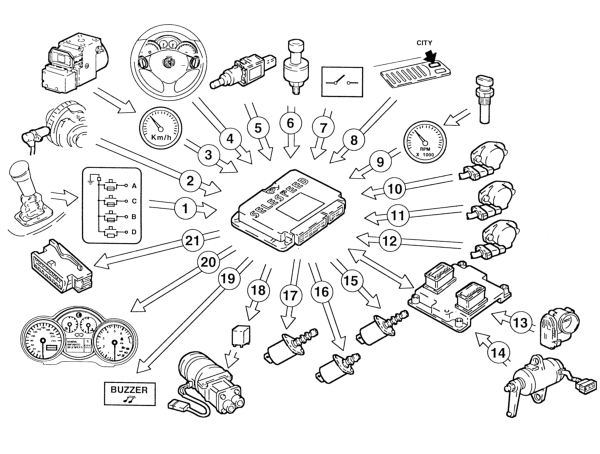

DIAGRAM OF INPUT/OUTPUT INFORMATION FROM THE CONTROL UNIT
