Reservoir

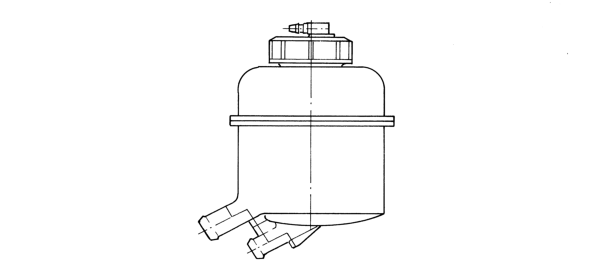

The reservoir containing the fluid necessary for the operation of the electro-hydraulic unit is located on the hydraulic pump mounting bracket.

The connection to the system is via two pipes; one supply pipe, connected to the pump and a return pipe connected to the hydraulic unit outlet connector.

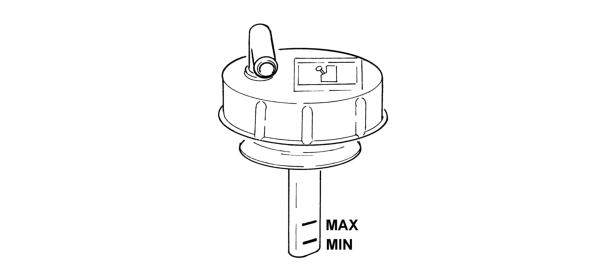

The fluid reservoir cover has:

a breather connector on the upper part

a special dipstick inside for checking the level of the fluid in the hydraulic system (which should be between the MIX/MAX levels when cold).
