Gear shift/selection system

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Manual gearbox with differential › Gear shift/selection system

Gearbox (manual and Selespeed)Gear shift/selection system

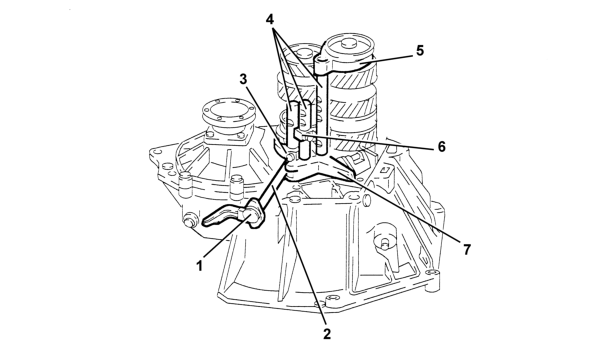

Gear shift/selection system

• 1 Fluctuating control
• 2 Selector dog
• 3 1st and 2nd engagement/selector fork
• 4 Sliding rods
• 5 5th engagement/selector fork
• 6 3rd and 4th engagement/selector fork
• 7 Reverse engagment/selector fork

The gear shift/selection system consists of:

a swinging control 1 connected to selector dog 2

selector dog 2 which operates sliding rods 4 fitted with synchronisation sleeve control forks (3, 5, 6, 7).
