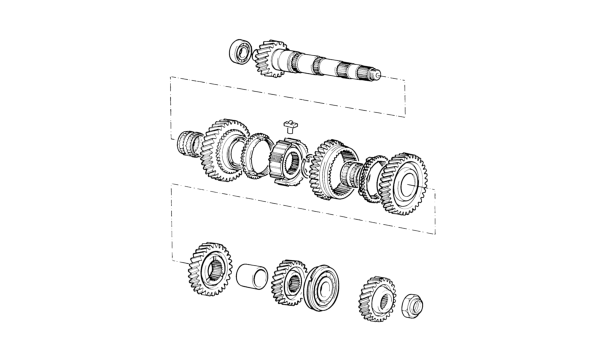

Layshaft

The layshaft consists of:

1st and 2nd speed gears, fitted on needle bearings with synchronizers

3rd, 4th and 5th speed gears fitted on the shaft.

The layshaft is supported on:

a roller bearing at the pinion end

a ball bearing at the cover end.
