Heating, air conditioning and washersIntroduction

INTRODUCTION

INTRODUCTION

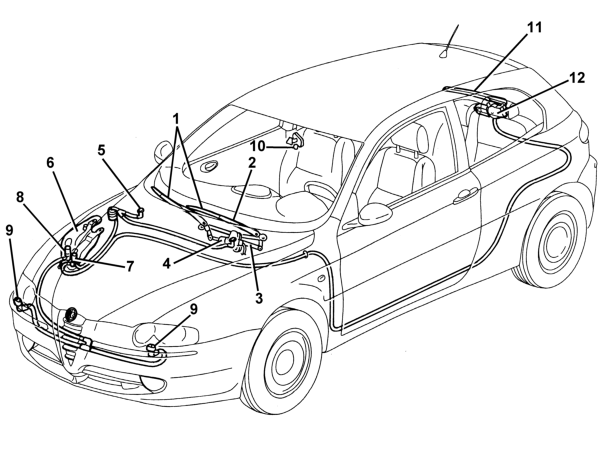

  • 1 Windscreen wiper blade
  • 2 Wiper arm
  • 3 Windscreen wiper mechanism
  • 4 Windscreen wiper motor
  • 5 Windscreen washer jets
  • 6 Reservoir
  • 7 Windscreen/rearscreen washer pump
  • 8 Headlamp washer pump
  • 9 Headlamp washer jets
  • 10 Rain sensor
  • 11 Rearscreen wiper arm/blade
  • 12 Rearscreen wiper motor

The system fitted on the vehicle is designed to clean and wash the front windscreen and the rearscreen. There may be an optional system for washing the front light clusters using the windscreen washer fluid under pressure.
