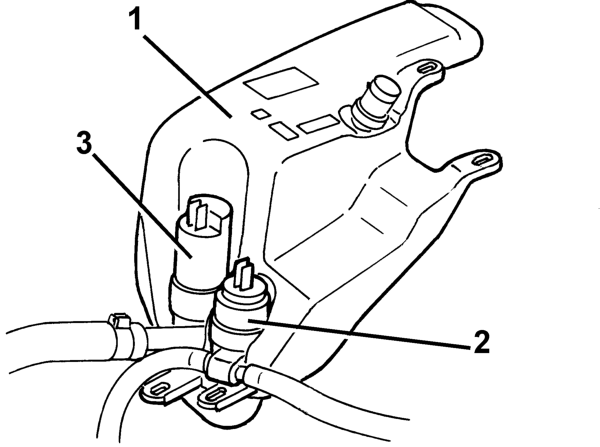

RESERVOIR

• 1 Windscreen washer fluid reservoir
• 2 Two-way pump supplying fluid to the jets
• 3 Headlamp washer system pump (if fitted)

The reservoir, located in the right wheel arch, supplies the windscreen/rearscreen washer system pump with the necessary water/anti-freeze mixture for cleaning the front and rear windscreens, in addition, if the vehicle is equipped with headlamp

washers, it also supplies this system.

The two-way type pump, thanks to the two pipes connected to it, allows the supply of both groups for jets for the front windscreen and the rearscreen.

The capacity of the reservoir guarantees a minimum of 25 washing cycles and can vary from a minimum of 5 litres on versions with headlamp washers to a maximum of 6 litres on versions with headlamp washers.

The reservoir is made from plastic and has outside seats for housing the rearscreen and headlamp washer pump (if fitted).
