Change brake fluid (2.0 TS Selespeed)

Operation 0010T60 · 2.0 TS Selespeed · Vehicle oil and fluids

Position the vehicle on the ramp.

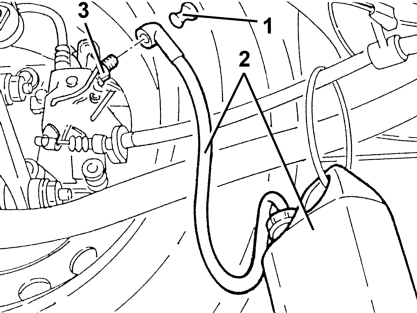

1 Remove the protective cap on the brake caliper bleed valve.

2 Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

3 Open the bleed valve on the brake caliper.

Operate the brake pedal until all the fluid has come out.

Repeat the above operations for the other brake calipers.

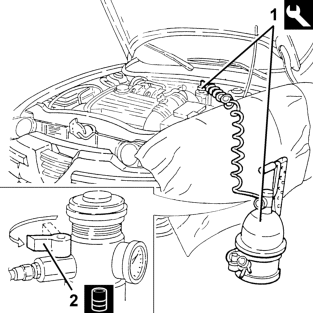

1 Connect the tool to the brake-clutch fluid reservoir.

Special tool 1.806.097.001 – Brake/clutch bleeding equipment 1

2 Slowly open the cock on the reservoir of the device and fill the braking system with the specified fluid.

Product for HYDRAULIC BRAKING SYSTEM 2: Liquid – Alfa Romeo Brake Fluid Super DOT4

Wait until all the air contained in the hydraulic brake system has come out.

Close the bleed valves on the brake calipers and fit the protective caps.

Remove the fluid collection devices.

Remove the equipment.

Special tool 1.806.097.001 – Brake/clutch bleeding equipment

Remove the car from the ramp.

Check the efficiency of the braking system.
