Gearbox and differentialRemoval and installation · page 2 of 4

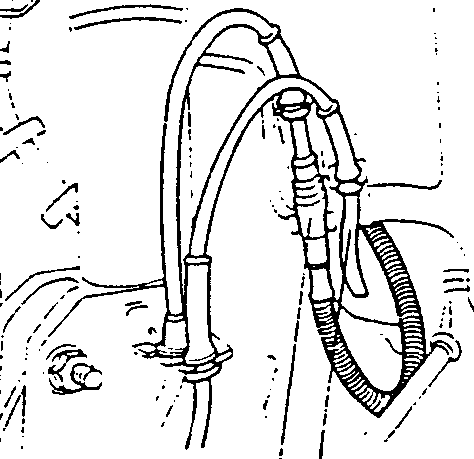

- (only applicable to vehicles with controlled damping suspension):
- disconnect the controlled damping system sensor connector.
- (only applicable to vehicles with ABS system):
- unscrew the screws securing the ABS system wiring support bracket and move it to one side and secure it to the suspension.
- part name
- part name

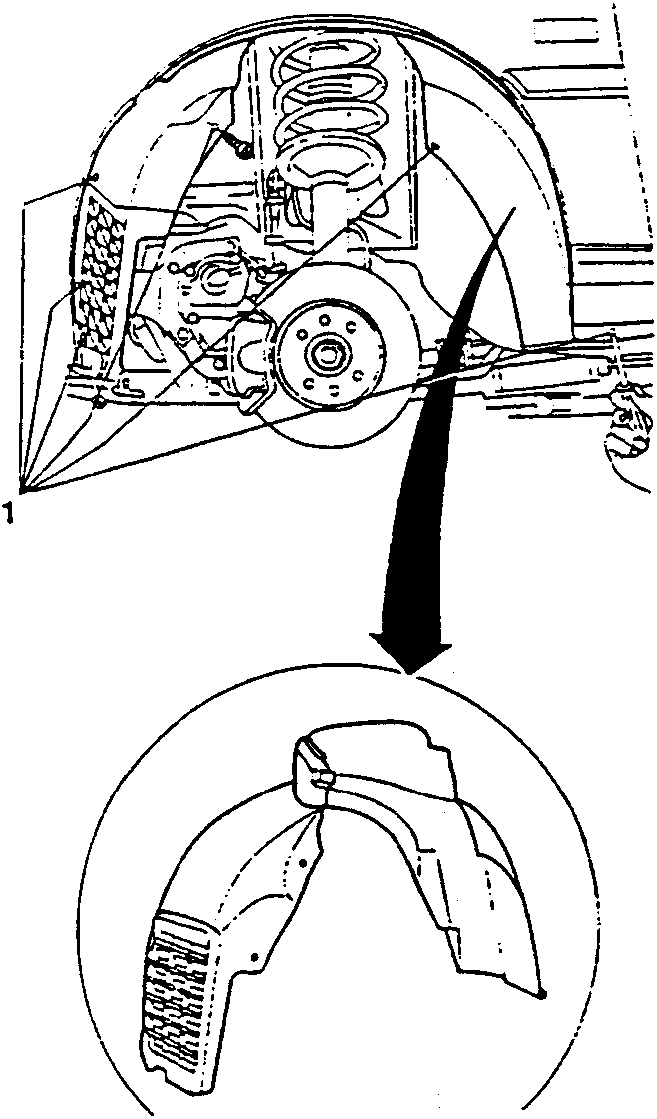

- Unscrew the screws securing the plastic wheelhousing to the body and remove it.
