Removal and installation (page 3 of 4)

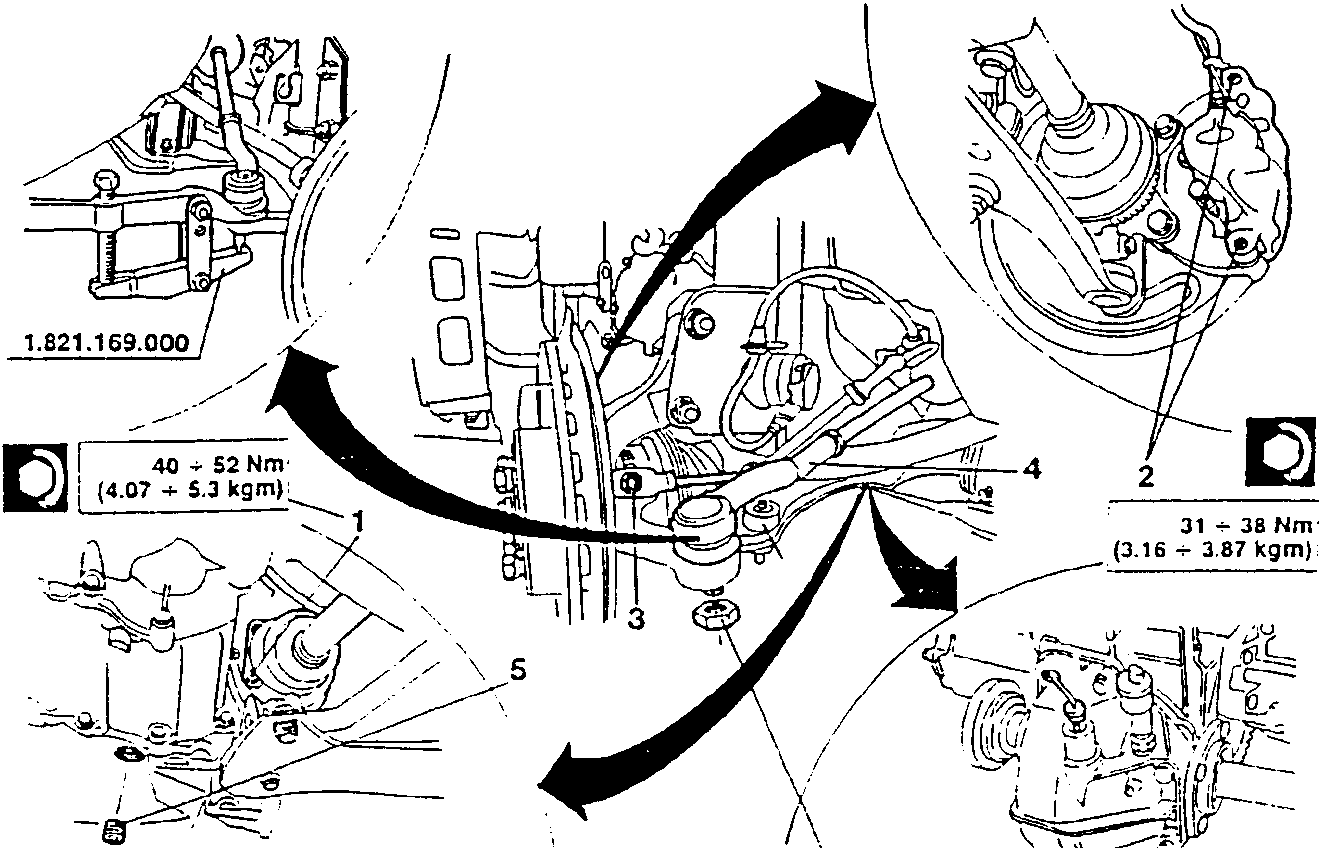

1. Unscrew the six bolts and disconnect the constant speed joint from the differential flange and removing the three safety plates.
2. Unscrew the two bolts securing the brake caliper and remove it together with the pads and arrange it in the upper part of the wheel housing.

CAUTION:

• On installation replace the screws securing the brake caliper body.
• The brake pad and wear sensor must be installed on the inner side of the disc (brake caliper piston side); also check that the discharge duct on the outer part of the pad is placed to the rear of the direction of travel.

3. (only for vehicles equipped with ABS):
   • unscrew the screws securing the ABS sensor and remove it.
4. Unscrew the nut securing the steering cross tie-rod spherical joint and withdraw it using tool-No. 1.821.169.000.
5. Unscrew the plug and drain the oil from the gearbox-differential. (Refill gearbox with the prescribed oil on installation)

40 - 52 Nm
(4.07 - 5.3 kgm)

31 - 38 Nm
(3.16 - 3.87 kgm)

35 - 55 Nm
(3.57 - 5.60 kgm)

32 - 42 Nm
(3.26 - 4.28 kgm)
