Removal and installation (page 4 of 4)

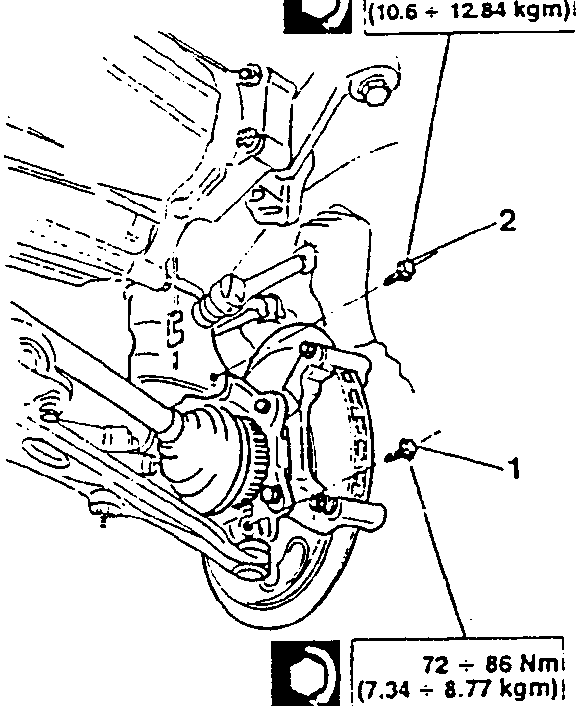

1. Unscrew and remove the bolt securing the wheel support to the spherical joint of the suspension arm.
2. Unscrew the two bolts securing the suspension stem to the wheel support and remove wheel hub, brake disc and drive shaft assembly.

104 ÷ 126 Nm
10.6 ÷ 12.84 kgm

72 ÷ 86 Nm
7.34 ÷ 8.77 kgm

– Proceeding from the right-hand side of the vehicle, operate as follows:

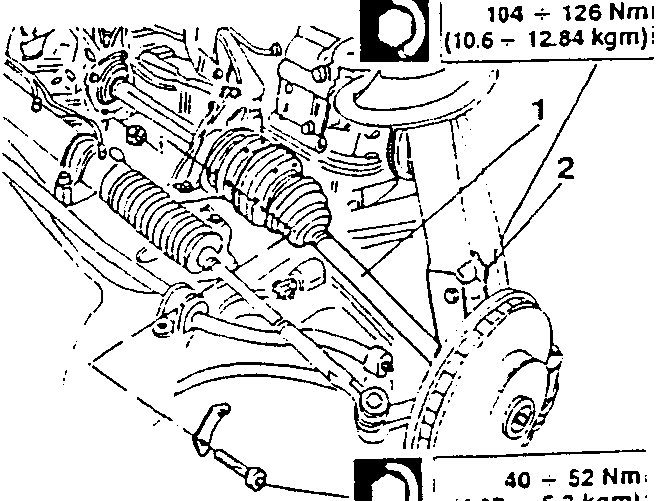

1. Unscrew the six bolts and disconnect the right-hand constant speed joint from the intermediate shaft and remove the three safety plates.
2. Loosen the two bolts securing the wheel support to the suspension stem and remove the upper one.

40 ÷ 52 Nm
4.07 ÷ 5.3 kgm

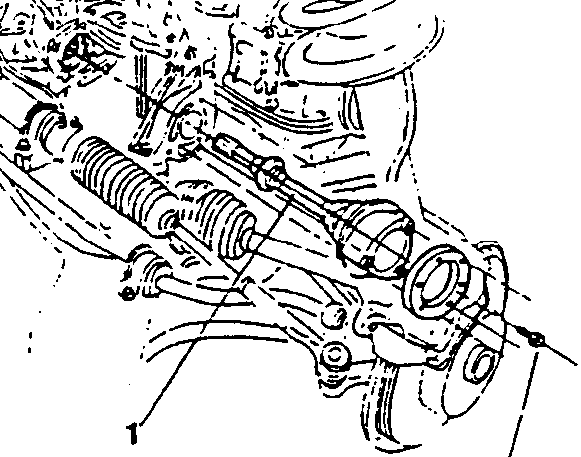

1. Unscrew the screws securing the intermediate shaft flange to the engine mounting and withdraw the shaft from the differential.

8 ÷ 10 Nm
0.82 ÷ 1.02 kgm

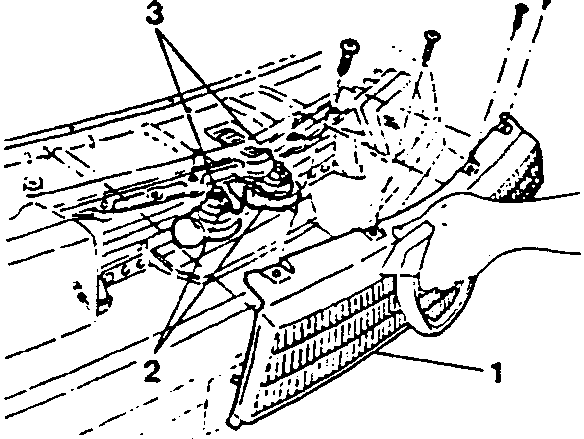

1. Unscrew the four screws and remove the front grill.
2. Disconnect the electrical wiring of the horns.
3. Unscrew the nuts securing the horns to the front cross member and remove the horns.

2.9 ÷ 4.7 Nm
0.29 ÷ 0.48 kgm
