Ignition, starting and charging (V6)Removal/refitting · page 2 of 5
  1. Remove the front cover from the timing belt.

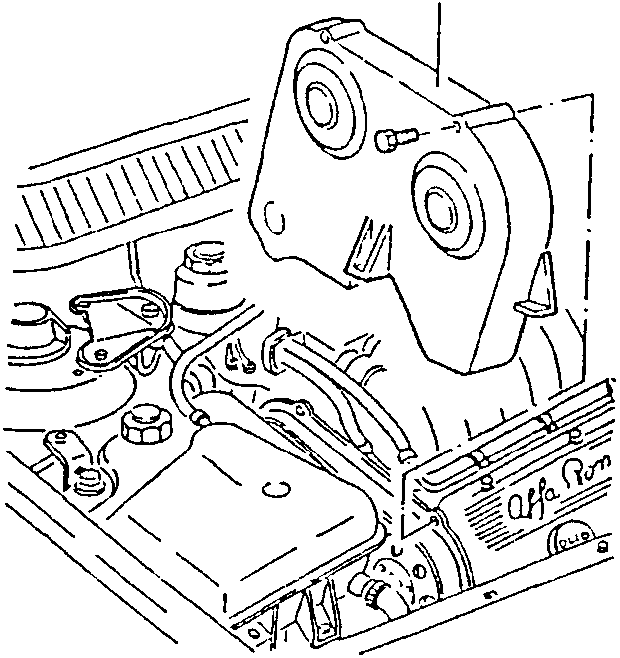

Engine with front cover removed showing timing belt area
  1. Remove the front wheels.

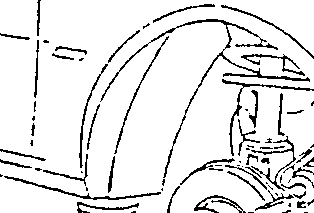

Front wheel assembly with dust cover and brake components

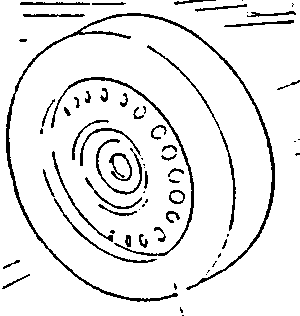

Close-up of front wheel hub and lug nuts
  1. Remove the dust cover from the front right-hand wheel housing.

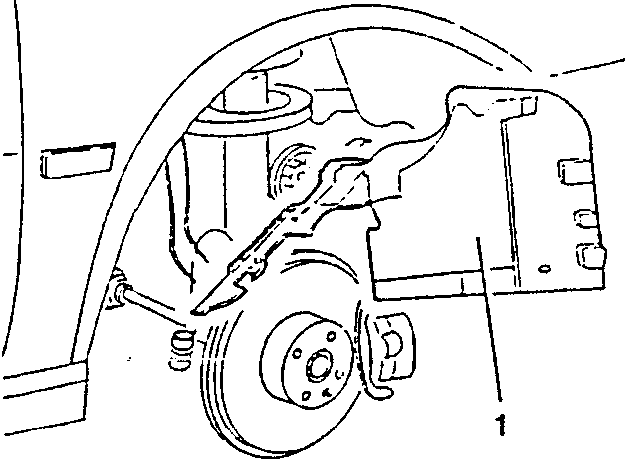

Front right-hand wheel housing with dust cover removed
  • Raise the vhicle.
  1. Remove the forward section of the exhaust pipe.
  2. Remove the gaskets.

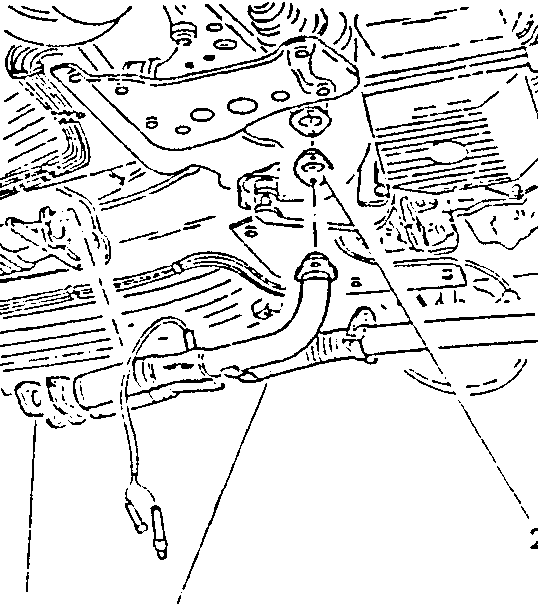

Exhaust pipe and gasket removal area under vehicle
