Ignition, starting and charging (V6)Removal/refitting · page 5 of 5

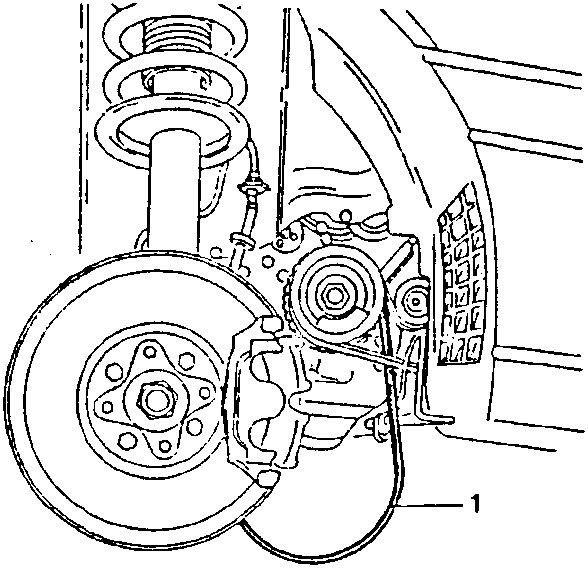

  1. Withdraw the cell from the alternator without removing it from the crankshaft pulley.
Alternator and crankshaft pulley with a tool pulling the cell away

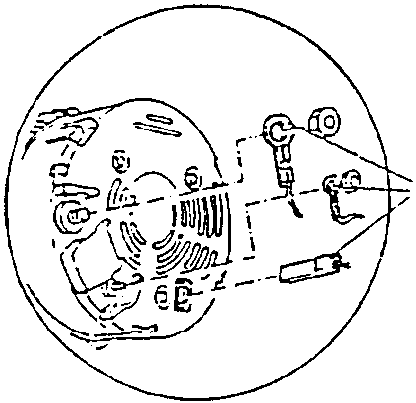

  1. Disconnect the electrical connections from the alternator.
Close-up of alternator electrical terminals being disconnected

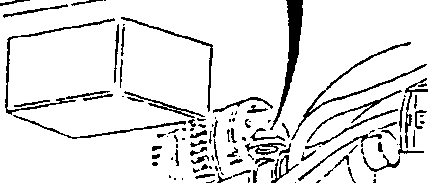

Alternator being pulled out from engine bay

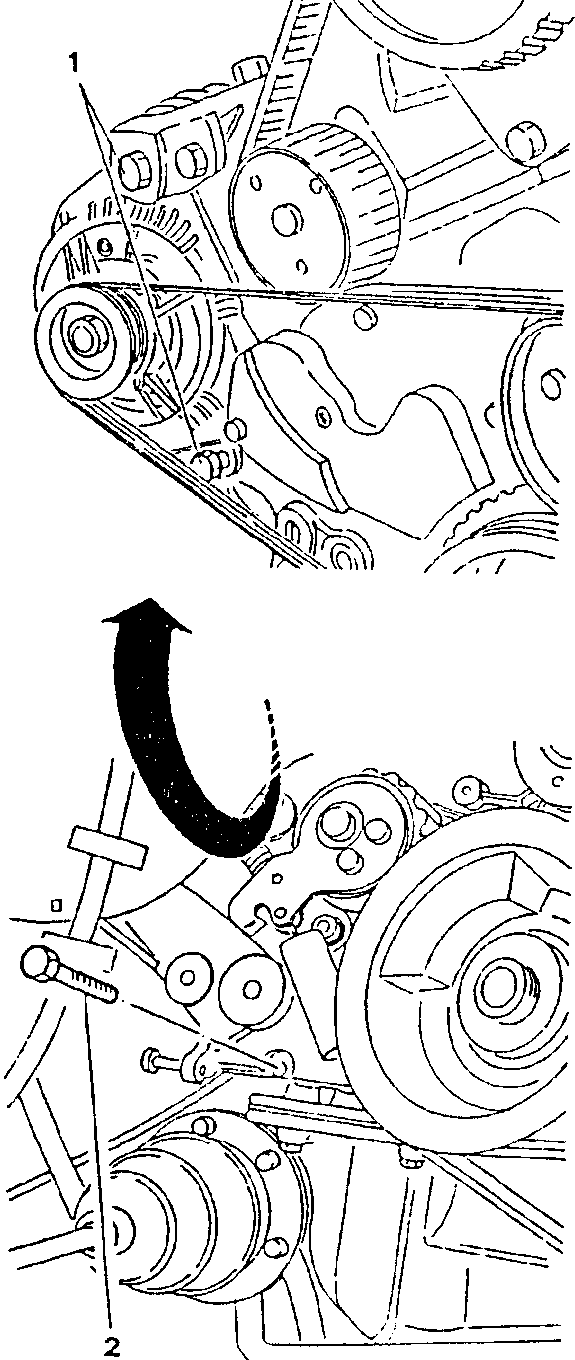

  1. Loosen the two bolts securing the alternator, and remove only the upper one.
Alternator mounting bolts with a wrench on the upper bolt
  1. Unscrew the screw securing the bracket to the alternator support micrometric tensioner.
