Ignition, starting and charging (V6)Removal/refitting · page 4 of 5

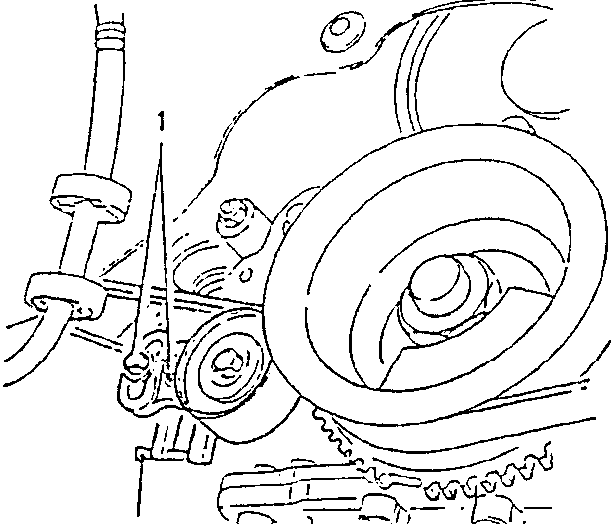

- Loosen the two screws securing the water pump alternator drive belt tensioner guide pulley
- Act on the screw of the micrometric tensioner in order to reduce the tension on the belt.

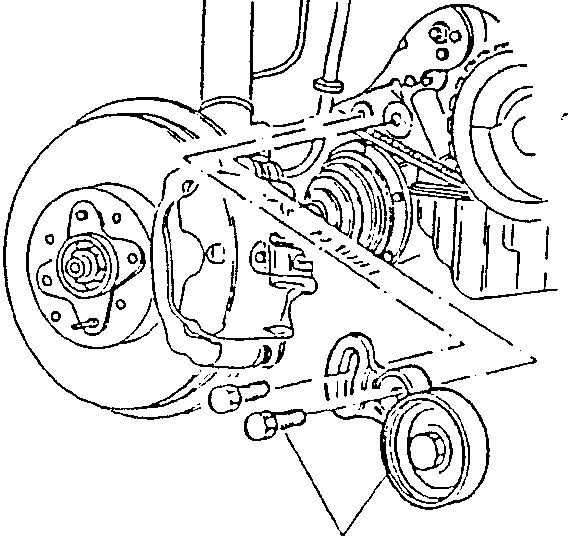

- Completely unscrew the two screws and remove the guide pulley.

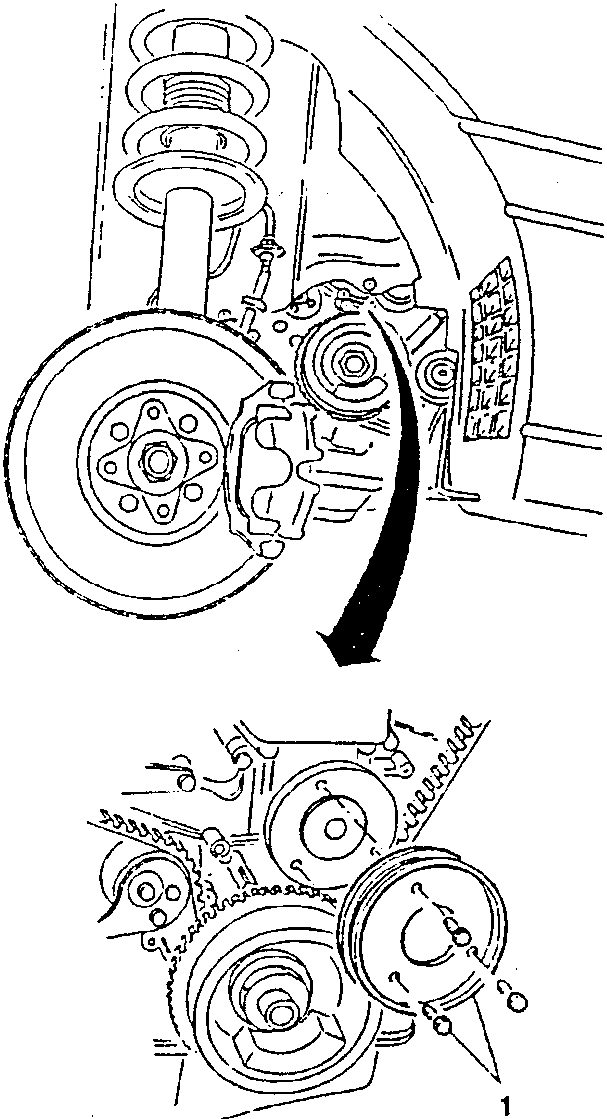

- Unscrew the three screws and remove the water pump pulley.
