Alfa Romeo 156 Factory Service Manual (1997-2002)11 · Body
11 · Body & interior

Longitudinal bars

Make
Alfa Romeo
Model
156 Factory Service Manual
Year
1997–2002
Section
Safety belts and accessories › Longitudinal bars
BodyLongitudinal bars

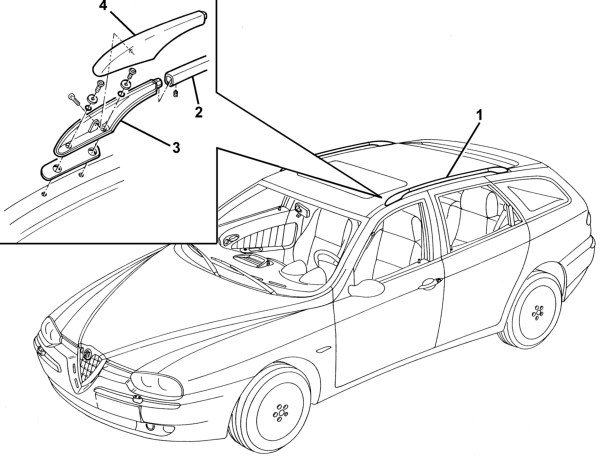

LONGITUDINAL BARS

LONGITUDINAL BARS
  • 1 Longitudinal bars
  • 2 Longitudinal element
  • 3 Front mounting bracket
  • 4 Top embellishment

On request, the car can be fitted with longitudinal aluminium bars for attaching a roof rack, ski holder, etc.

The bars are painted light grey and are attached to the roof with bolts from the outside, covered with a top embellishment.

The profile of the bars does not alter the aerodynamics of the car and limits the occurrence of turbulence and wind whistle during driving at various speeds.
