Rear view mirror - r+r

Operation 7065C68 · Accessories and decorations

Removal

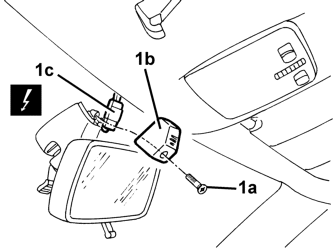

1 Only for vehicles equipped with a Telepass holder. Undo the bolt 1a, move the trim 1b and disconnect the electrical connection 1c.

Component D76 TELEPASS' connection' 1c

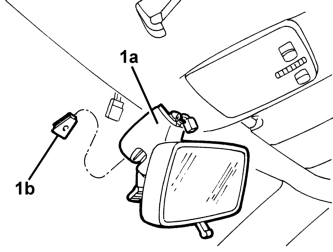

1 Lift up the mirror support 1a, by lifting it upwards out of the retaining mounting 1b secured to the glass.

Refitting

Check that the mirror support is not damaged.

Lower the mirror mount down to fit it into the retaining block secured to the glass.

Check that the support is firmly secured without clearance.

Connect the electrical connection

Position the trim and tighten the bolt.
