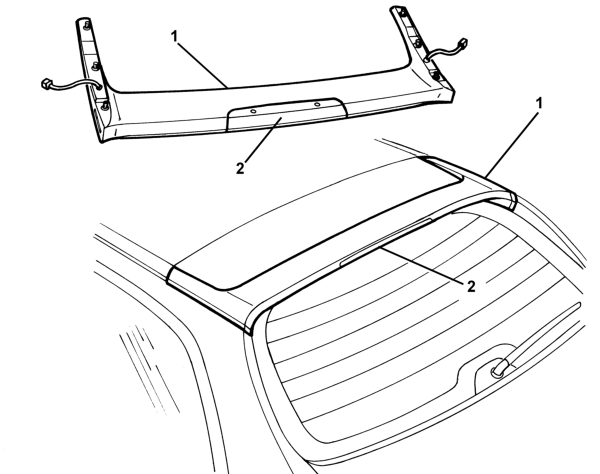

REAR SPOILER

REAR SPOILER

The car is fitted with an upper rear spoiler made of a particular heat-setting plastic (BMC-LPR 20) which ensures dimensional constancy and resistance to external agents. The profile of the spoiler is aimed at improving the aerodynamics of the car and

limiting air turbulence at the various speeds.

The rear of the spoiler houses the LED type additional stop light (the individual LEDs cannot be replaced).

Inside the spoiler, there is the radio aerial. The aerial cannot be replaced by itself; the whole spoiler has to be replaced (6 nuts from inside the car).
