DRAINAGE CHANNEL - R R

Operation 7030B40 · SLIDING ROOF

Removing

For the left and right sides

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

For the left and right sides

Op. 7040L44 REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

For the left and right sides

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

Op. 7050A19 REAR SEAT BACKREST - R.R

For the left and right sides.

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF

For the left and right sides.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Remove all the handles.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

For the left and right sides.

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

For the left side.

Op. 7010A34 REAR SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7040L71 BOX ON TUNNEL REAR COATING - R R

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L20 TUNNEL COVER - R.R

Op. 7040L23 TRIM ON TUNNEL COVER - R.R.

For the left and right sides

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040L74 TUNNEL TRIM SUPPORT BRACKET/MOUNT R R

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 7030B10 SLIDING ROOF (ASSEMBLY) - R+R WITH ROOF PANEL REMOVED

1. Release the channel retainers on both sides.

2. Keep the channel.

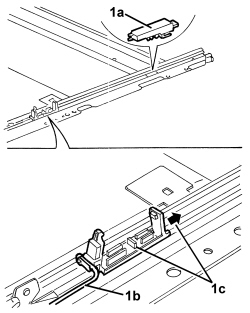

1. If necessary, release the end of travel block (1a) from its housing, then release the channel drive rod (1b) and release the channel pad (1c) from the guide.

Refitting

- Check that the channel is not damaged.

- If removed, insert the channel pad in the guide, then attach the drive rod for the channel and fit the end of travel block in place.

- Position the channel and attach the retainers on both sides.

Op. 7030B10 SLIDING ROOF (ASSEMBLY) - R+R WITH ROOF PANEL REMOVED

Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R

Op. 7040L74 TUNNEL TRIM SUPPORT BRACKET/MOUNT R R

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040L23 TRIM ON TUNNEL COVER - R.R.

Op. 7040L20 TUNNEL COVER - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 7040L71 BOX ON TUNNEL REAR COATING - R R

Op. 7010A34 REAR SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7050A19 REAR SEAT BACKREST - R.R

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040L44 REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.
