SLIDING ROOF SPOILER - R+R

Operation 7030B42 · SLIDING ROOF

Removing

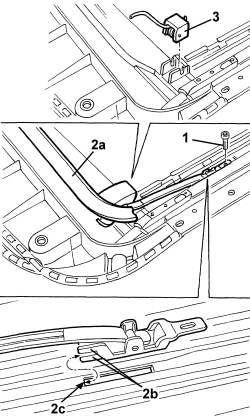

- Retract the transparent panel until the spoiler fastening bolt (1) can be accessed.

1. Undo the spoiler retaining bolt on both sides.

2. Remove the spoiler (2a) releasing the side retainers (2b) from the seats (2c).

3. If necessary, release the spring and support.

Refitting

- Check that the spoiler is not damaged.

- If removed, fit the spring and support.

- Position the spoiler, fitting the retainers in their housings, then tighten the bolts.

- Check that the spoiler is working by activating the sun roof, opening and closing it.
