Wiring diagrams and electrical functionsFog lights - component location

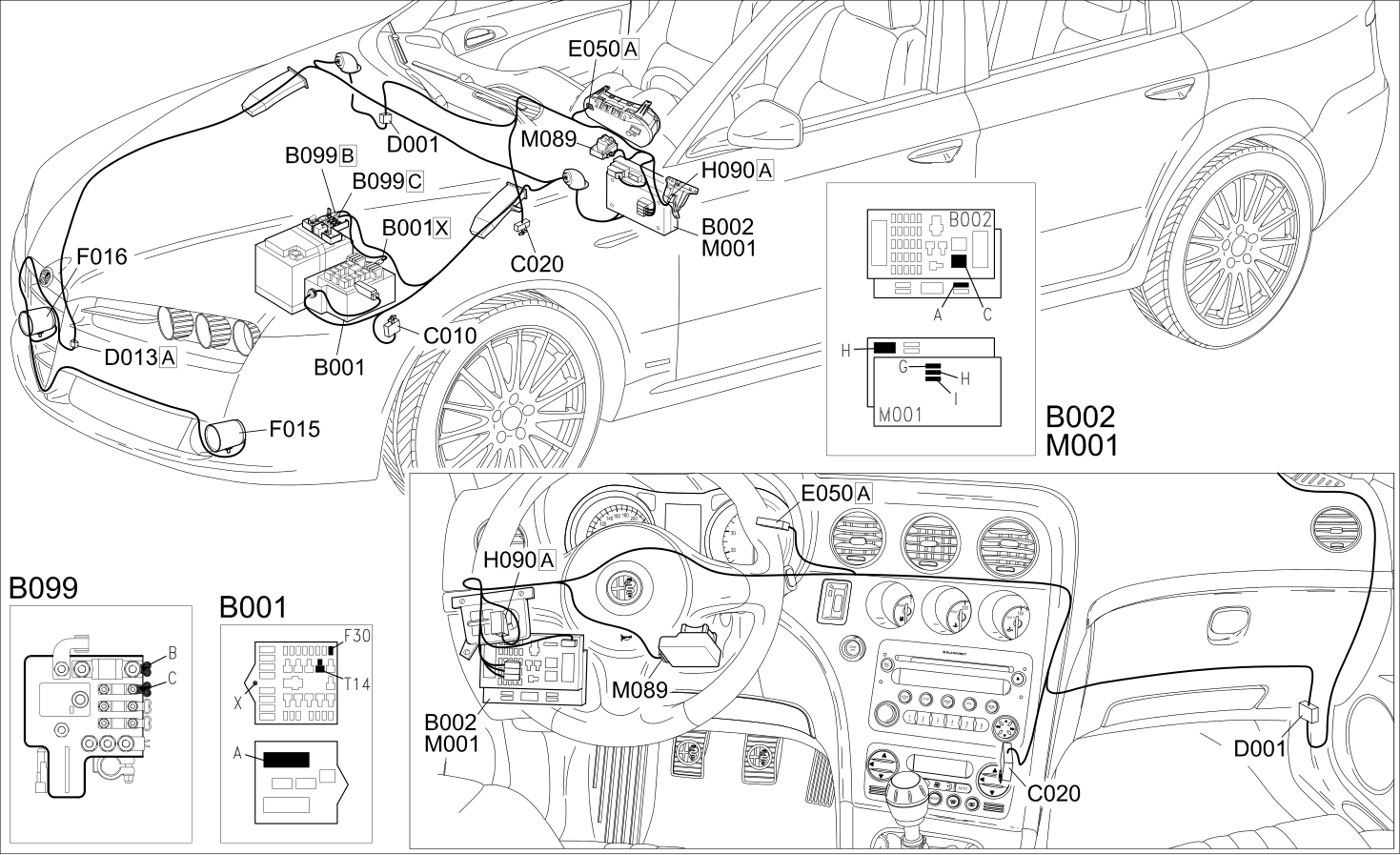

FOG LIGHTS - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C010	LEFT FRONT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D013	FRONT/BUMPER COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F015	LEFT FOG LAMP	Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R
F016	RIGHT FOG LAMP	Op. 5540D10 L/H OR R/H FOG LIGHT (ONE) - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
