Reversing lights - wiring diagram
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Exterior lighting › Reversing lights - wiring diagram
Wiring diagrams and electrical functionsReversing lights - wiring diagram

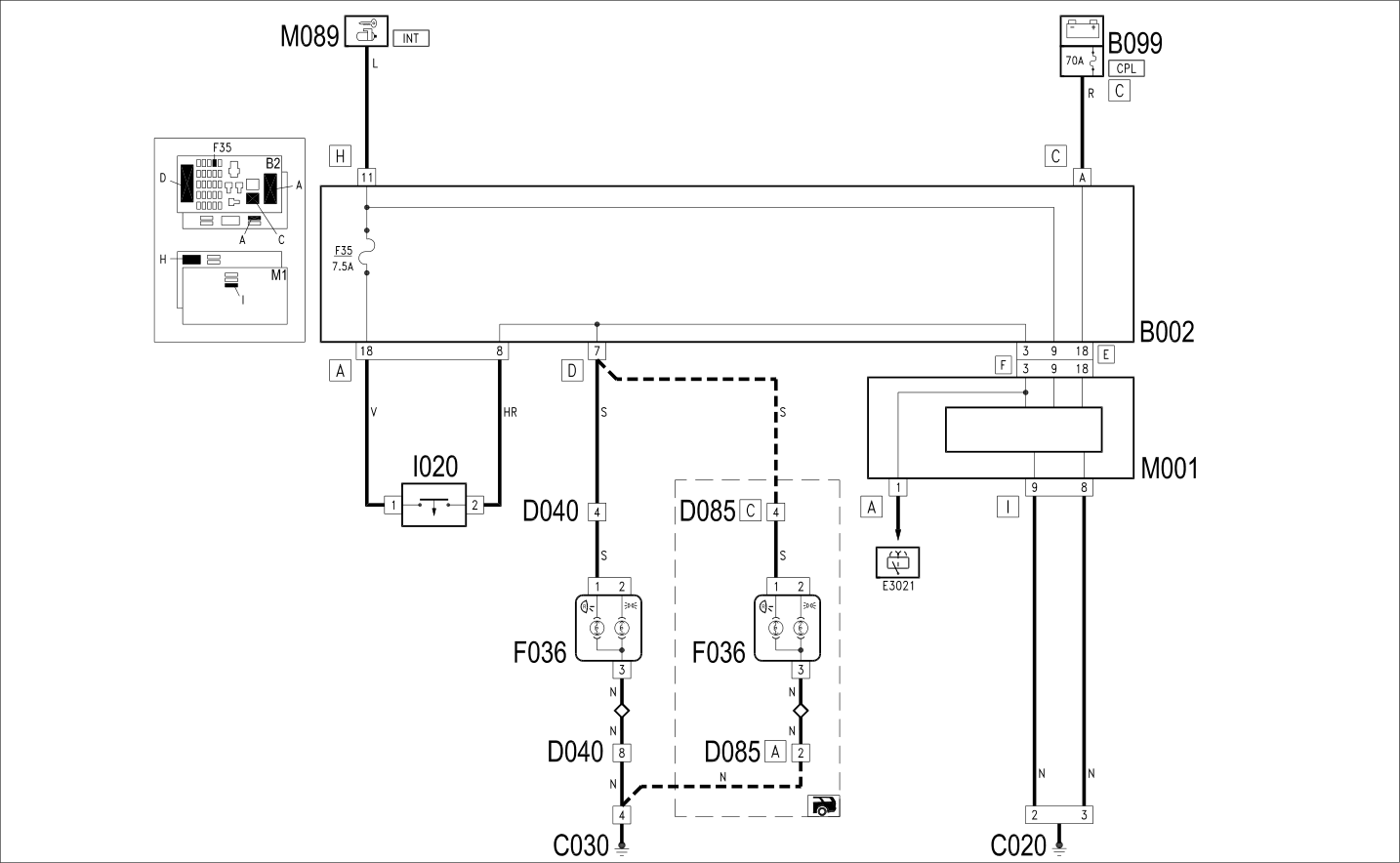

REVERSING LIGHTS - WIRING DIAGRAM
WIRING DIAGRAM
COMPONENTS
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXIFUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C030 | LEFT REAR EARTH | |
| D040 | REAR/BOOT COUPLING | |
| D085 | REAR/TAILGATE COUPLING | |
| F035 | LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID) | Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R. |
| I020 | REVERSING LIGHTS SWITCH | Op. 5550D22 REVERSING LIGHT SWITCH - R+R |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |

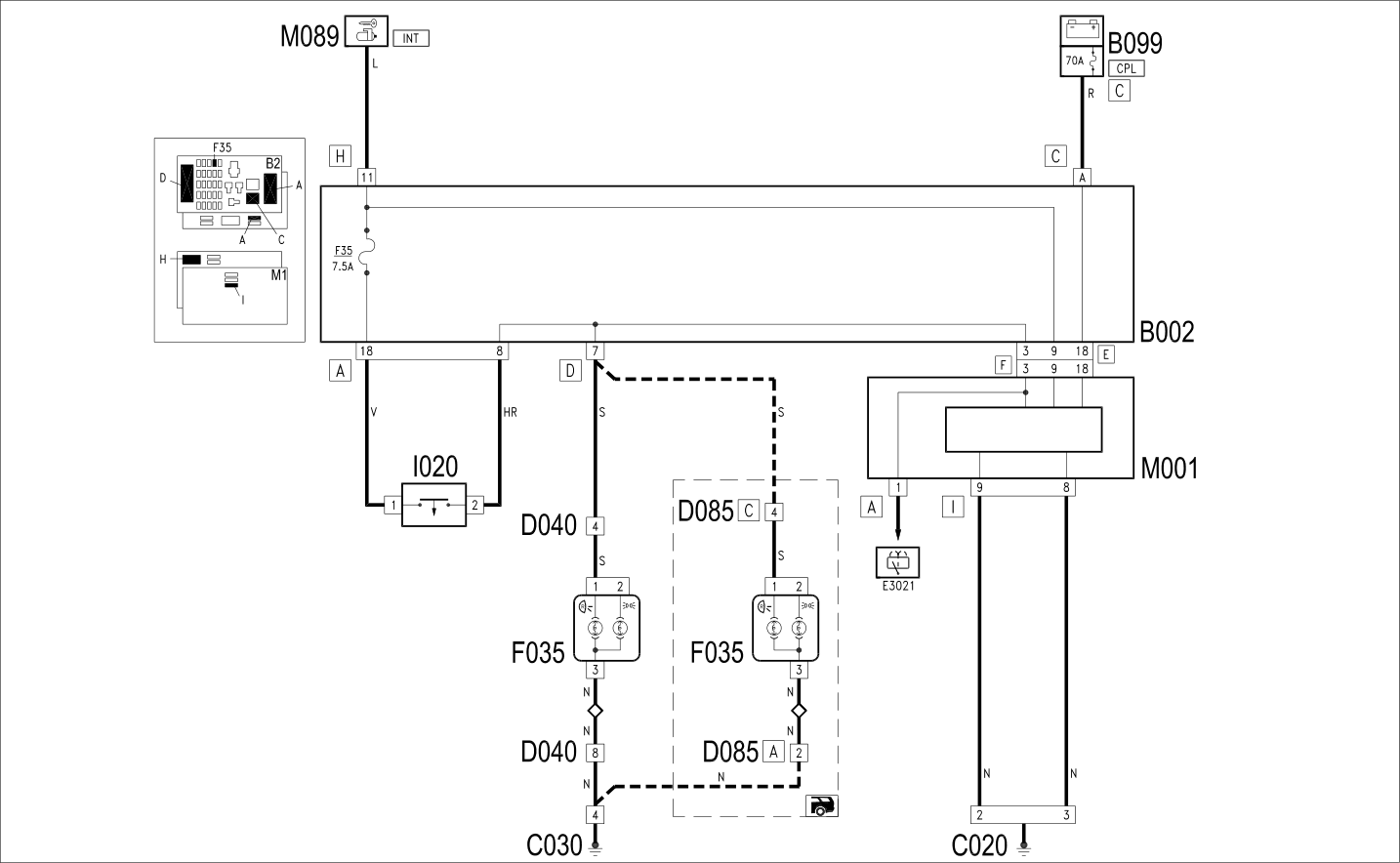

WIRING DIAGRAM
COMPONENTS
| B001 | JUNCTION UNIT | Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R. |
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXIFUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C030 | LEFT REAR EARTH | |
| D040 | REAR/BOOT COUPLING | |
| D085 | REAR/TAILGATE COUPLING | |
| F035 | LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID) | Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R. |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M055 | AUTOMATIC TRANSMISSION CONTROL UNIT | |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |

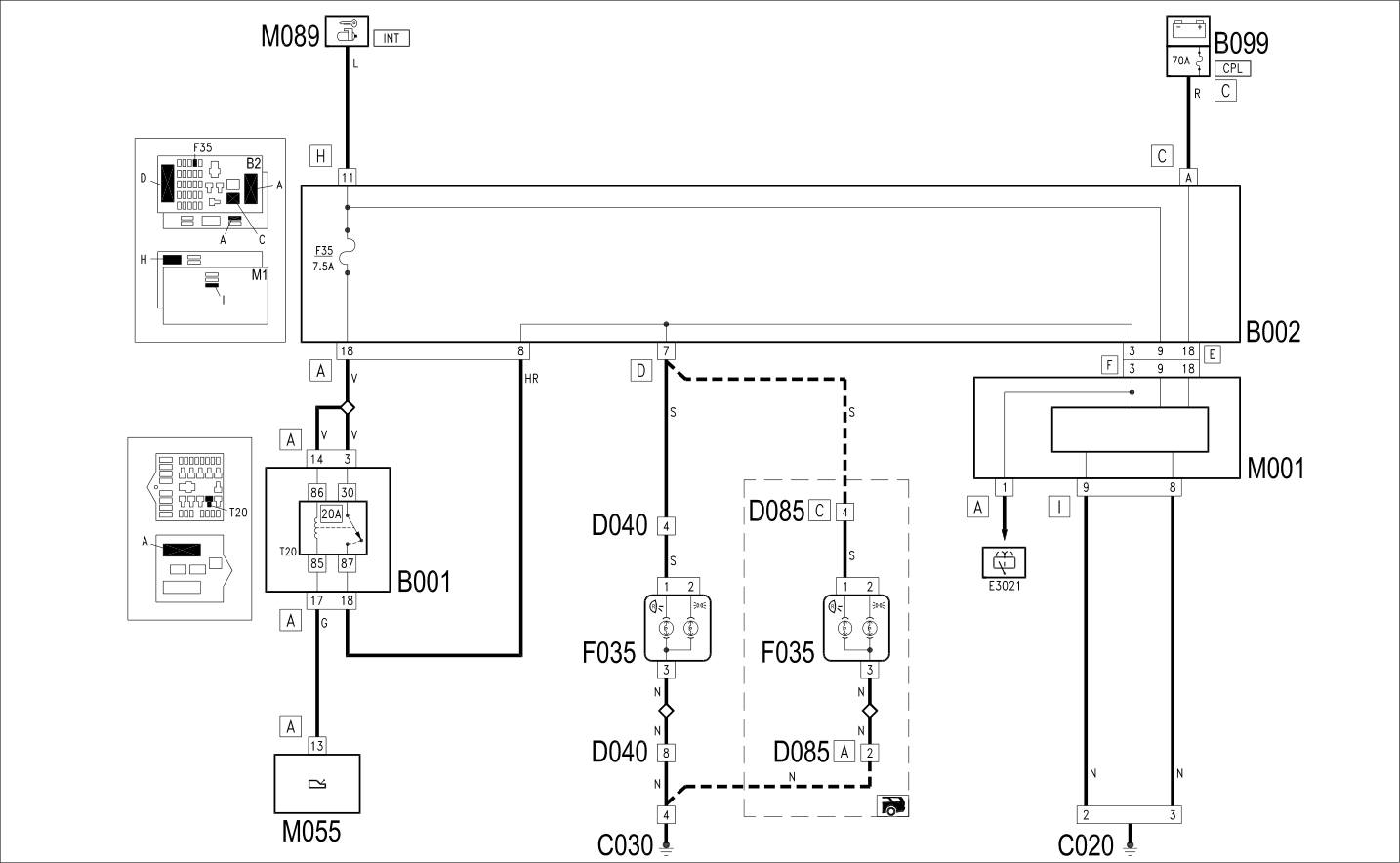

WIRING DIAGRAM
COMPONENTS
| B001 | JUNCTION UNIT | Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R. |
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXIFUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C030 | LEFT REAR EARTH | |
| D040 | REAR/BOOT COUPLING | |
| D085 | REAR/TAILGATE COUPLING | |
| F035 | LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID) | Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R. |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M055 | AUTOMATIC TRANSMISSION CONTROL UNIT | |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |

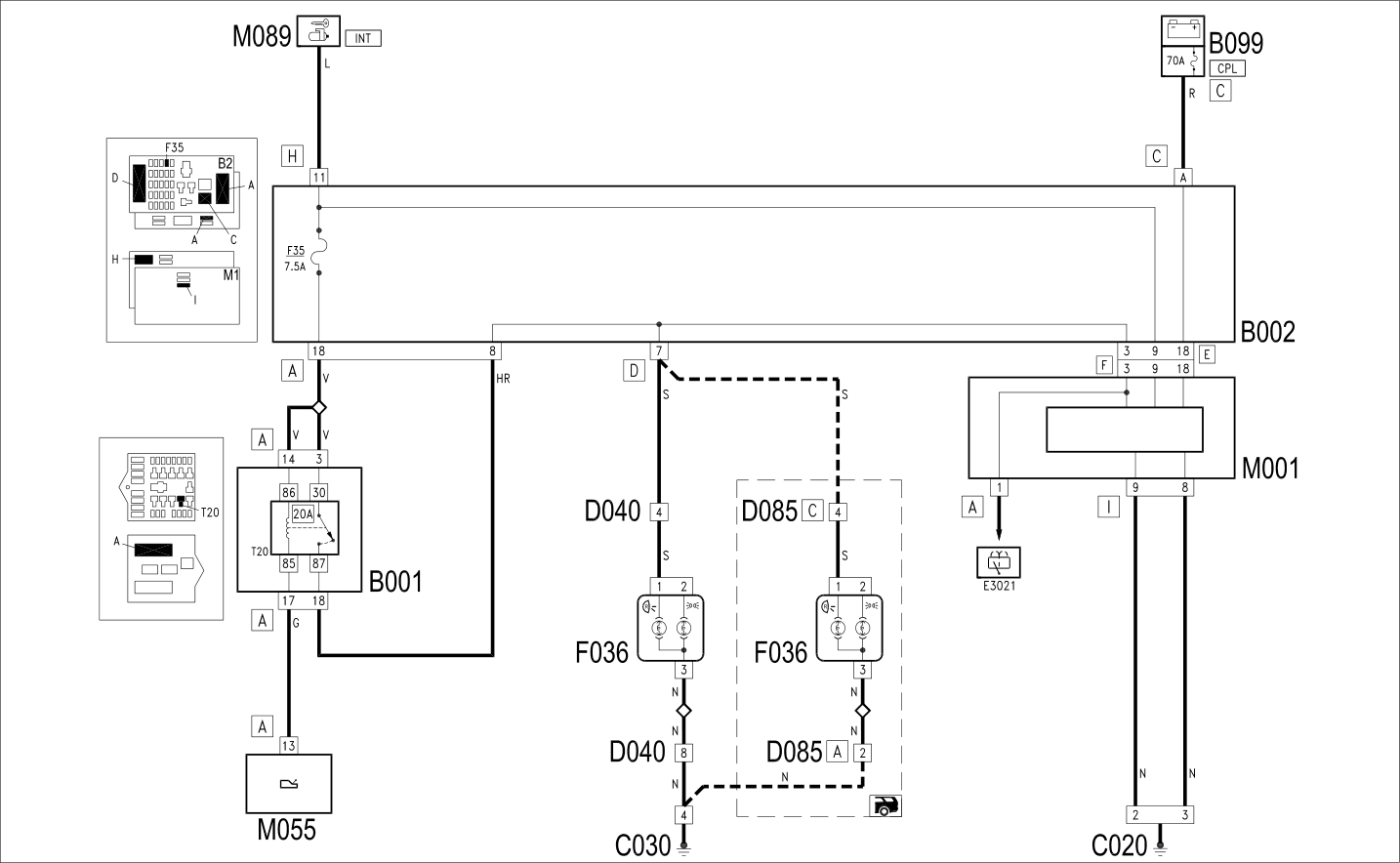

WIRING DIAGRAM
COMPONENTS
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXIFUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C030 | LEFT REAR EARTH | |
| D040 | REAR/BOOT COUPLING | |
| D085 | REAR/TAILGATE COUPLING | |
| F036 | RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID) | Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R. |
| I020 | REVERSING LIGHTS SWITCH | Op. 5550D22 REVERSING LIGHT SWITCH - R+R |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |
