Reversing lights - component location

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Exterior lighting › Reversing lights - component location

Wiring diagrams and electrical functionsReversing lights - component location

REVERSING LIGHTS - COMPONENT LOCATION

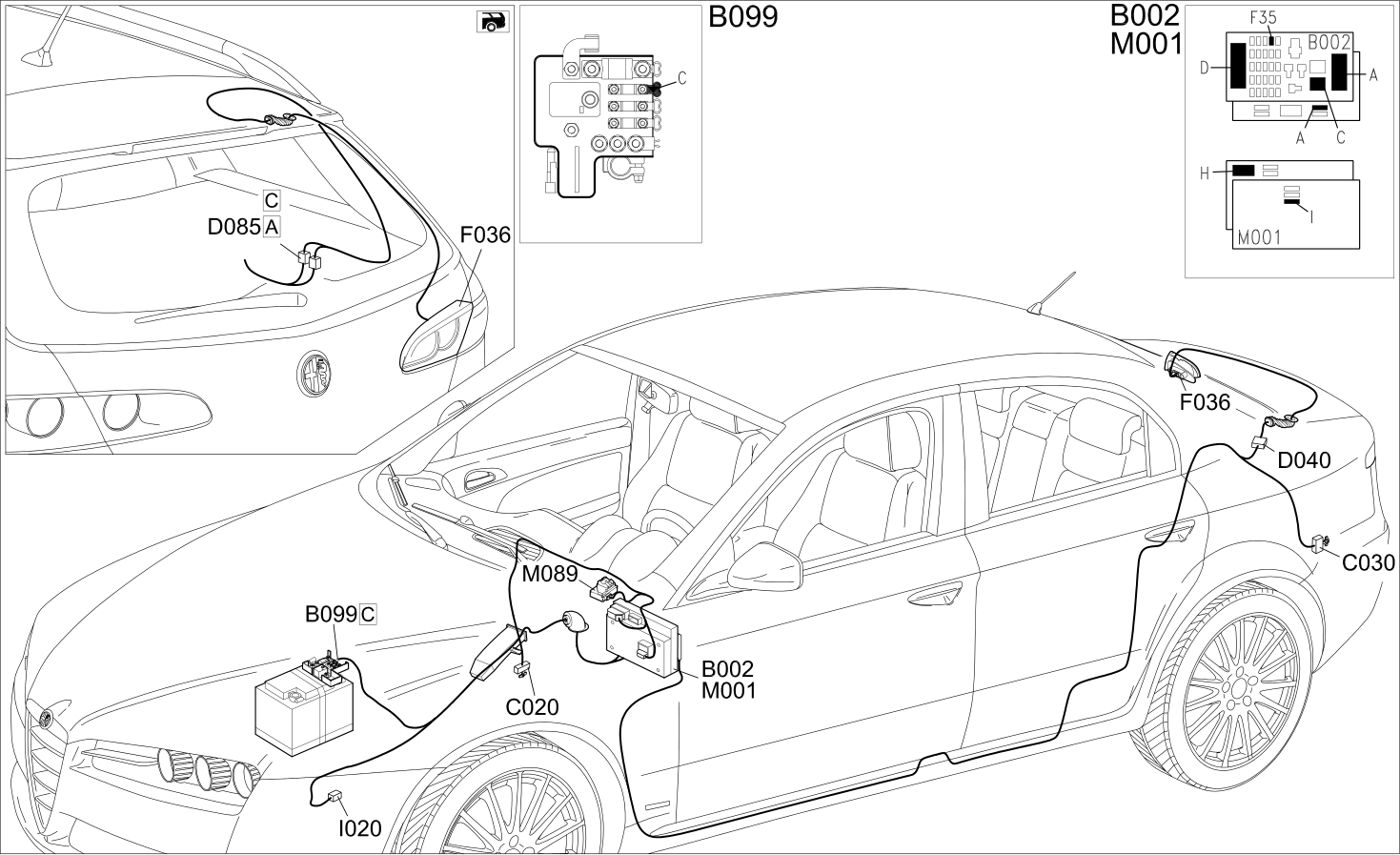

Right hand drive

COMPONENT LOCATION

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D040	REAR/BOOT COUPLING
D085	REAR/TAILGATE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R

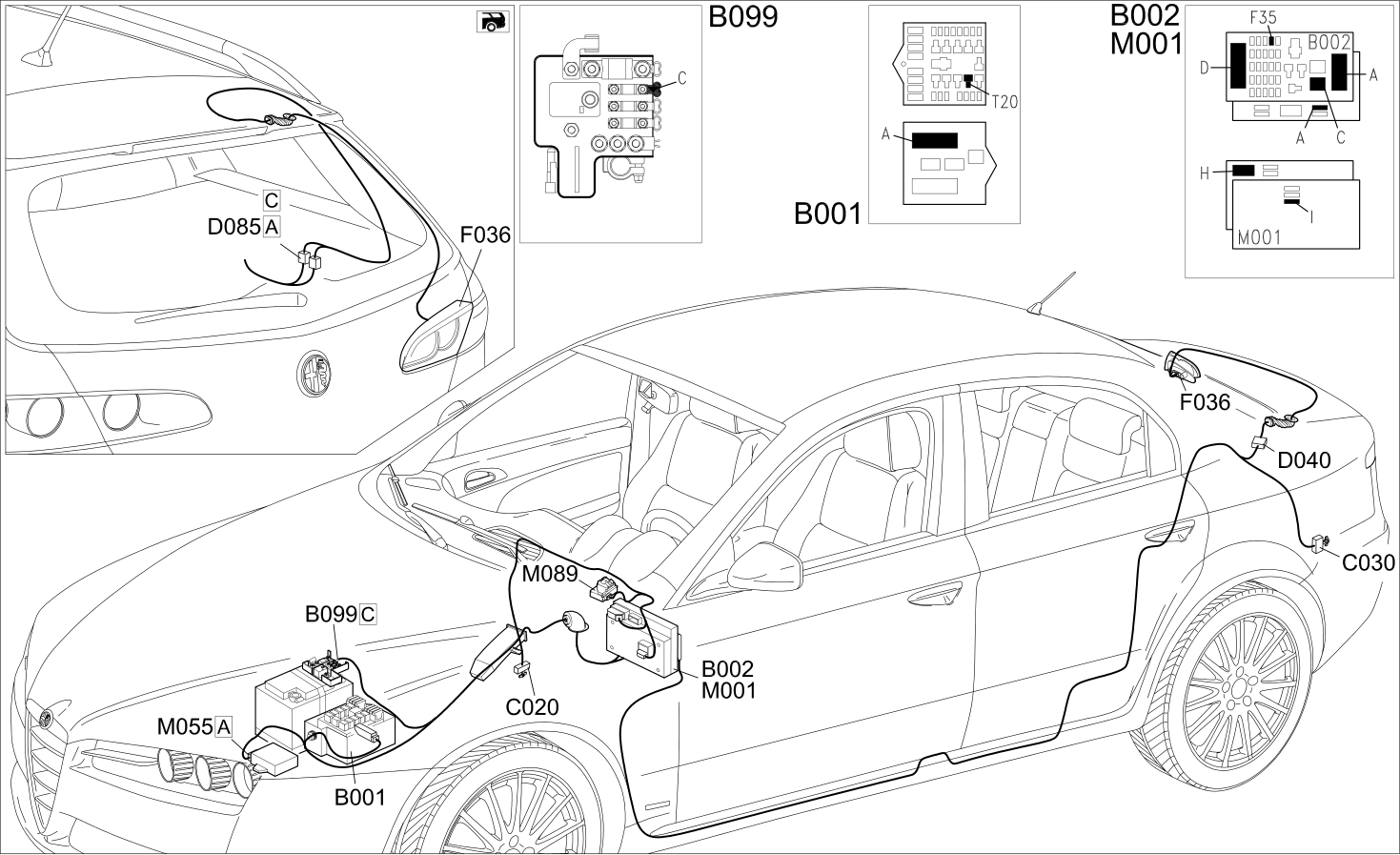

1.9 JTD 16V, 2.4 JTD 20V · Automatic transmission

COMPONENT LOCATION

B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D040	REAR/BOOT COUPLING
D085	REAR/TAILGATE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M055	AUTOMATIC TRANSMISSION CONTROL UNIT
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R

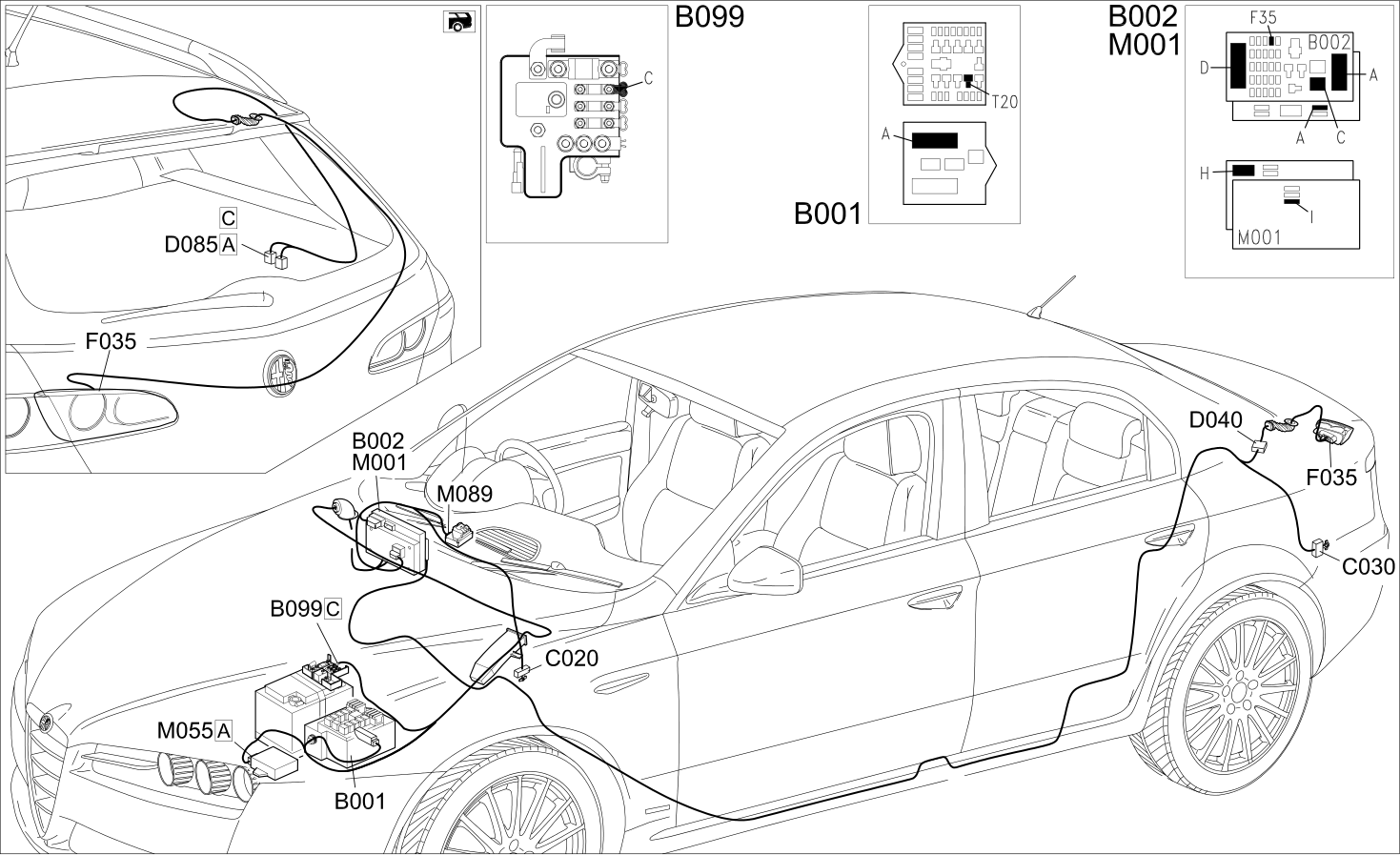

1.9 JTD 16V, 2.4 JTD 20V · Automatic transmission, Right hand drive

COMPONENT LOCATION

B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D040	REAR/BOOT COUPLING
D085	REAR/TAILGATE COUPLING
F035	LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M055	AUTOMATIC TRANSMISSION CONTROL UNIT
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R

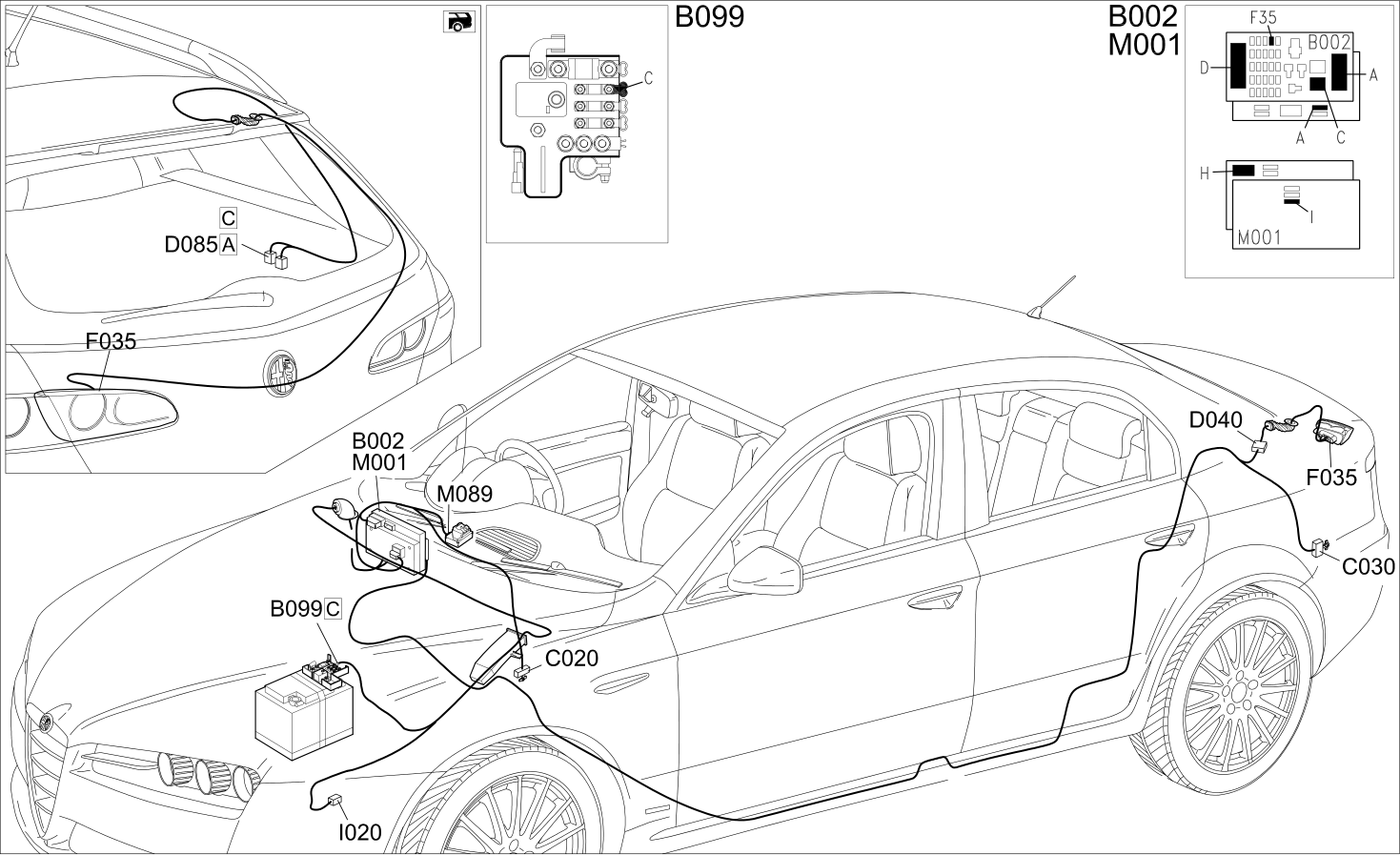

All versions

COMPONENT LOCATION

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D040	REAR/BOOT COUPLING
D085	REAR/TAILGATE COUPLING
F036	RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	Op. 5540A68 INTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
