Left cylinder head injector set - r.r.

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Petrol injection system › Left cylinder head injector set - r.r.

EngineLeft cylinder head injector set - r.r.

LEFT CYLINDER HEAD INJECTOR SET - R.R.

Operation 1056F66 · PETROL DIRECT INJECTION SYSTEM

3.2 JTS

Removing

Op. 1056F74 LOW PRESSURE PIPE TO FUEL PRESSURE PUMP R R

Op. 1056F76 HIGH PRESSURE PIPE FROM PRESSURE PUMP TO SINGLE FUEL MANIFOLD PIPE R R

Op. 1072B50 AIR CHAMBER - R.R.

Op. 1056F61 LEFT CYLINDER HEAD FUEL MANIFOLD PIPE - R.R.

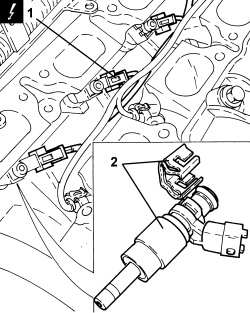

1. Disconnect the electrical connections for the injectors.

	Description	Connector
1	Injector	See N070 INJECTOR

2. Remove the injectors complete with retaining clips and O-rings.

Refitting

- Place the injectors for the left cylinder head in their seats complete with retaining clips and lubricate the O-rings with engine oil.

- Connect the electrical connections for the injectors.

Op. 1056F61 LEFT CYLINDER HEAD FUEL MANIFOLD PIPE - R.R.

Op. 1072B50 AIR CHAMBER - R.R.

Op. 1056F76 HIGH PRESSURE PIPE FROM PRESSURE PUMP TO SINGLE FUEL MANIFOLD PIPE R R

Op. 1056F74 LOW PRESSURE PIPE TO FUEL PRESSURE PUMP R R

08 Engine
