THRUST BEARING LINKAGE - R + R WITH GEARBOX REMOVED

Operation 1820A26 · CLUTCH RELEASE MECHANICAL CONTROL

3.2 V6

Removing

1. Remove the circlip (1a) and the lever (1b).

2. Remove the outer non-slip bush.

3. Remove the thrust control linkage.

4. Remove the inner non-slip bush.

Refitting

Place the inner non-slip bush back in its housing.

Place the thrust control linkage back in its housing.

Place the outer non-slip bush back in its housing.

Place the lever back in its housing and secure it using the circlip.

1.9 JTD 16V

Removing

1. Remove the circlip (1a) and the lever (1b).

2. Remove the outer non-slip bush.

3. Remove the thrust control linkage.

4. Remove the inner non-slip bush.

Refitting

Place the inner non-slip bush back in its housing.

Place the thrust control linkage back in its housing.

Place the outer non-slip bush back in its housing.

Place the lever back in its housing and secure it using the circlip.

2.0 JTS

Removing

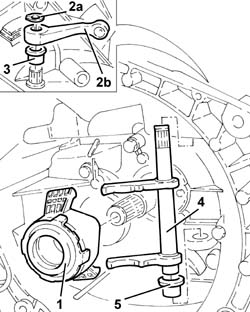

• Remove the thrust bearing.
• Remove the circlip (2a) and the lever (2b).
• Remove the outer non-slip bush.
• Remove the thrust control linkage.
• Remove the inner non-slip bush.

Refitting

• Place the inner non-slip bush back in its housing.
• Place the thrust control linkage back in its housing.
• Place the outer non-slip bush back in its housing.
• Place the lever back in its housing and secure it using the circlip.
• Place the thrust bearing back in its housing.
