AIR CONDITIONER - WIRING DIAGRAM

1.8 T.SPARK, 2.0 JTS, 1.9 JTD 16V · Manual Air Conditioning

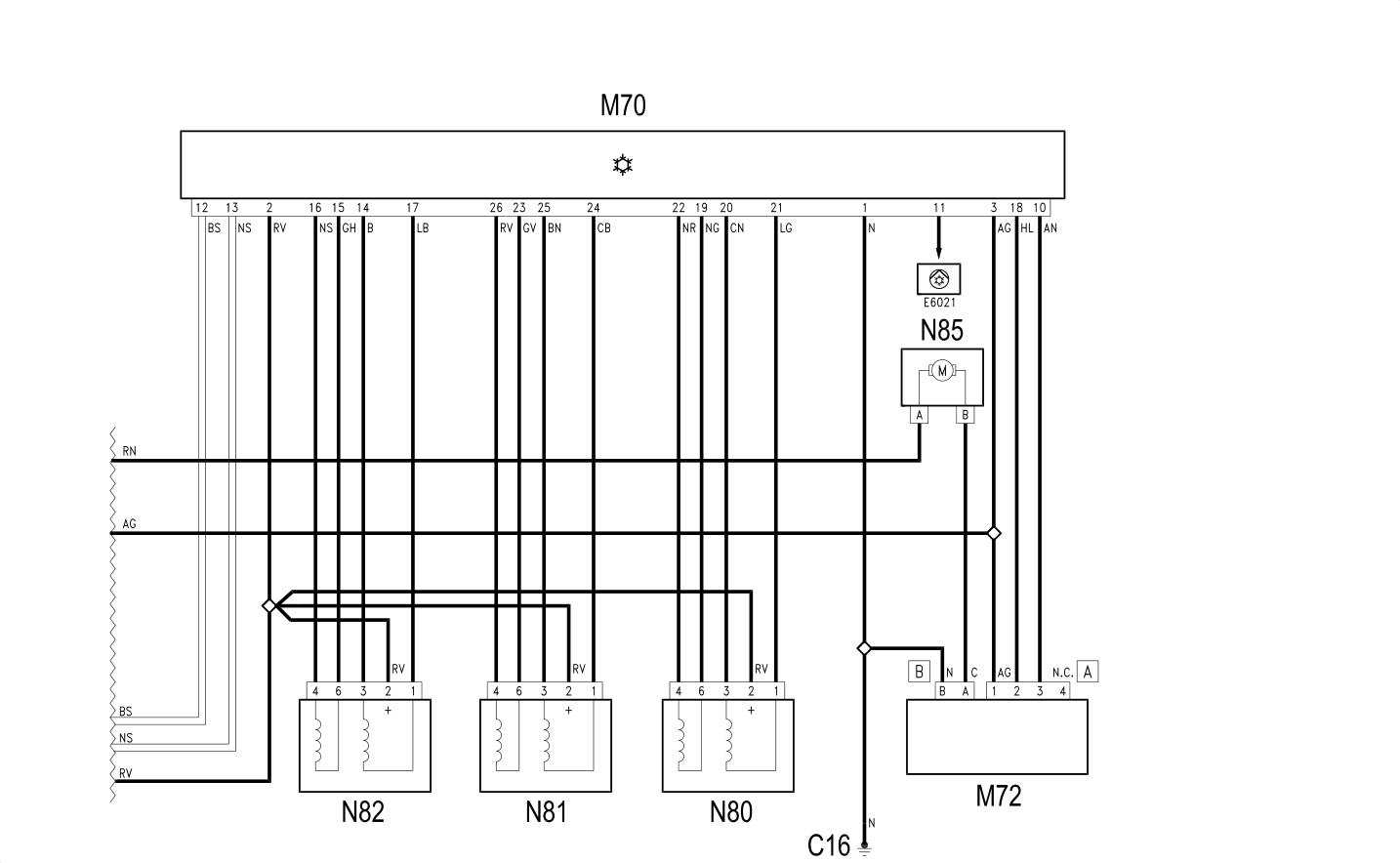

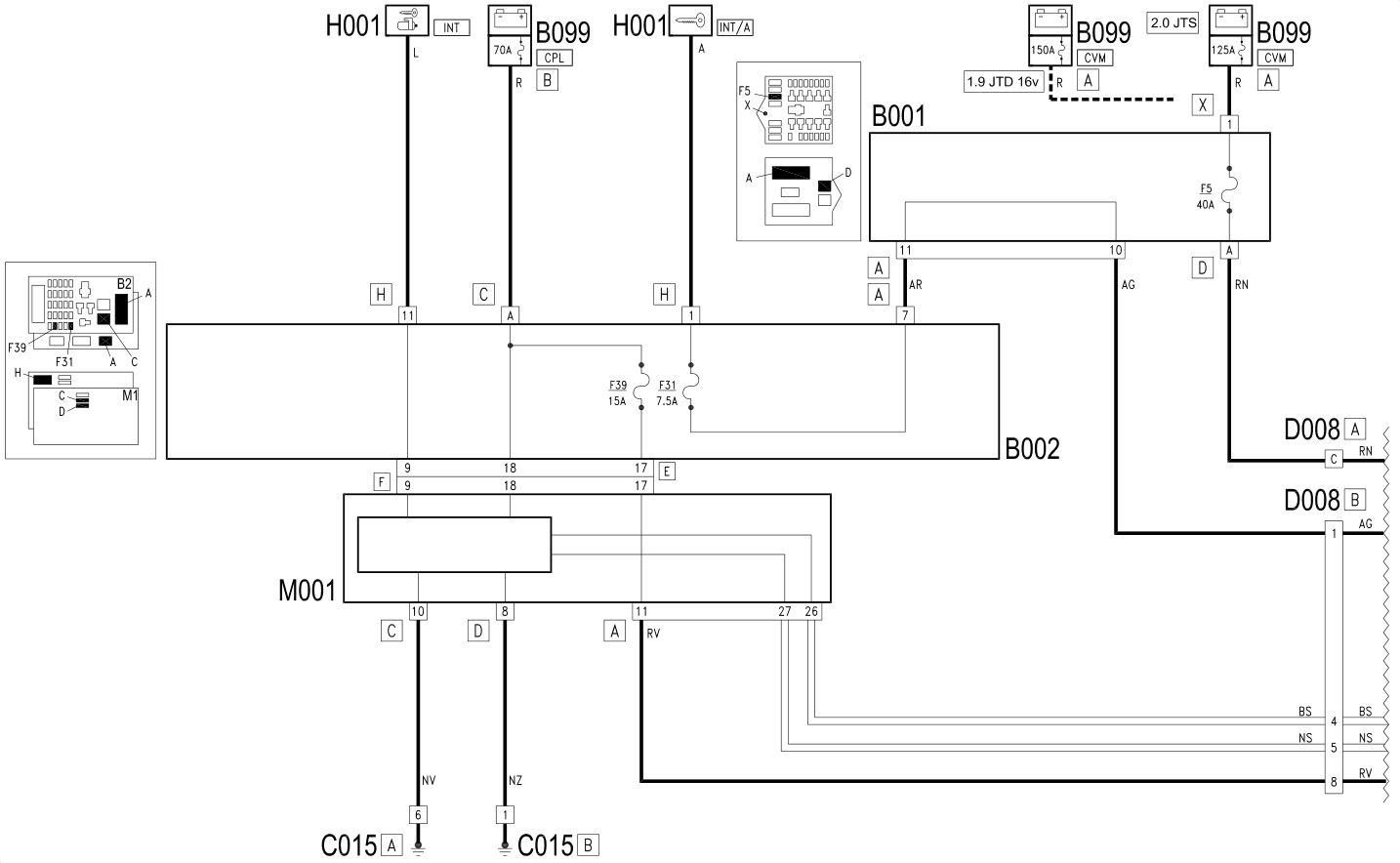

Wiring diagram

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	Junction unit under dashboard	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH
C15	FACIA EARTH, DRIVER''S SIDE
C16	AIR CONDITIONING EARTH
C38	EARTH ON TUNNEL
D6	REAR / ENGINE COMPARTMENT JUNCTION
D8	FRONT/AIR CONDITIONING - HEATER COUPLING
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D97	SHORT CIRCUITING COUPLING
H44	ELECTRIC WINDOWS CONTROLS ASSEMBLY ON DRIVER''S DOOR	Op. 7005M FRONT ELECTRIC WINDOWS
K3	MISTING SENSOR
K64	EXHAUST GAS SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K87	TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K88	UPPER TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K88	UPPER TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K90	SOLAR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M70	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D AIR CONDITIONER CONTROLS
M72	FAN SPEED'' VARIATOR	Op. 5040C AIR CONDITIONER BOX AND COMPONENTS
N78	LEFT AIR MIXTURE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N79	RIGHT AIR MIXTURE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N80	AIR DISTRIBUTION FLAP ACTUATOR (MOTOR)
N80	AIR DISTRIBUTION FLAP ACTUATOR (MOTOR)	Op. 5040D AIR CONDITIONER CONTROLS
N81	MIXED AIR FLAP ACTUATOR (MOTOR)
N82	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N85	PASSENGER COMPARTMENT VENTILATION FAN
P60	LEFT DOOR MIRROR	Op. 7005R FRONT DOOR MIRRORS
