Wiring diagrams and electrical functionsHeater - wiring diagram

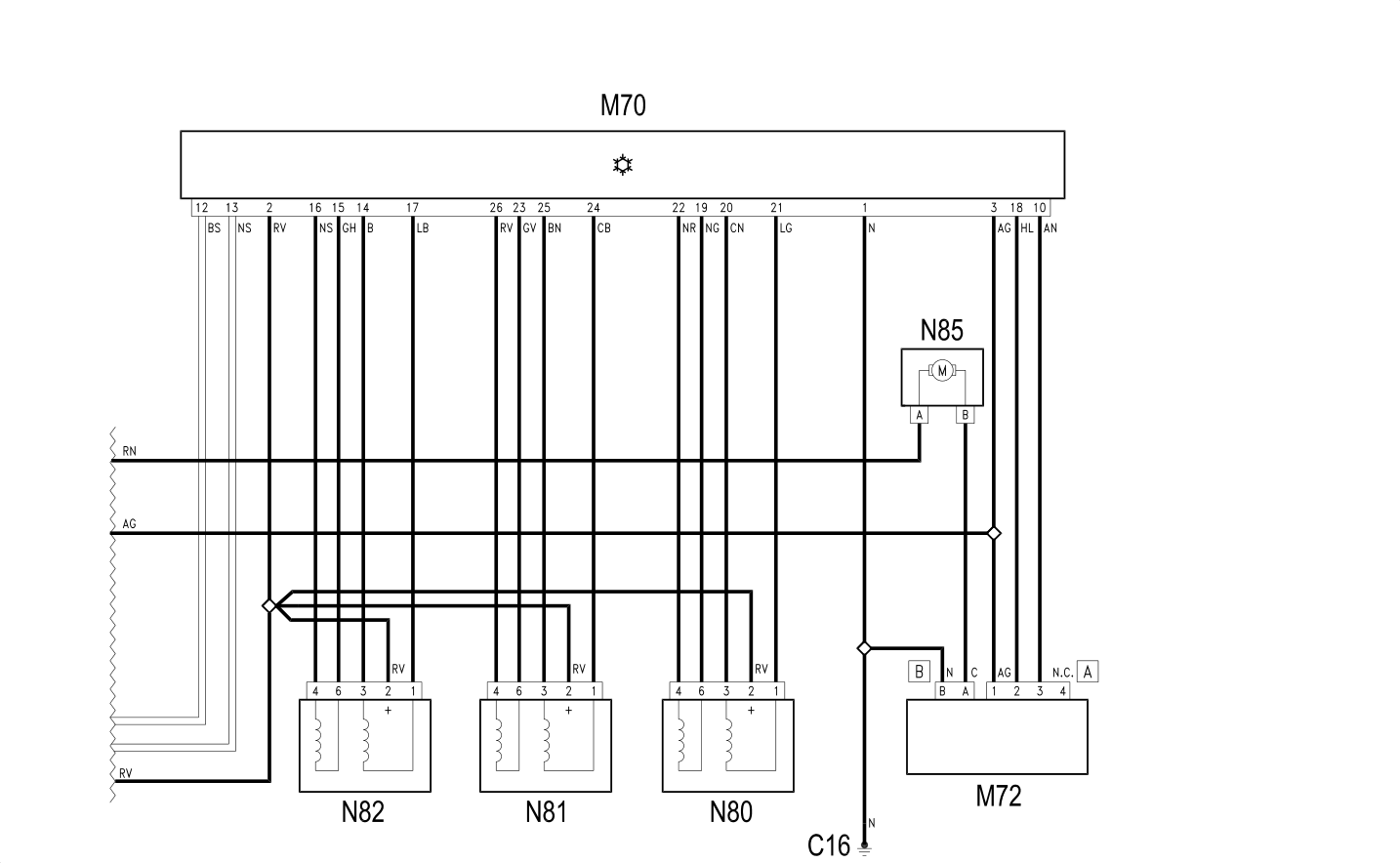

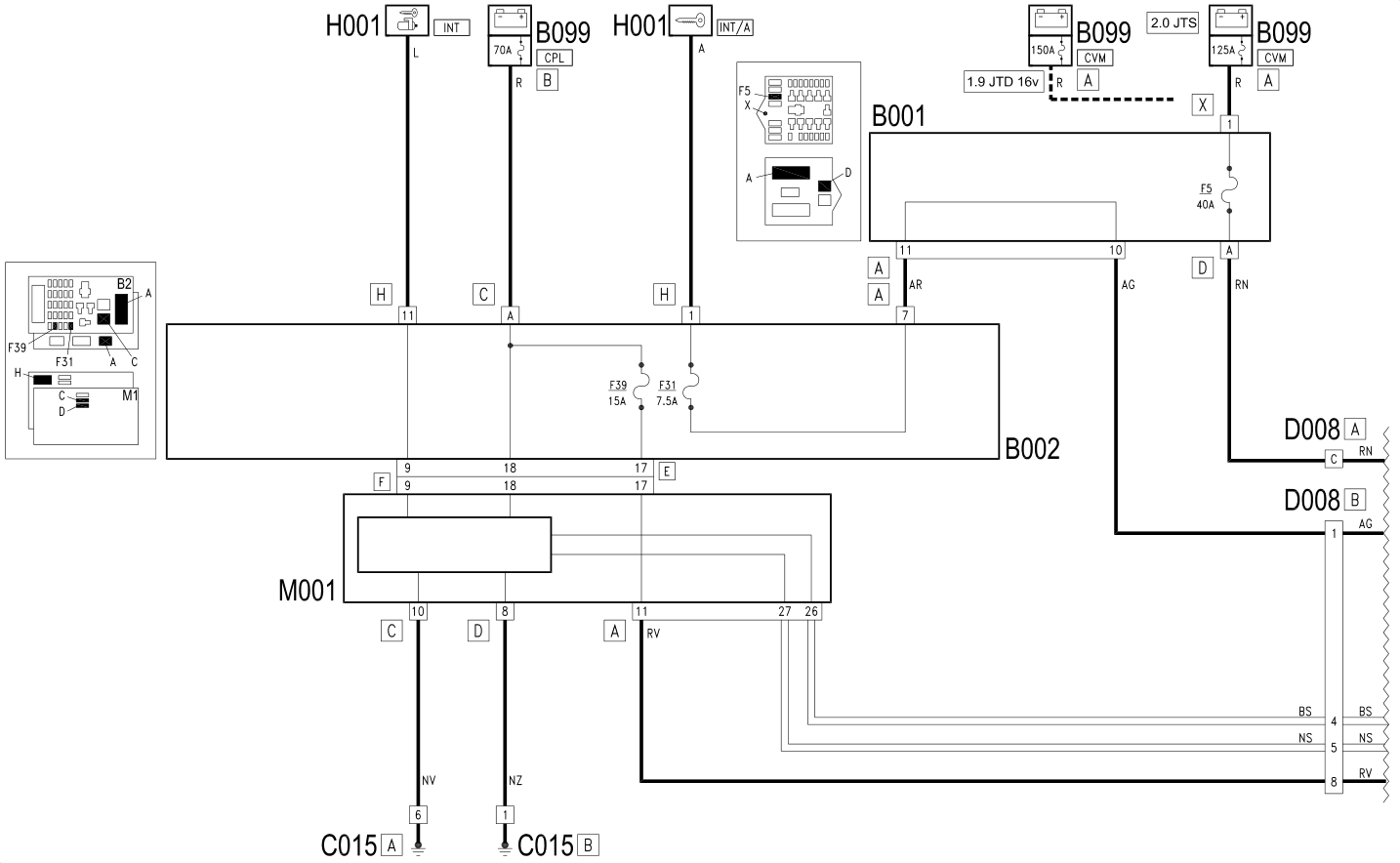

HEATER - WIRING DIAGRAM
Wiring diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B1 | JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B002 | Junction unit under dashboard | Op. 5505A MULTI-FUNCTION COMPONENTS |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| C16 | AIR CONDITIONING EARTH | |
| D8 | FRONT/AIR CONDITIONING - HEATER COUPLING | |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M70 | CLIMATE CONTROL SYSTEM CONTROL UNIT | Op. 5040D AIR CONDITIONER CONTROLS |
| M72 | FAN SPEED'' VARIATOR | Op. 5040C AIR CONDITIONER BOX AND COMPONENTS |
| N80 | AIR DISTRIBUTION FLAP ACTUATOR (MOTOR) | |
| N81 | MIXED AIR FLAP ACTUATOR (MOTOR) | |
| N82 | OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR | |
| N85 | PASSENGER COMPARTMENT VENTILATION FAN |
