Air conditioning - wiring diagram

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Climate control system › Air conditioning - wiring diagram

Wiring diagrams and electrical functionsAir conditioning - wiring diagram

AIR CONDITIONING - WIRING DIAGRAM

1.8 T.SPARK, 2.0 JTS, 1.9 JTD 16V · Two-zone climate control system

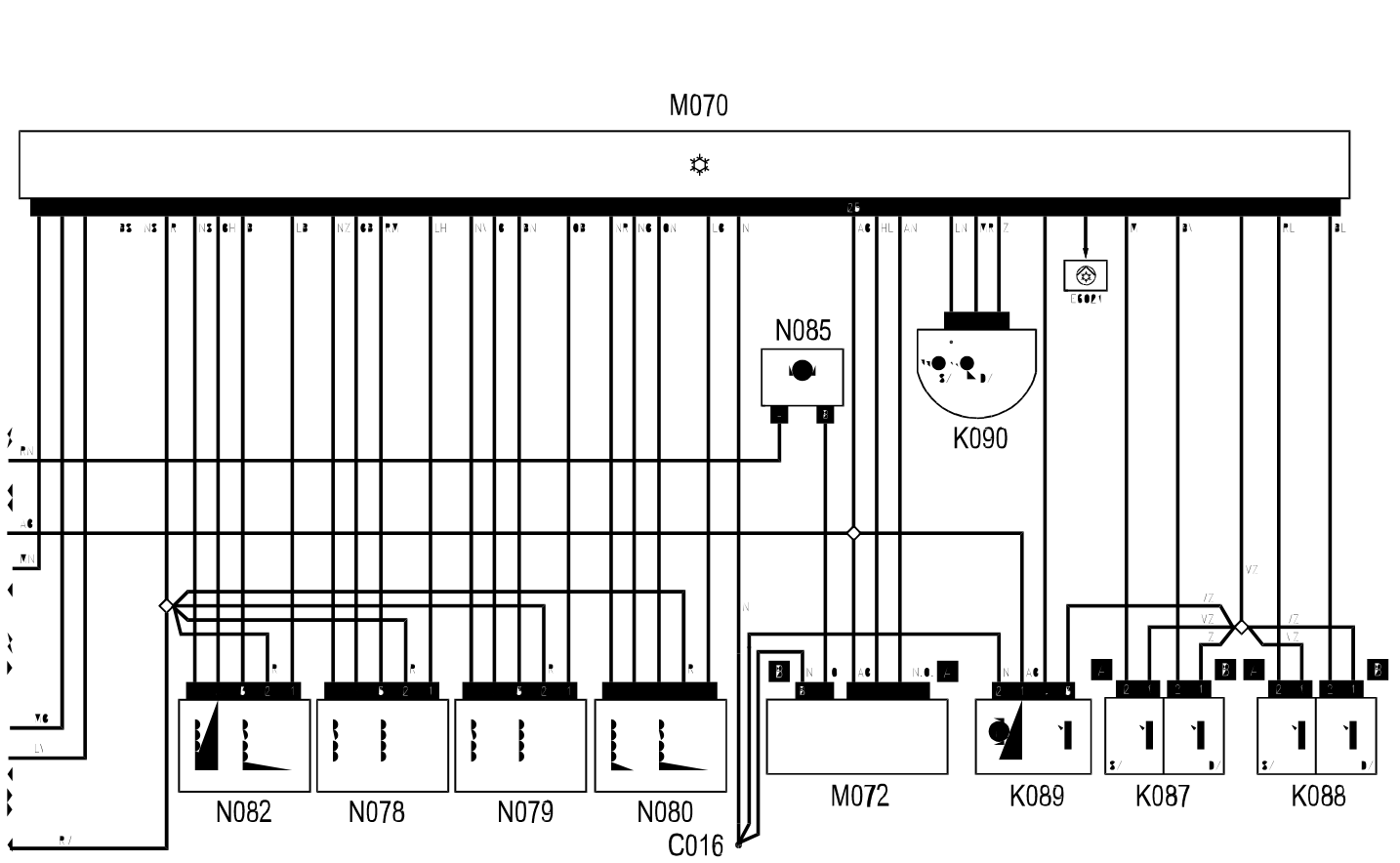

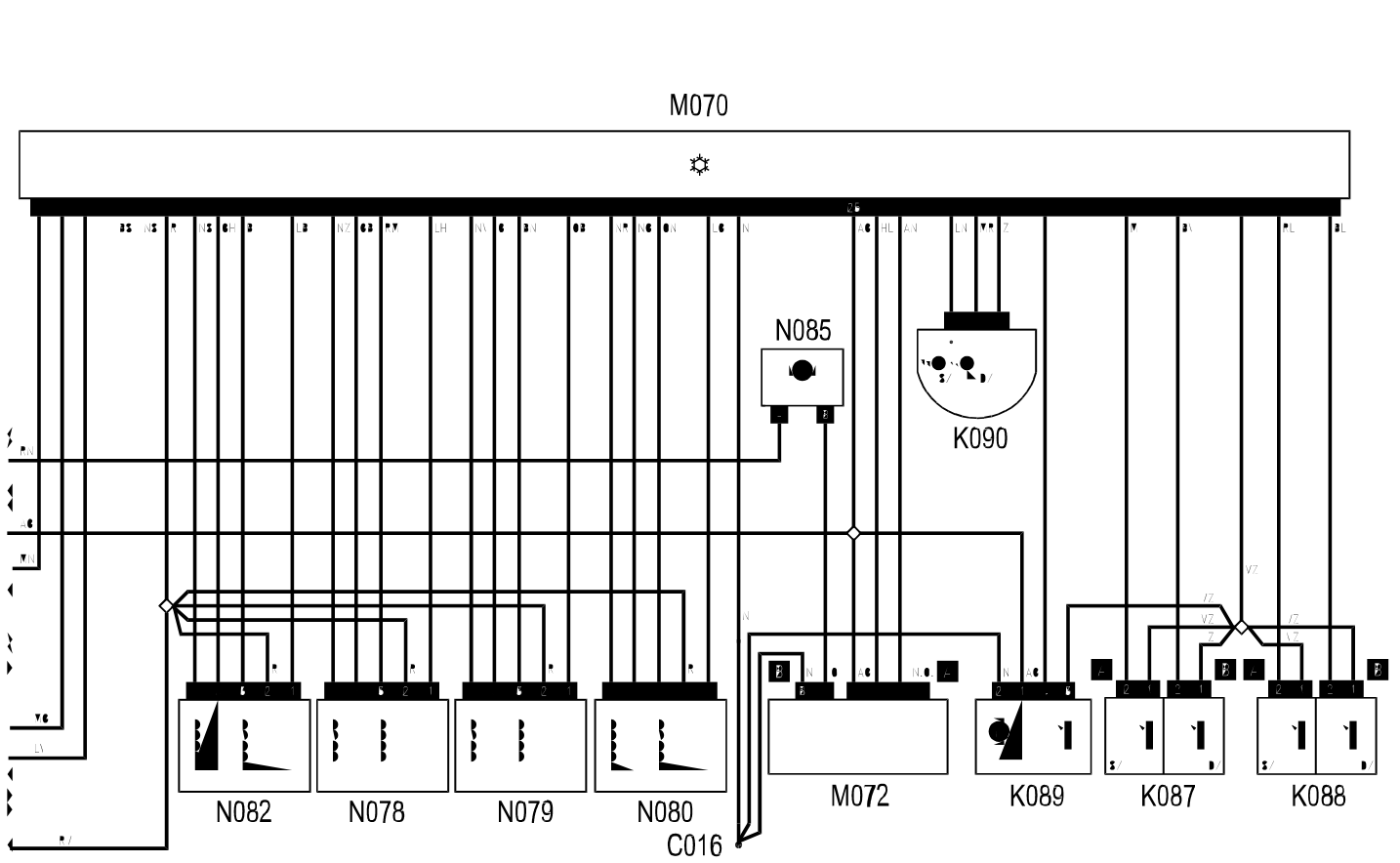

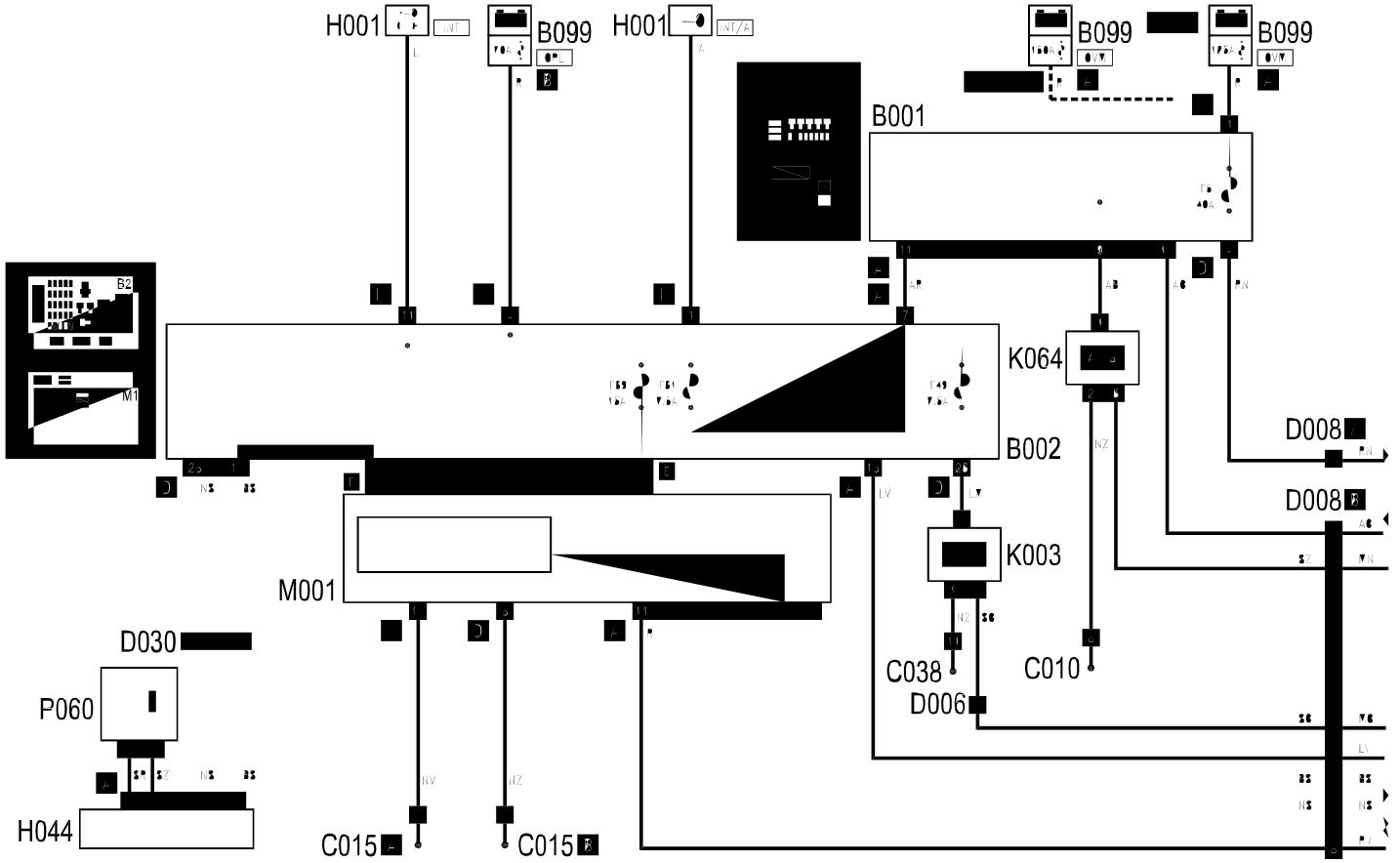

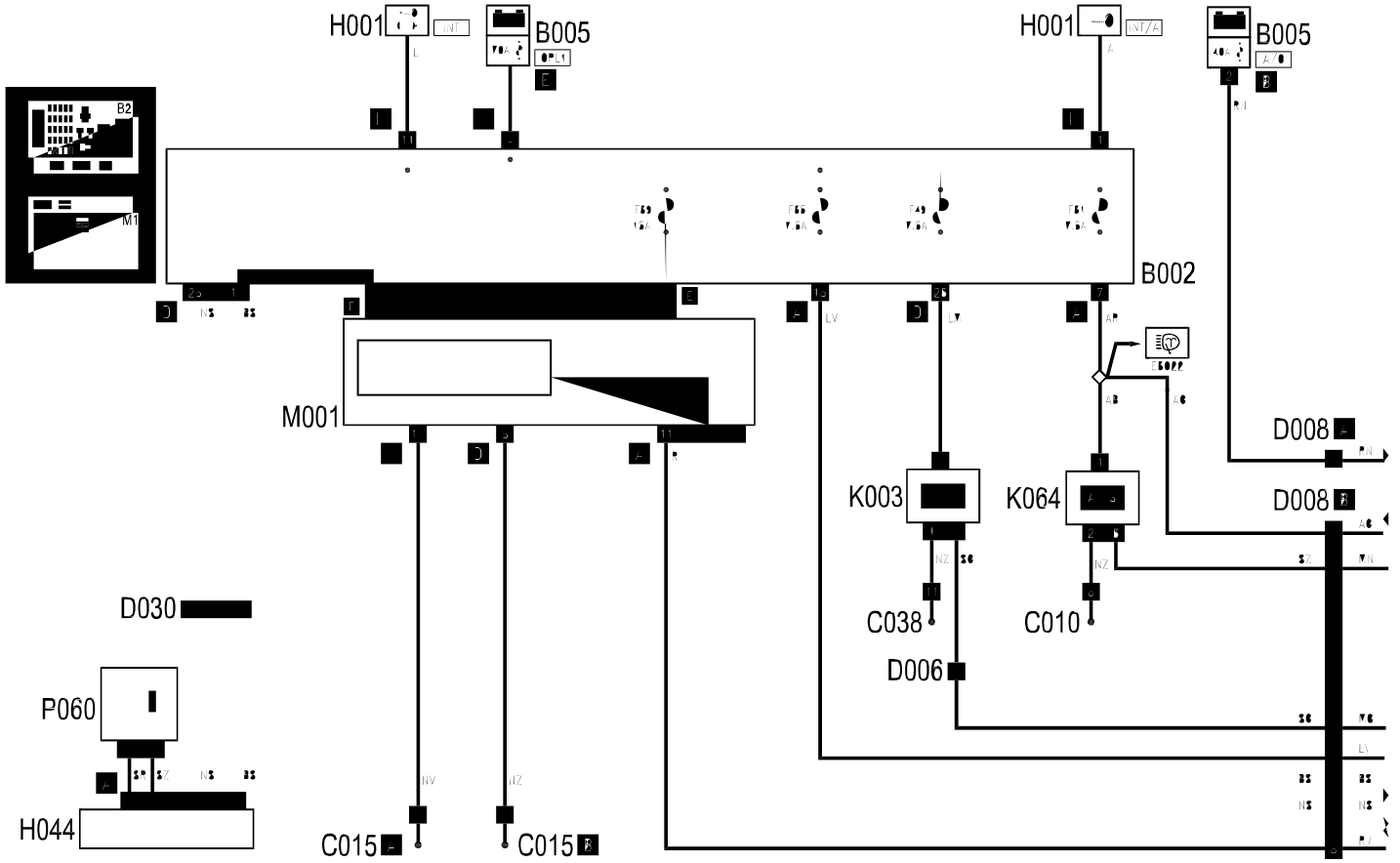

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH ( FRONT )
C15	FACIA EARTH, DRIVER''S SIDE
C16	AIR CONDITIONING EARTH ( CONNECTORS )
C38	EARTH ON TUNNEL
D6	REAR / ENGINE COMPARTMENT JUNCTION
D8	FRONT/AIR CONDITIONING - HEATER COUPLING
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D97	SHORT CIRCUITING COUPLING
H44	ELECTRIC WINDOWS CONTROLS ASSEMBLY ON DRIVER''S DOOR	Op. 7005M FRONT ELECTRIC WINDOWS
K3	MISTING SENSOR ( REAR )
K64	EXHAUST GAS SENSOR ( FRONT )	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K87	TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K88	UPPER TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K89	PASSENGER COMPARTMENT AIR TEMPERATURE SENSOR ( CONNECTORS )	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K90	SOLAR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M70	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D AIR CONDITIONER CONTROLS
M72	FAN SPEED'' VARIATOR	Op. 5040C AIR CONDITIONER BOX AND COMPONENTS
N78	LEFT AIR MIXTURE FLAP ACTUATOR ( CONNECTORS )	Op. 5040D AIR CONDITIONER CONTROLS
N79	RIGHT AIR MIXTURE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N80	AIR DISTRIBUTION FLAP ACTUATOR (MOTOR)	Op. 5040D AIR CONDITIONER CONTROLS
N82	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N85	PASSENGER COMPARTMENT VENTILATION FAN ( CONNECTORS )	Op. 5040C AIR CONDITIONER BOX AND COMPONENTS
P60	LEFT DOOR MIRROR	Op. 7005R FRONT DOOR MIRRORS

3.2 V6 · Two-zone climate control system

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH ( FRONT )
C15	FACIA EARTH, DRIVER''S SIDE
C16	AIR CONDITIONING EARTH ( CONNECTORS )
C38	EARTH ON TUNNEL
D6	REAR / ENGINE COMPARTMENT JUNCTION
D8	FRONT/AIR CONDITIONING - HEATER COUPLING
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D97	SHORT CIRCUITING COUPLING
H44	ELECTRIC WINDOWS CONTROLS ASSEMBLY ON DRIVER''S DOOR	Op. 7005M FRONT ELECTRIC WINDOWS
K3	MISTING SENSOR ( REAR )
K64	EXHAUST GAS SENSOR ( FRONT )	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K87	TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K88	UPPER TREATED AIR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K89	PASSENGER COMPARTMENT AIR TEMPERATURE SENSOR ( CONNECTORS )	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K90	SOLAR SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M70	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D AIR CONDITIONER CONTROLS
M72	FAN SPEED'' VARIATOR	Op. 5040C AIR CONDITIONER BOX AND COMPONENTS
N78	LEFT AIR MIXTURE FLAP ACTUATOR ( CONNECTORS )	Op. 5040D AIR CONDITIONER CONTROLS
N79	RIGHT AIR MIXTURE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N80	AIR DISTRIBUTION FLAP ACTUATOR (MOTOR)	Op. 5040D AIR CONDITIONER CONTROLS
N82	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D AIR CONDITIONER CONTROLS
N85	PASSENGER COMPARTMENT VENTILATION FAN ( CONNECTORS )	Op. 5040C AIR CONDITIONER BOX AND COMPONENTS
P60	LEFT DOOR MIRROR	Op. 7005R FRONT DOOR MIRRORS
