Cylinder head (page 2 of 4)

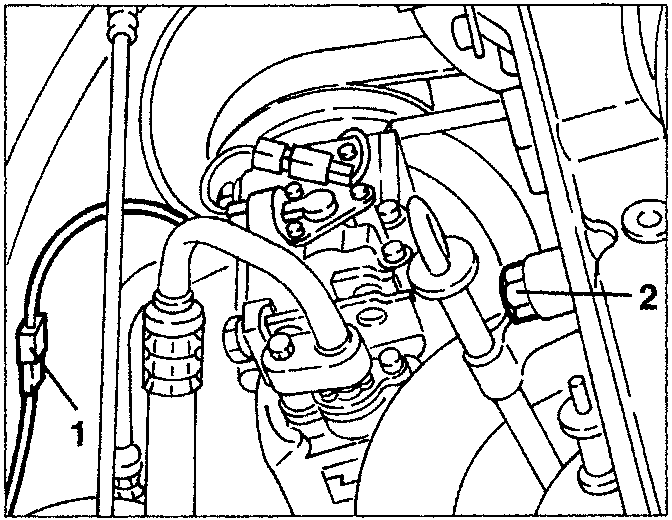

1. Disconnect the intermediate electrical connection from the air conditioning system compressor.
2. Slacken the engine oil dipstick fastening screw.

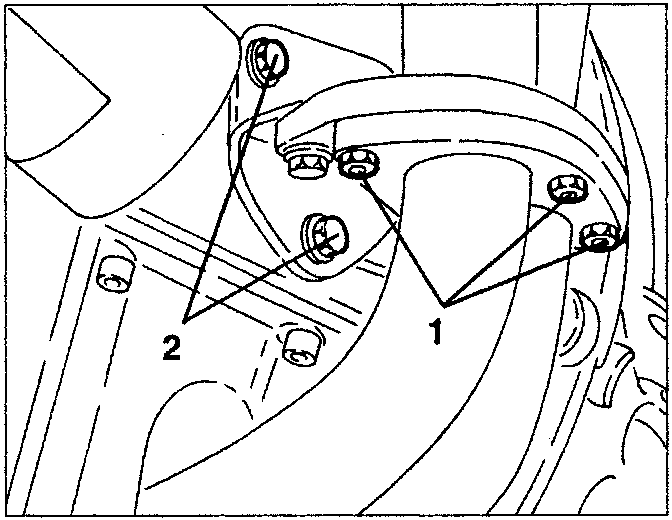

1. Raise the car and slacken the bolts fastening the front section of the exhaust pipe to the manifolds.
2. Slacken the screws fastening the exhaust manifold support bracket to the crankcase.

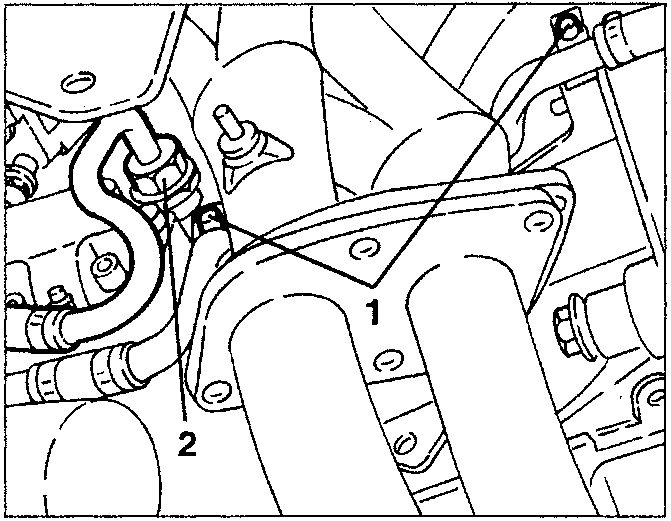

1. Slacken the two screws fastening the coolant delivery pipe to the heat exchanger.
2. Disconnect the coolant outlet pipe from the heat exchanger.

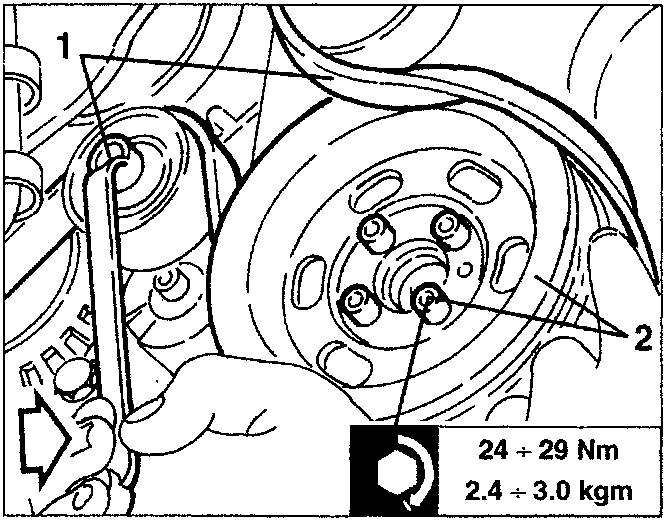

1. Working as illustrated on the guide pulley, loosen the tension of the auxiliary components drive belt and prise it off.
2. Slacken the four fastening screws and remove the auxiliary components drive pulley.

24 ÷ 29 Nm
2.4 ÷ 3.0 kgm

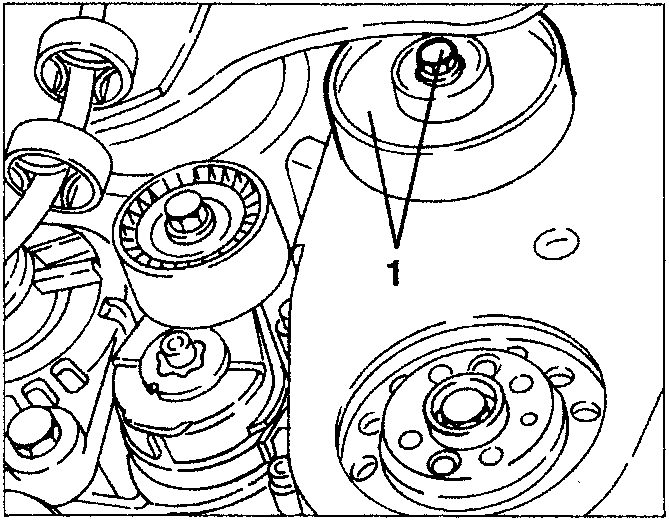

1. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.

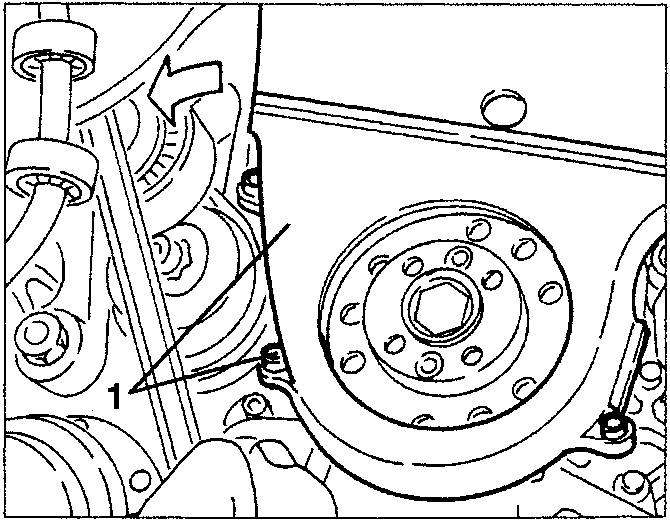

1. Slacken the fastening screws and remove the lower cover of the timing belts and counter-rotating shafts.

NOTE: To gain access to the rear screw, turn the belt tensioner as illustrated.
