Refitting

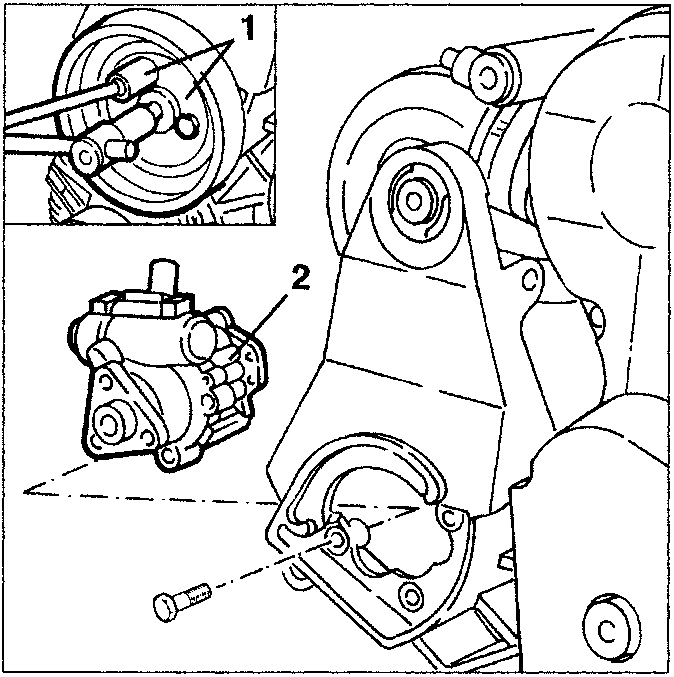

1. Using a 3/8" Allen wrench as counter-torque, slacken the three fastening screws and remove the power steering pump pulley.
2. Slacken the three fastening screws and remove the power steering pump.

1. power steering pump pulley
2. power steering pump

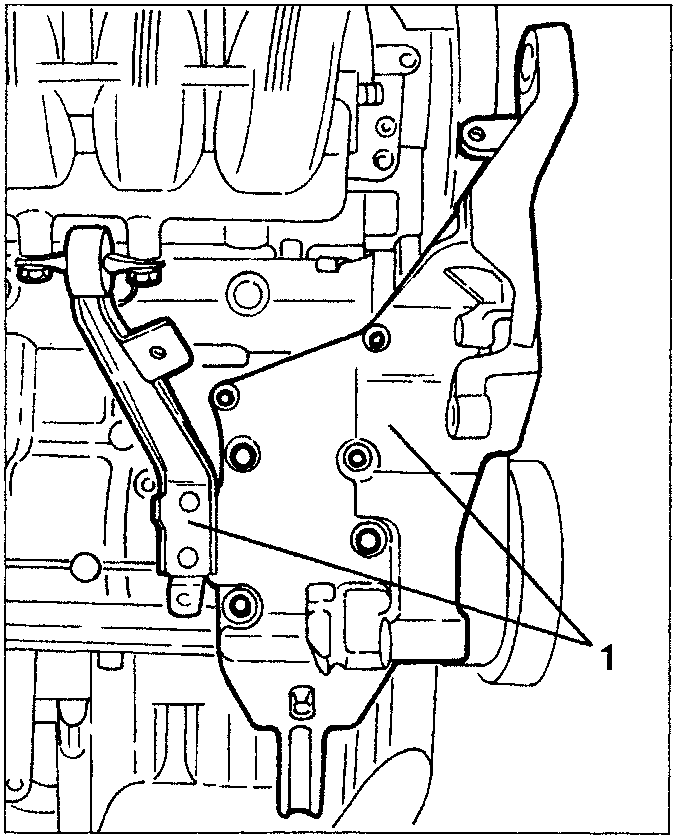

1. Slacken the fastening screws and remove the power steering pump support and alternator complete of air intake box.

1. power steering pump support

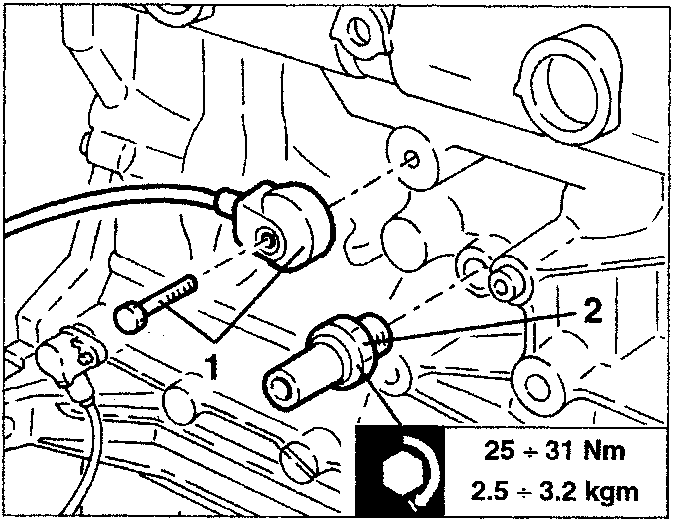

1. Slacken the fastening screws and remove the pinging sensor from the crankcase.
2. Slacken and remove the minimum oil pressure sensor from the crankcase.

25 ÷ 31 Nm
2.5 ÷ 3.2 kgm

1. pinging sensor
2. minimum oil pressure sensor

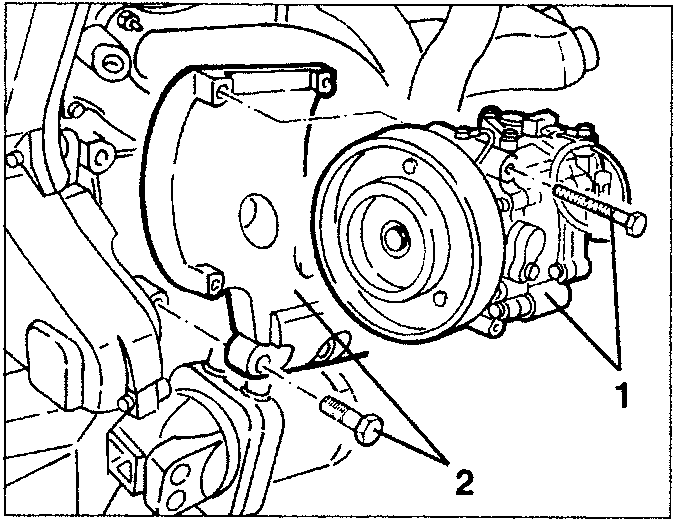

1. Slacken the four fastening screws and remove the conditioner compressor.
2. Slacken the five fastening screws and remove the conditioner compressor support.

1. conditioner compressor
2. conditioner compressor support

REFITTING

Reverse the sequence followed for removing operations adhering to the following instructions:

• Prepare the engine compartment to receive the power unit assembly, positioning all the electrical cables, pipes, etc. so that they do not interfere with assembly operations.

Make sure that the support points of the power unit have been fastened correctly.

• Upon completion of assembly operations, check that the belts are tensioned correctly, refill the various systems as specified (see GROUP 00).
• Carry out all the necessary checks and adjustments (see GROUP 00).
