Description (page 7 of 7)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting (T. Spark 16V)

10 Engine – T. Spark 16VDescription · page 7 of 7

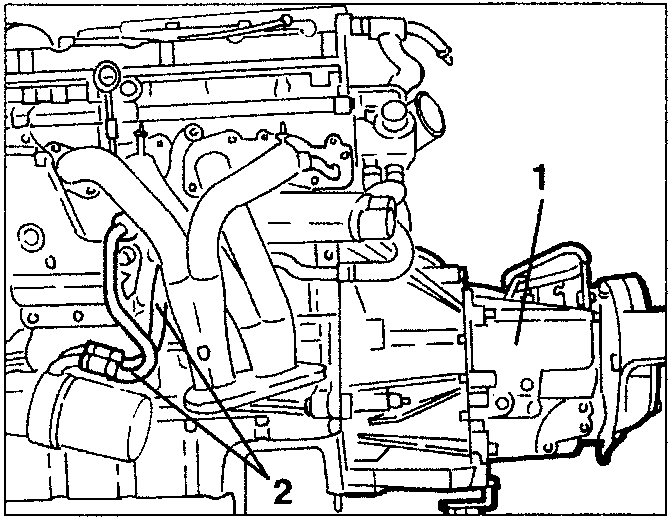

1. Slacken the fastening screws and nuts and remove the gearbox and differential unit.
2. Remove the heat exchanger coolant return and delivery pipes.

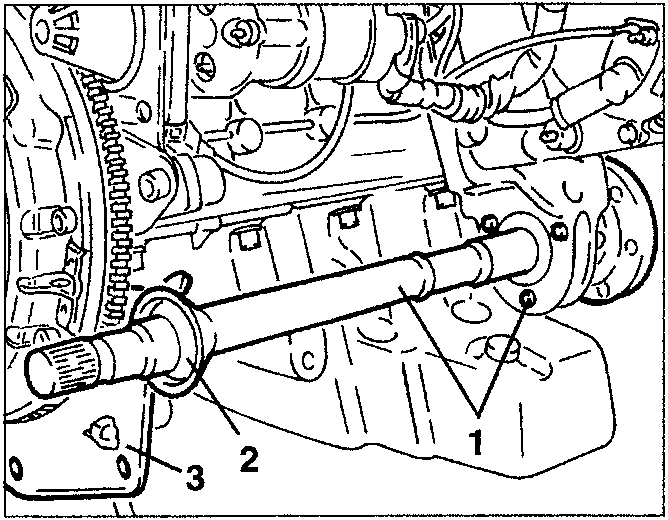

1. Intermediate shaft
2. Dust guard ring
3. Lower flywheel cover

• Release the starter motor from the electric cables, then remove it.

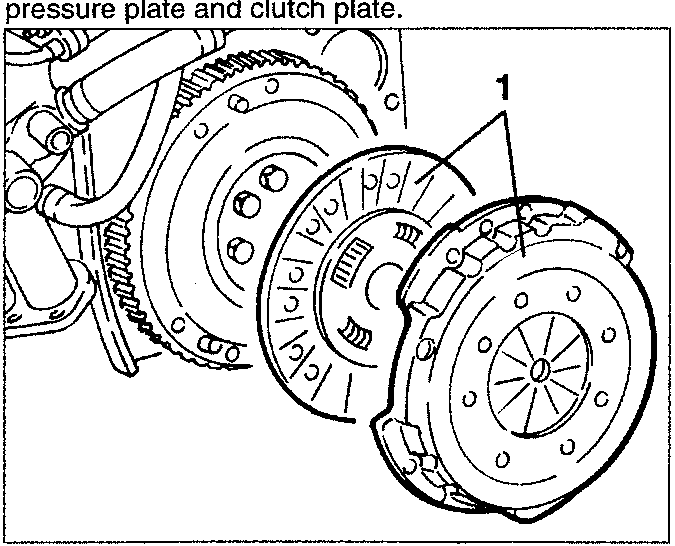

1. Slacken the fastening screws and remove the pressure plate and clutch plate.

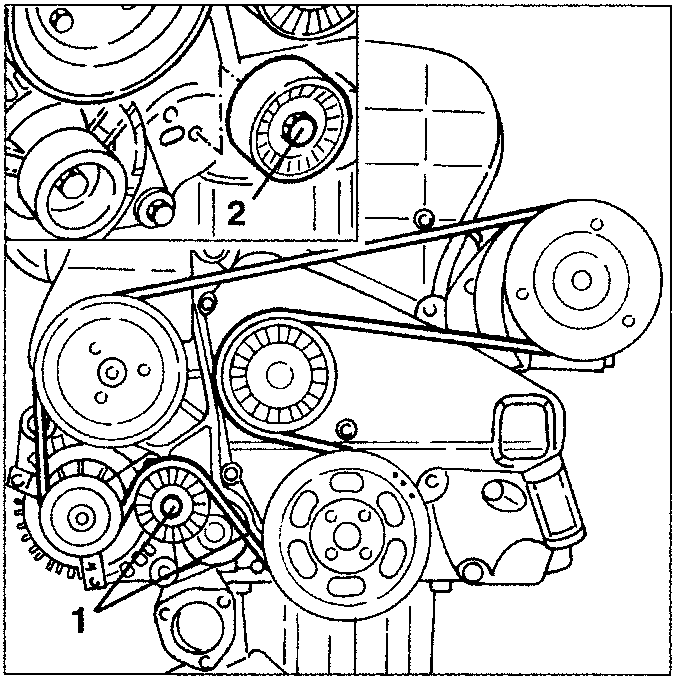

1. Slacken the screw fastening the belt tensioner to loosen the tension on the auxiliary components drive belt, then prise and remove the belt.
2. Back off the fastening screw completely and remove the belt tensioner.

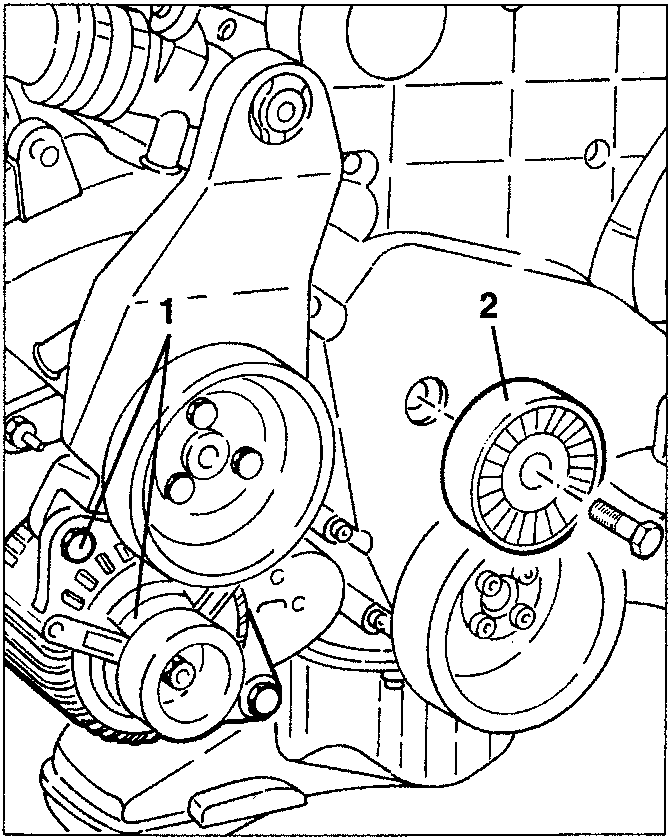

1. Slacken the two fastening bolts and remove the alternator.
2. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.
