Description

DESCRIPTION

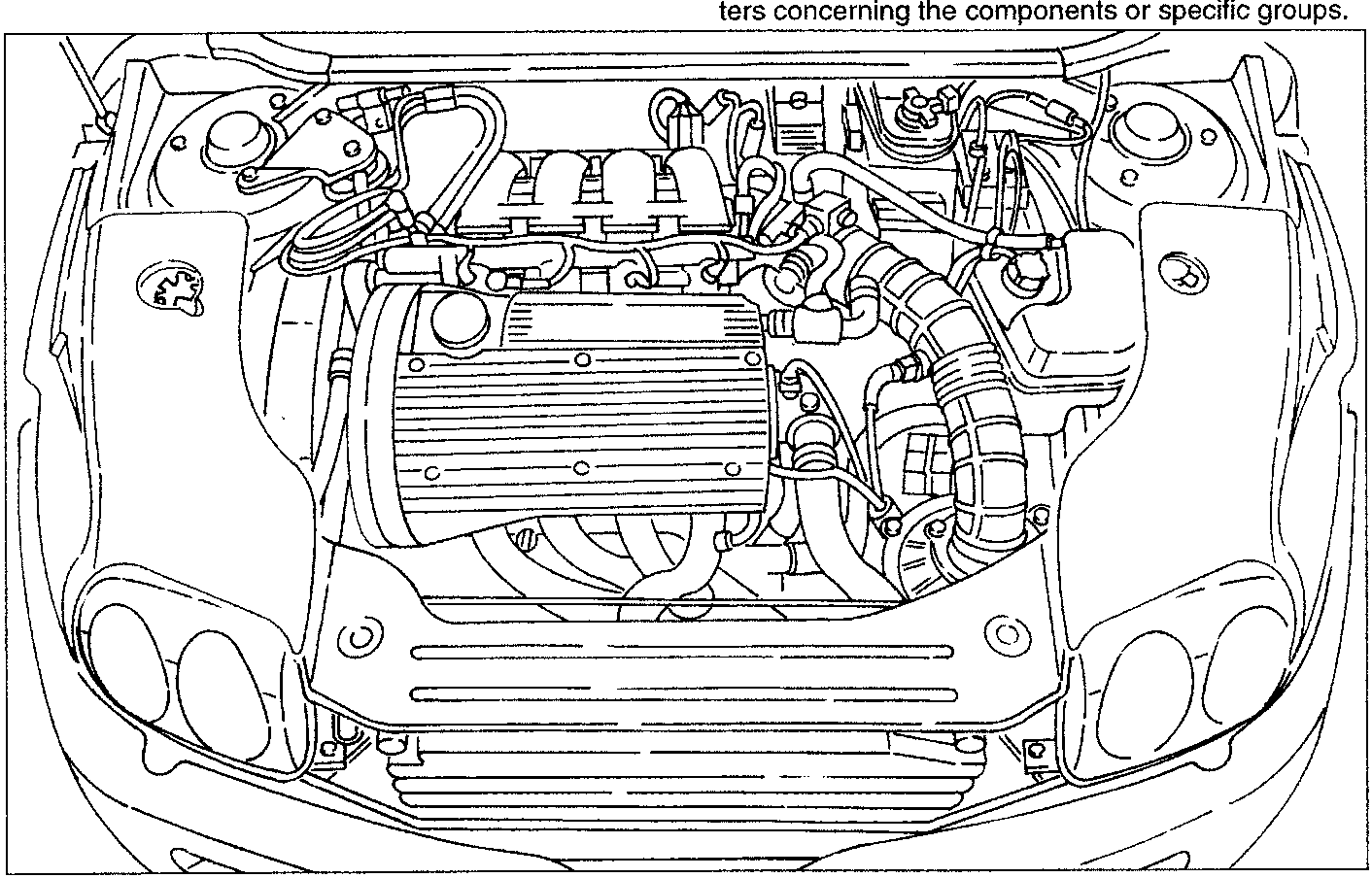

The information and illustrations given below enable the rapid removal of the power unit from its housing and its subsequent refitting.

Dis-assembly of the single components on the bench is described in the volume "ENGINE OVERHAULING". The following procedure may be used only in part according to requirements. For further information and details, refer to the chapters concerning the components or specific groups.

REMOVAL

• Set the car on a two-column lift.
• Disconnect the battery (-) terminal.
• Remove the front wheels and mud flaps.

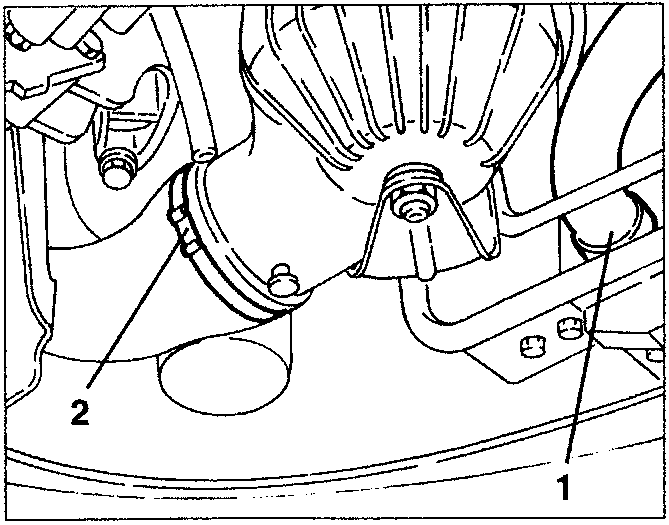

1. Raise the car and drain the coolant fluid disconnecting the radiator outlet sleeve.
2. Slacken the clamp fastening the air intake sleeve to the air cleaner box.

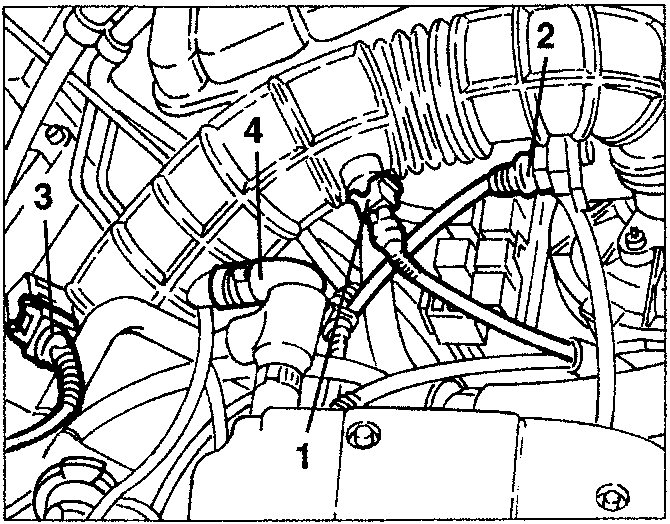

3. Lower the car and disconnect the electrical connection from the intaken air temperature sensor.
4. Disconnect the electrical connection from the air-flow meter.
5. Disconnect the electrical connection from the constant idle speed actuator.
6. Disconnect the oil vapour recirculation pipe from the corrugated sleeve.
