Description (page 6 of 7)

1. Slacken the fastening screws and remove the lower radiator crossmember after freeing the pipes from the fastening clamps on the crossmember itself.
2. Slacken the fastening clamps and remove the air intake elbow.

1. air intake elbow
2. lower radiator crossmember

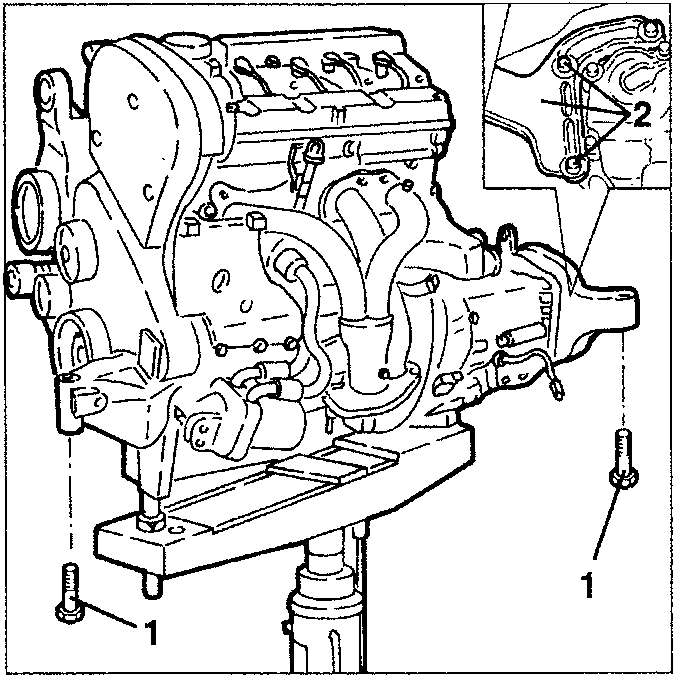

1. Slacken the screws fastening the power unit supports to the body on the gearbox side and camshaft side.
2. Slightly lower the power unit, then slacken the fastening screws and remove the gearbox side support.
3. Lower the hydraulic jack and remove the power unit from the engine compartment.

The hydraulic jack must have a capacity of at least 1000 kg.

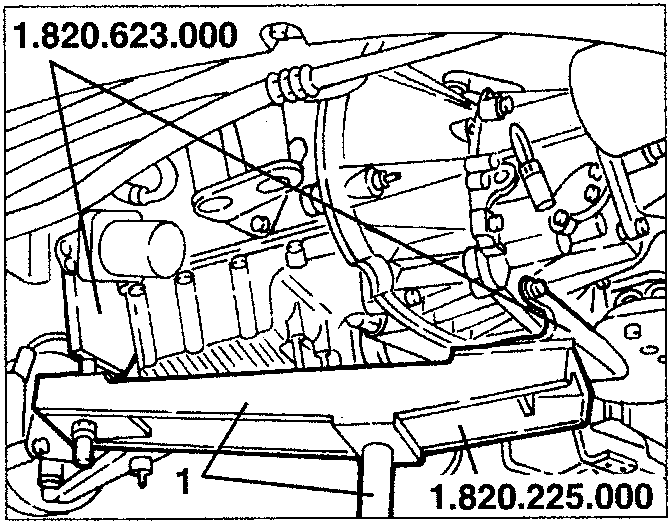

1. Position a hydraulic jack complete with tool no. 1.820.225.000 and no. 1.820.623.000.

• Support the power unit with a hydraulic hoist as well as with the hydraulic jack used for removal.

For moving the power unit, use a hydraulic hoist after freeing it from the hydraulic jack.

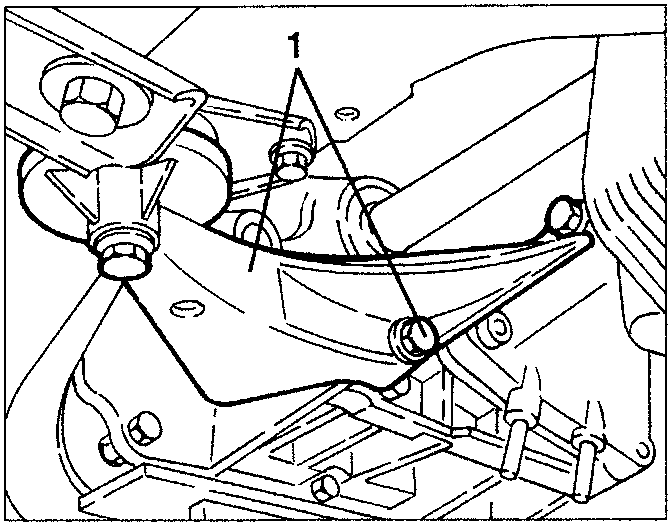

1. Slacken the fastening screws and remove the rear power unit support.

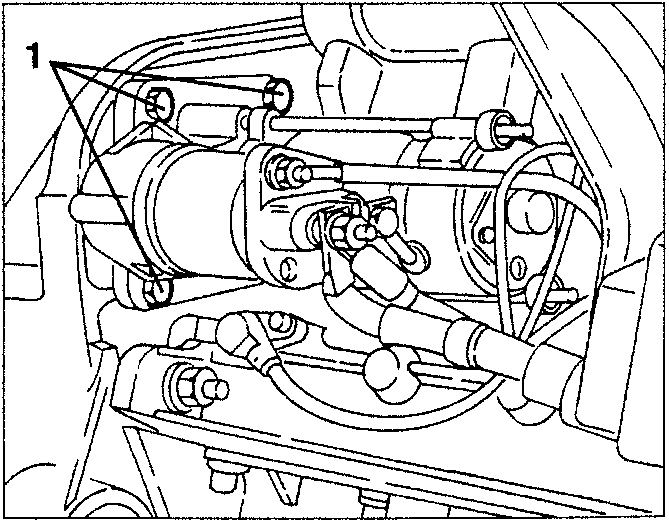

1. Slacken the starter motor fastening screws.
