Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)03 · 10 Engine – T. Spark 16V
03 · Engine

Description (page 2 of 7)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Removal/Refitting (T. Spark 16V)
10 Engine – T. Spark 16VDescription · page 2 of 7

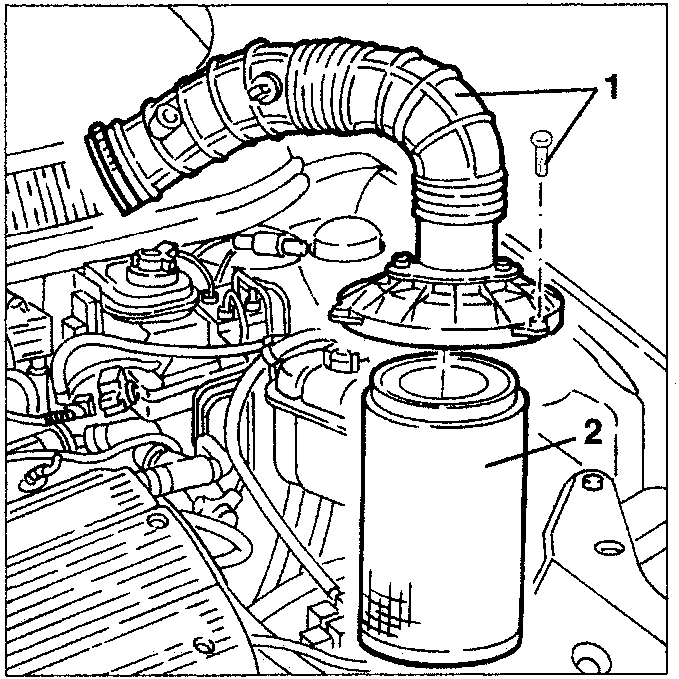

  1. Slacken the clamp, back off the fastening screws and remove the air cleaner cover complete with air-flow meter and corrugated sleeve.
  2. Remove the filtering element.
Air cleaner cover removal diagram showing parts 1 and 2

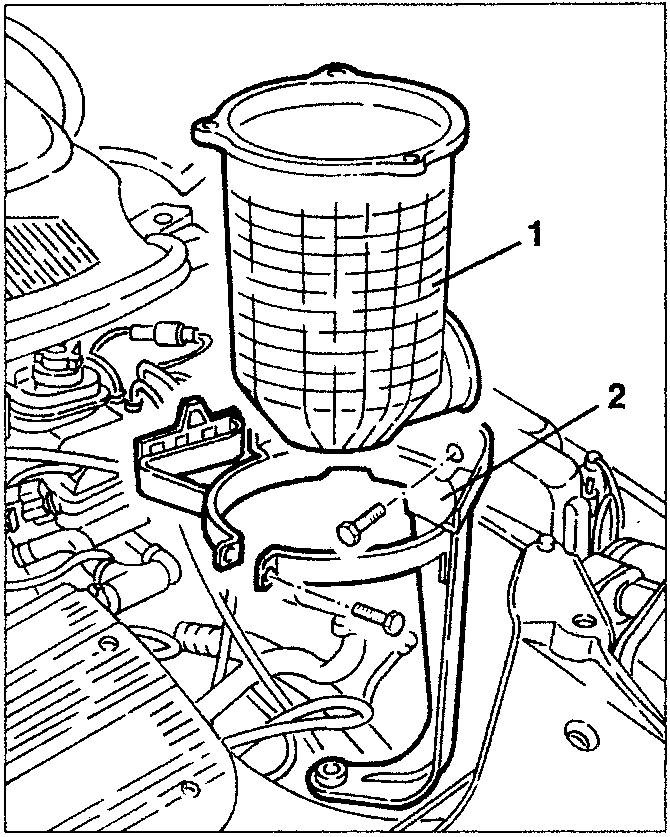

  1. Air cleaner box
  2. Air cleaner support bracket
Air cleaner box and support bracket removal diagram showing parts 1 and 2

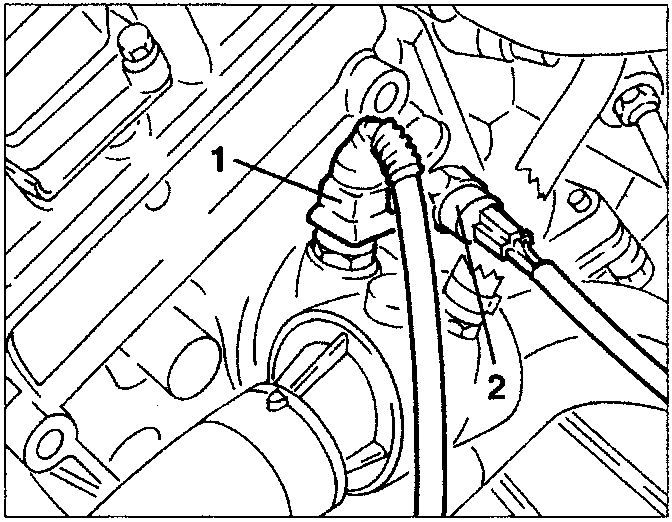

  1. Disconnect the electrical connection from the coolant temperature sensor (NTC).
Coolant temperature gauge transmitter and max. temperature warning light contact disconnection diagram showing parts 1 and 2

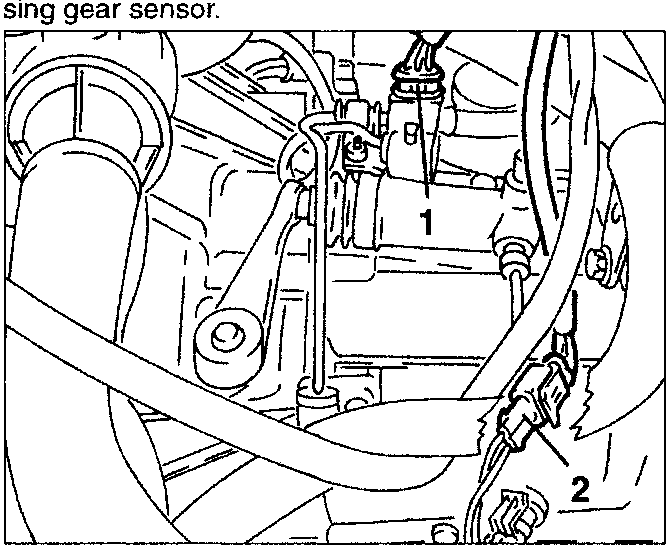

  1. Disconnect the electrical connection from the speedometer sensor.
  2. Disconnect the electrical connection from the reversing gear sensor.
Speedometer and reversing gear sensor disconnection diagram showing parts 1 and 2

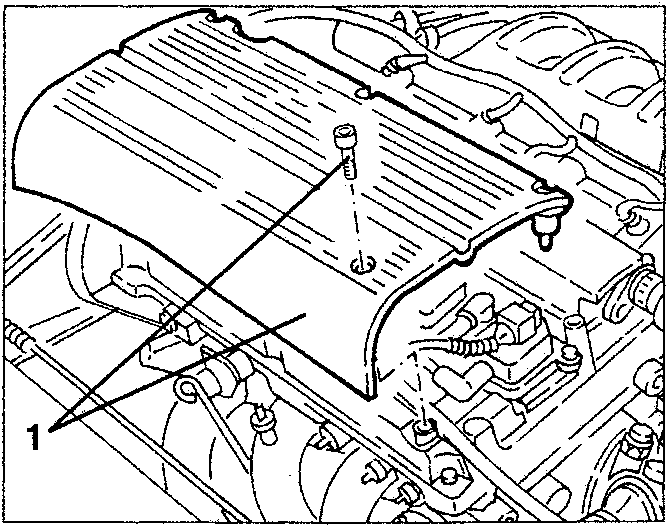

  1. Slacken the fastening screws and remove the ignition coils cover.
Ignition coils cover removal diagram showing part 1
