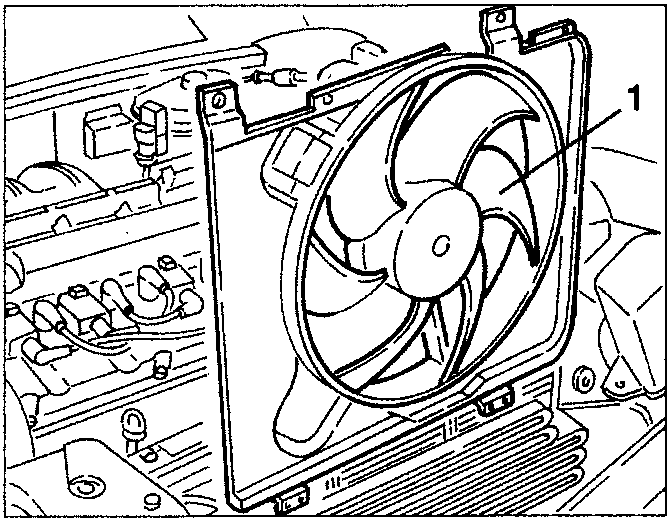

1. Slacken the fastening screws and remove the cooling fan.

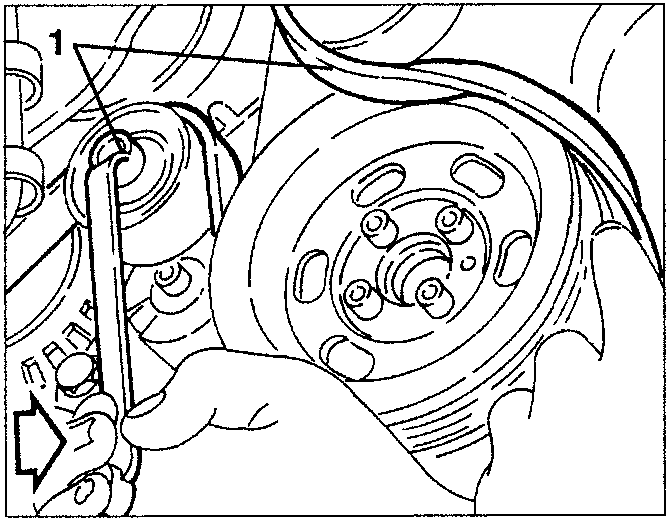

1. Raise the car and working as illustrated on the guide pulley, slacken the tension of the auxiliary components drive belt and remove it.

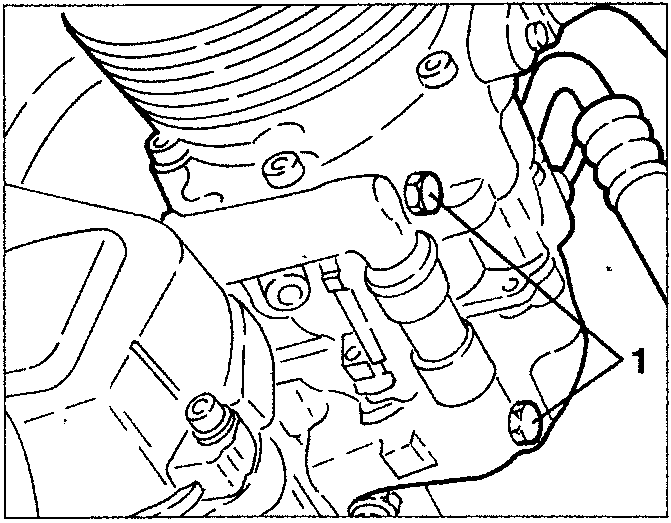

1. Slacken the two lower screws fastening the conditioner compressor, then, without disconnecting the piping, fasten it to one side so that it does not hinder the following operations.

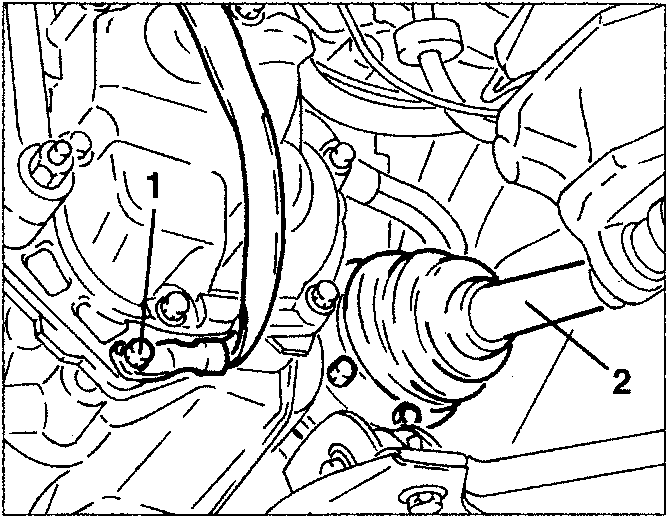

1. Disconnect the earth braid from the gearbox.
   2. Slacken the fastening bolts and disconnect the axle shafts.

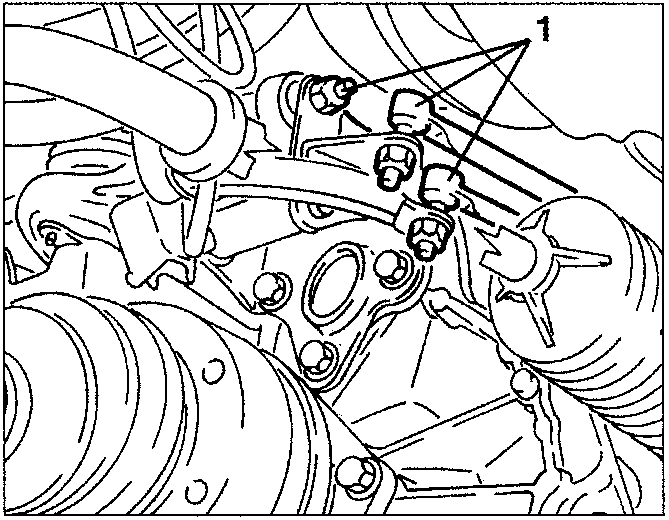

1. Slacken the fastening nuts and disconnect the gearshift control rods.

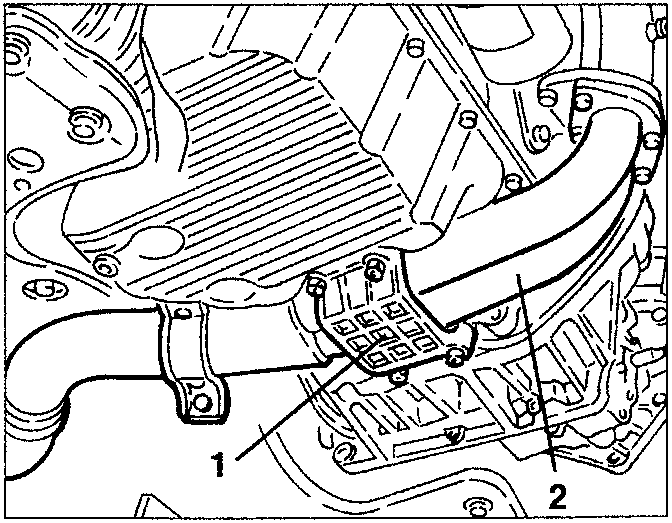

1. Remove the reinforcement brackets.
   2. Remove the front section of the exhaust pipe complete with lambda probe after slacken the associated clamps.
