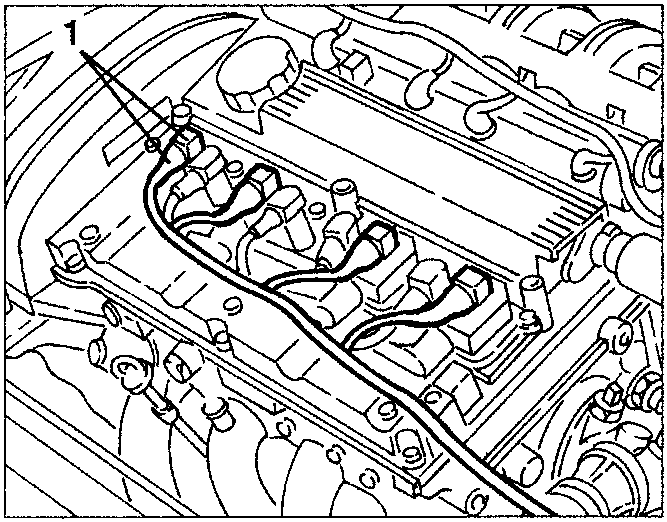

1. Disconnect the electrical connections from the ignition coils and move the wiring to one side.

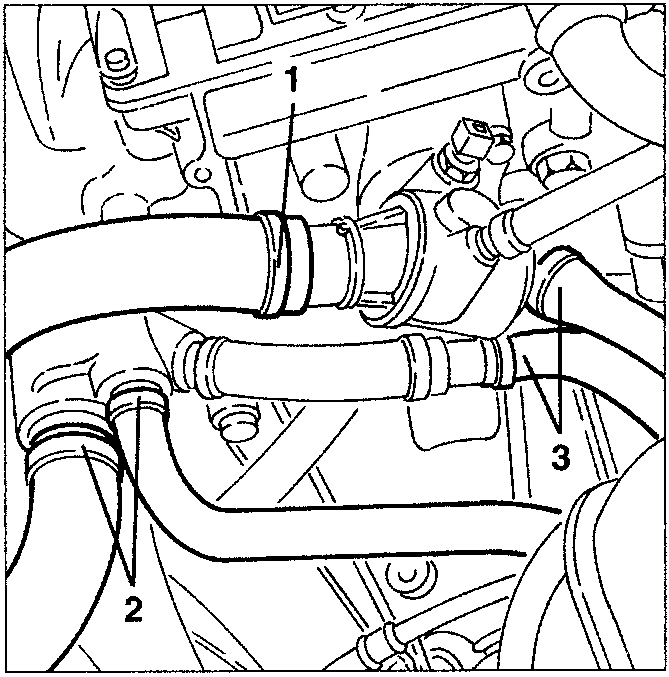

1. From the thermostatic cup disconnect the coolant delivery sleeve to the radiator.
2. From the coolant return manifold to the pump disconnect the return sleeve from the radiator and the system supply pipe leading from the header tank.
3. Disconnect the two coolant delivery and return pipes to the heater from the climate control system.

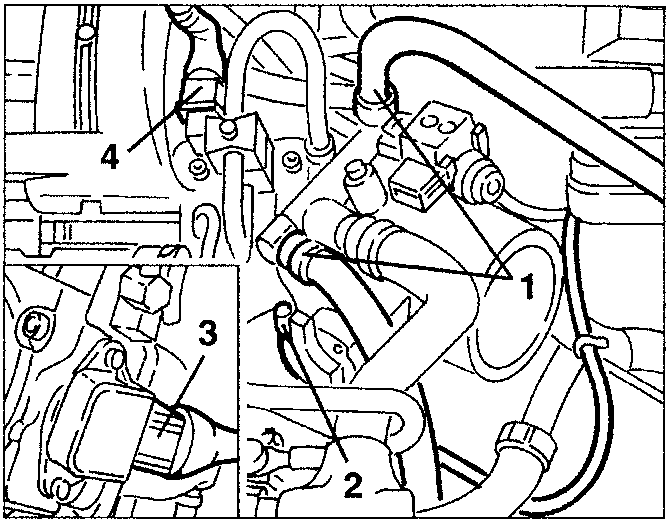

1. Disconnect the two coolant inlet and outlet pipes from the throttle body.
2. Disconnect the accelerator cable from the throttle body.

• Disconnect the servobrake vacuum takeoff pipe.

3. Disconnect the electrical connection from the throttle potentiometer.
4. Disconnect the electrical connection from the E.G.R. modulation solenoid valve.

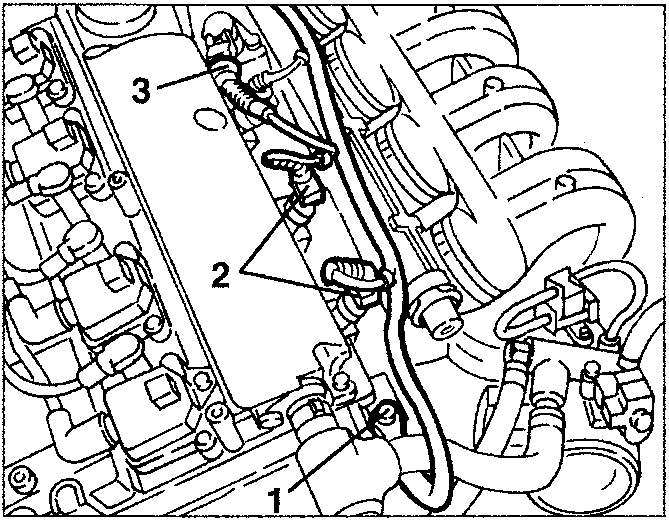

1. Disconnect the earth cable from the cylinder head.
2. Disconnect the electrical connections from the injectors.
3. Disconnect the electrical connection from the timing variator and move the wiring to one side.

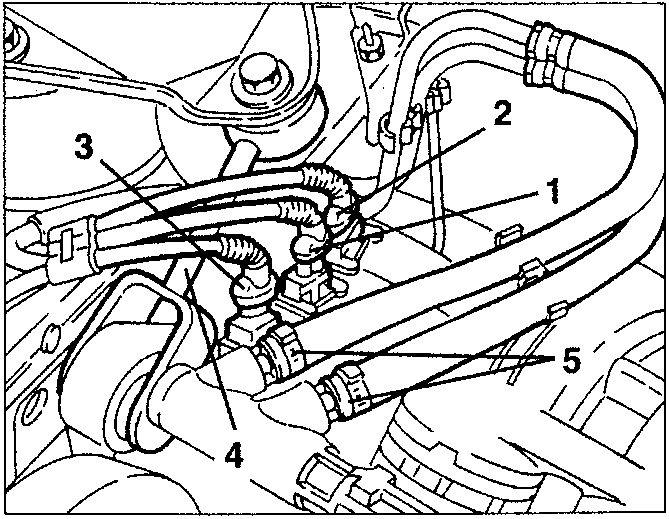

1. Disconnect the rpm and timing sensor connection.
2. Disconnect the timing sensor connection.
3. Disconnect the pinging sensor connection.
4. Disconnect the stay rod from the support on the engine.
5. Disconnect the fuel inlet and outlet pipes from the distributor manifold.
