Description (page 4 of 7)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting (T. Spark 16V)

10 Engine – T. Spark 16VDescription · page 4 of 7

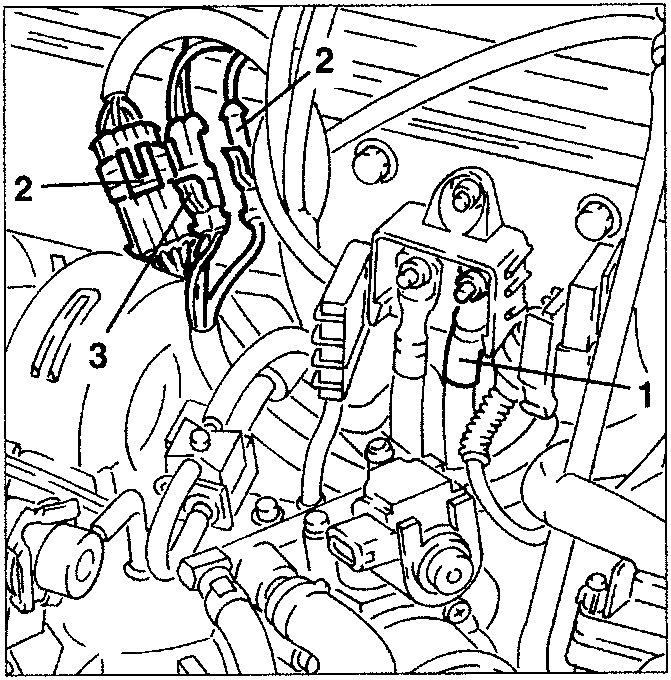

1. Open the control box and disconnect the electrical connection of the starter motor.
2. Disconnect the electrical connections of the lambda sensor.
3. Disconnect the electrical connection of the minimum engine oil pressure warning light sensor.

1. From the intake box disconnect the fuel vapour recirculation pipe.
2. Empty the power steering tank using a suitable syringe.
3. Disconnect the oil inlet and delivery pipes from the power steering pump.

1. Slacken the two screws and the nut, then move the clutch control cylinder to one side disconnecting the associated piping.

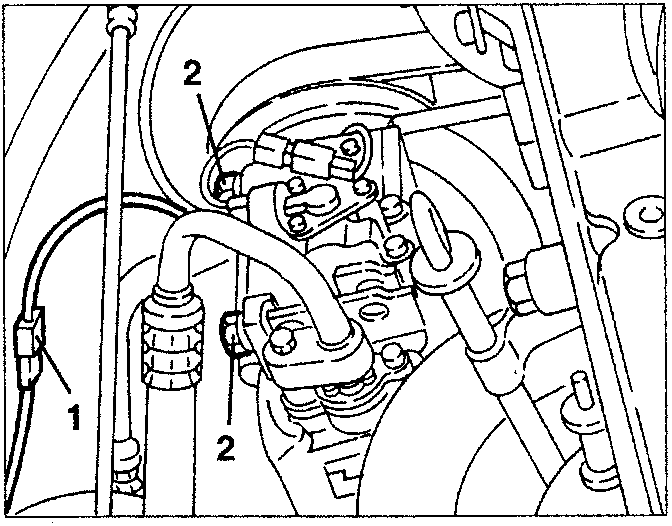

1. Disconnect the intermediate electrical connection of the air conditioner compressor.
2. Slacken the two upper screws fastening the conditioner compressor.

• Slacken the fastening screws and remove the upper radiator crossmember.

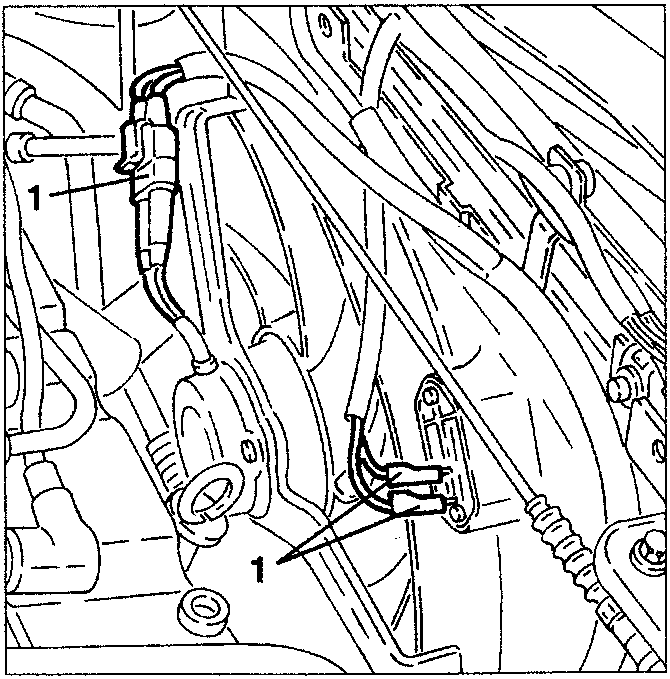

1. Disconnect the electrical connections from the cooling fan.
