Gearbox side costant velocity joint

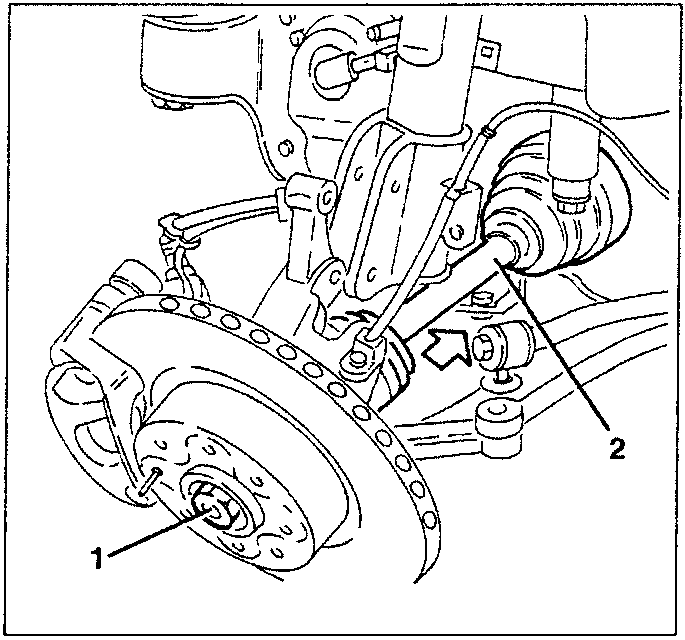

1. Remove the caulking and slacken the nut fastening the constant velocity joint to the wheel hub.
2. Withdraw the axle shaft and remove it.

When refitting tighten the nut fastening the axle shaft to the hub and the bolts fastening the upright to the shock absorber as described in GROUP 44 - Wheels and Hubs.

GEARBOX SIDE COSTANT VELOCITY JOINT

DIS-ASSEMBLY

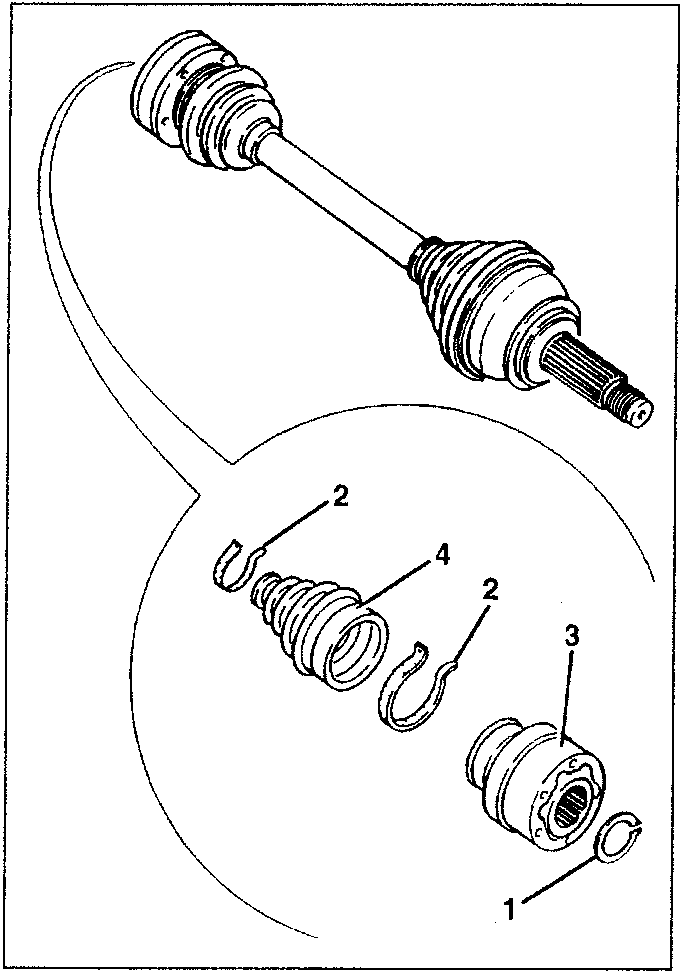

1. Remove the flexible retainer ring.
2. Remove the the gearbox side boot fastening clamps.
3. Withdraw the gearbox side constant velocity joint from the axle shaft.
4. Separate the protective boot from the constant velocity joint.

WARNING: When refitting change the boot and its clamps.

INSPECTIONS

Degrease the joint components with fuel oil and check the balls and their housings for traces of wear and cracks. Check the shaft for distortion, cracks and signs of wear.
