Inspections

1. Remove the flexible retainer ring.

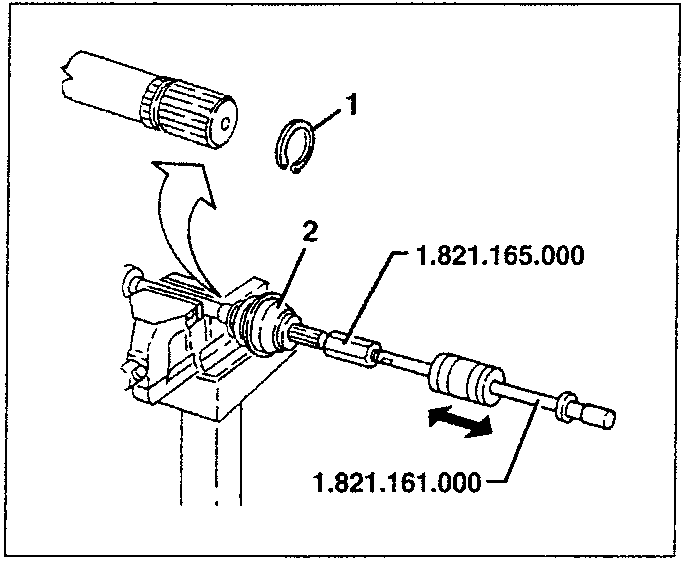

2. Using tools no. 1.821.165.000 and no. 1.821.161.000, remove the constant velocity joint from the axle shaft.

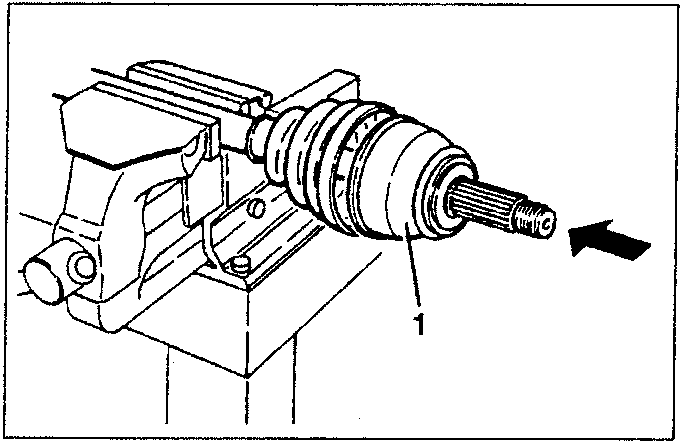

1. Position the constant velocity joint on the axle shaft and using a soft hammer, push it into its housing. Fill the boot and grease the joint with appr. 120 g of the specified grease.

INSPECTIONS

Degrease the joint components with fuel oil and check the balls and their housings for signs of wear and cracks. Check the shaft for distortion, cracks and signs of wear.

RE-ASSEMBLY

1. Install a new protection boot.

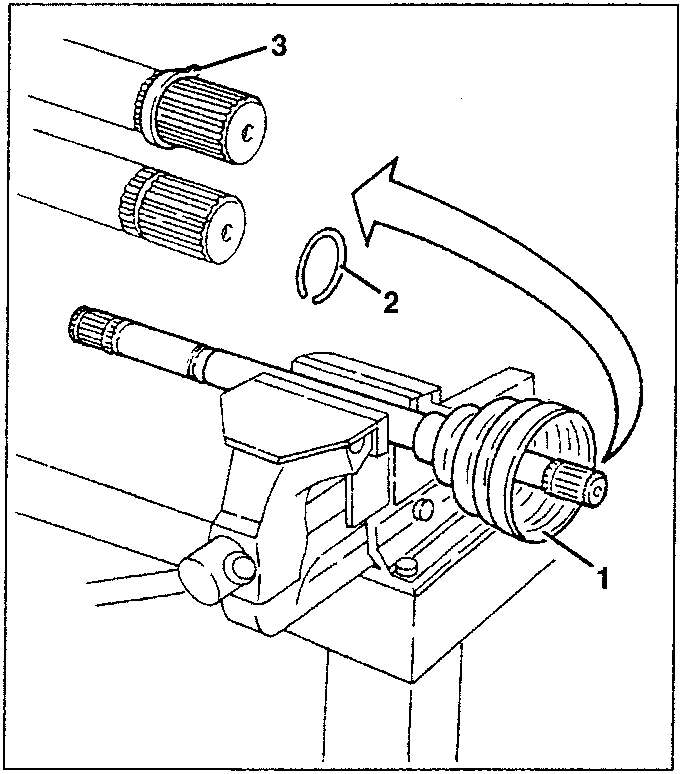

2. Position the flexible retainer ring in its housing.

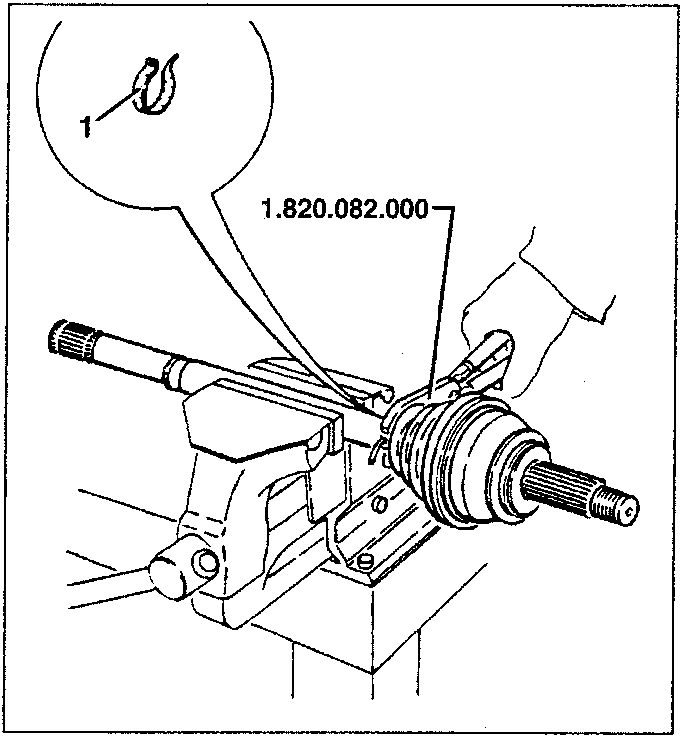

3. Compress the ring with the fastening clamp.
