AIR CONDITIONER UNIT

REMOVAL/REFITTING

  • Remove the dashboard (see Assembly 70)
    - Drain the coolant (see specific paragraph)

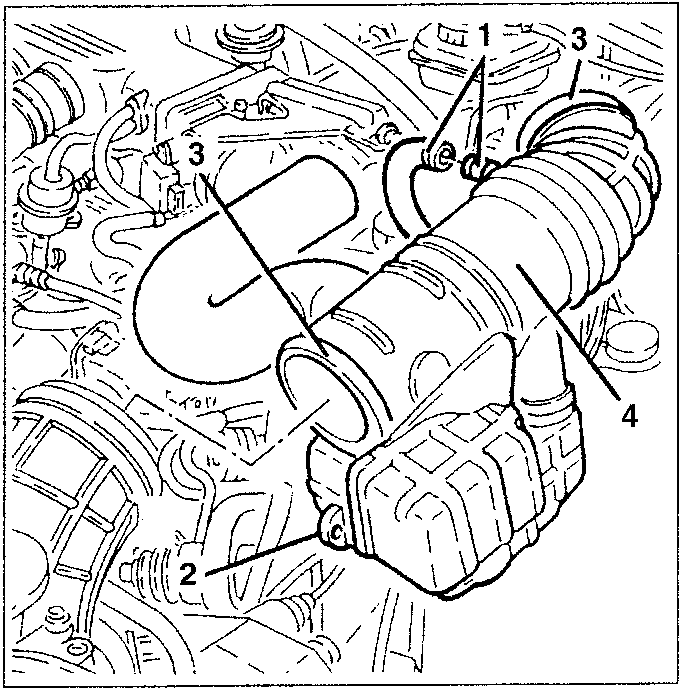

For 6 cylinder versions

  1. Disconnect the oil vapour recovery pipe.
  2. Remove the lower resonator fastening button.
  3. Loosen the two fastening clips.
  4. Remove the corrugated sleeve and resonators.
Air conditioner unit with numbered parts 1, 2, 3, 4

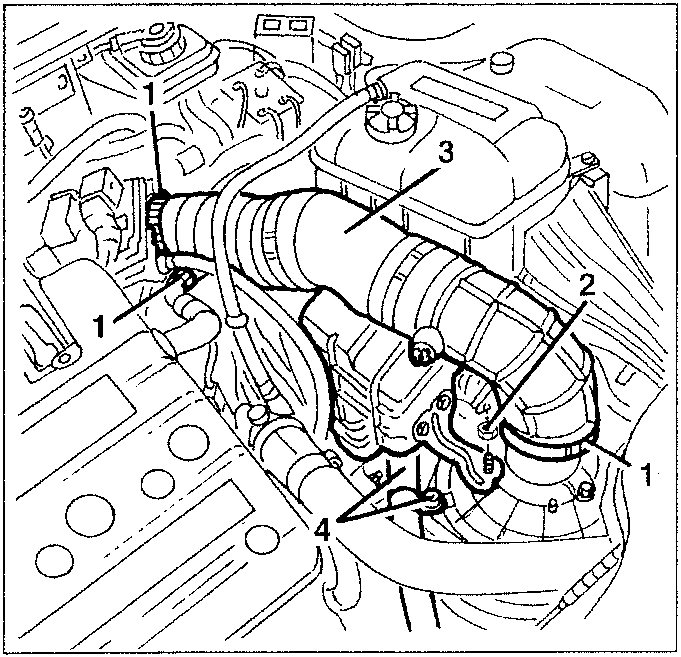

For 4 cylinder versions

  1. Loosen the clips.
  2. Loosen the bracket fastening nut.
  3. Remove the corrugated sleeve and resonator.
  4. Loosen the clip fastening screw and move the pipe aside.
Evaporator fitting with numbered parts 1, 2, 3, 4

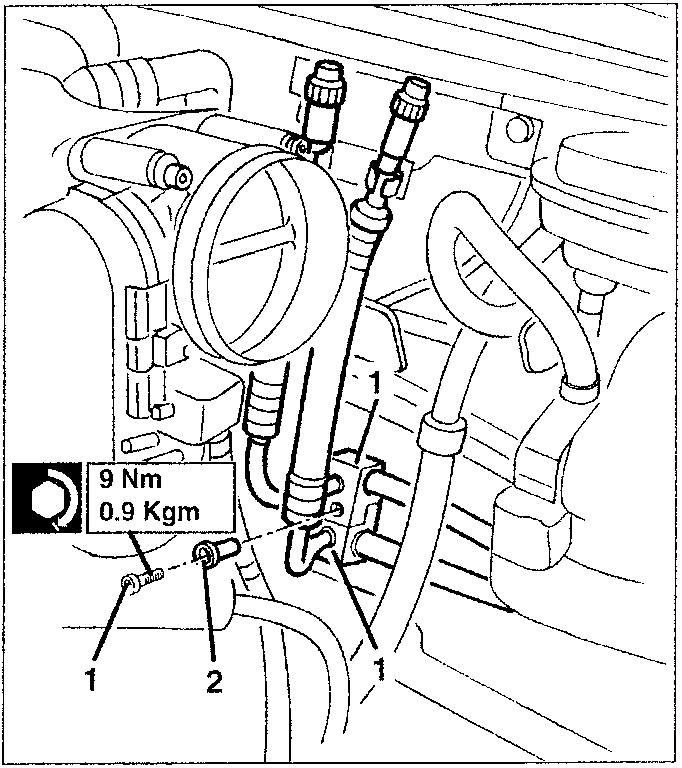

  1. Loosen the fastening screw and disconnect the pipes from the evaporator fitting.
    2. Take the bushing.
    When refitting, check integrity of the bushing and replace it, if required.
Evaporator fitting with numbered parts 1, 2, 3, 4 and torque specification

9 Nm
0.9 Kgm
