Condenser

NOTE: Replace the fitting O-rings.
Only use green rings resistant to R134A
coolant. Lubricate the fittings with anti-freeze
oil.
– Torque as prescribed.

CONDENSER

REMOVAL

• Drain the coolant;
• Position the vehicle on a shop jack.
• Remove the front bumper (see ASSEMBLY 70).

For 3.0 V6 engines only

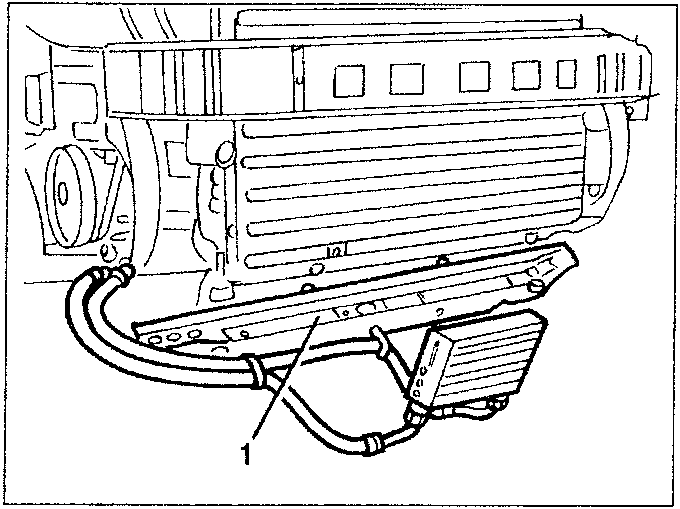

1. Remove the oil exchanger bracket fastening
   screws and lower the exchanger without disconnecting
   the pipes.

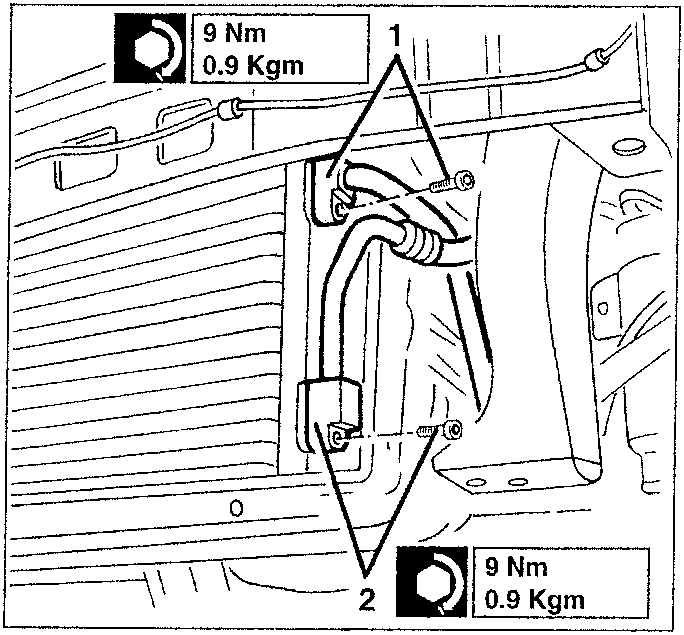

1. Disconnect the coolant pipe to the compressor .
   2. Disconnect the pipe to the evaporator.

9 Nm
0.9 Kgm

9 Nm
0.9 Kgm

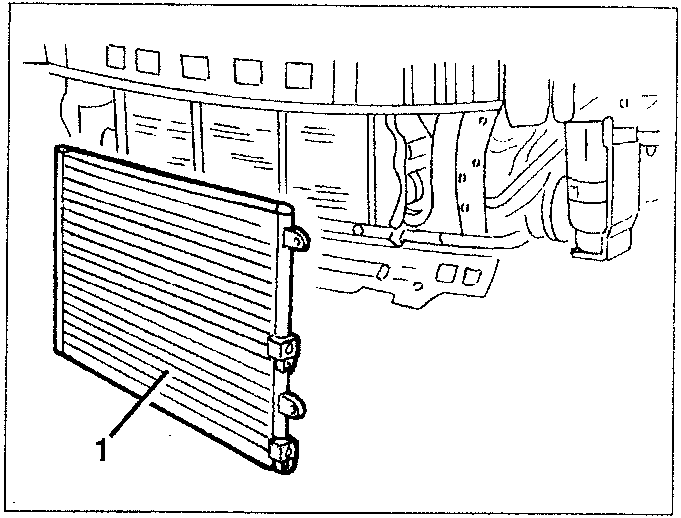

REFITTING

• Be careful not to damage the condenser
  heat exchanger fins.
• Lubricate the fittings with the prescribed
  oil and torque as prescribed.

DRIER FILTER (6 cylinder versions)

REMOVAL/REFITTING

• Position the vehicle on a shop jack.
• Disconnect the negative battery terminal.
• Drain the coolant.

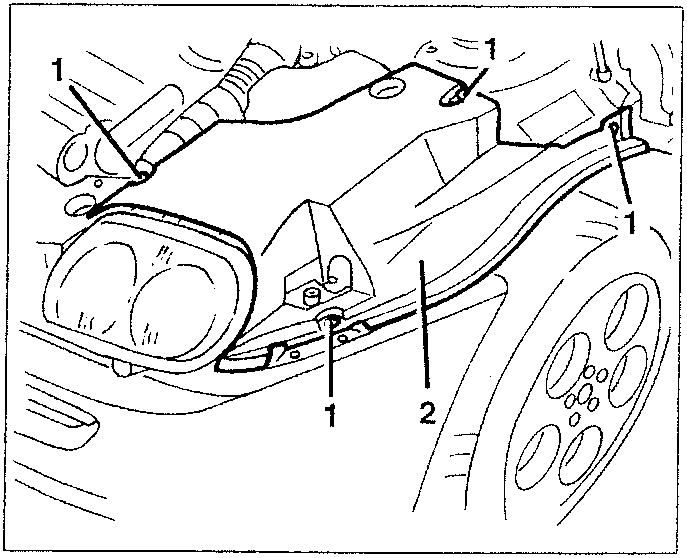

1. Loosen the engine compartment left-hand guard
   fastening screws.
2. Remove the guard.
