Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)14 · 50 Heating, ventilation and air conditioning
14 · Heating & A/C

Condenser (page 2 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Automatic climate control
50 Heating, ventilation and air conditioningCondenser · page 2 of 3

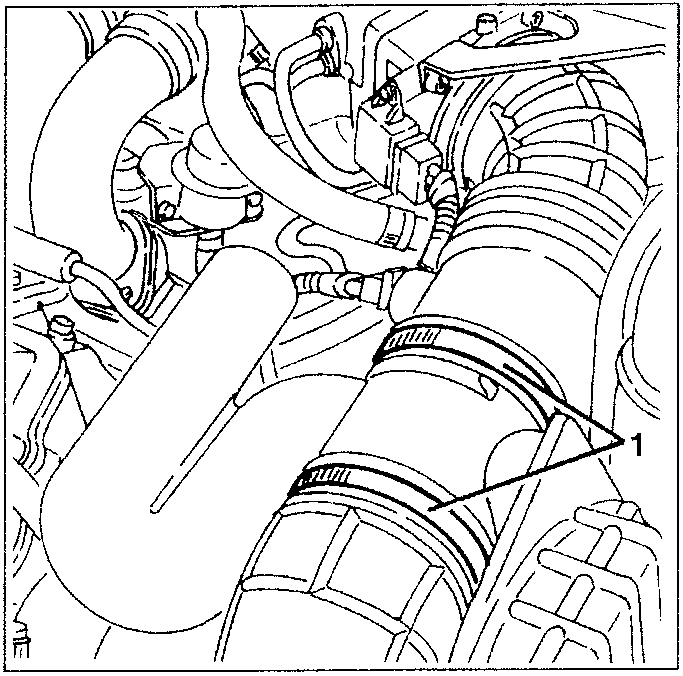

  1. Loosen the two clips fastening the upper resonator to the corrugated sleeve.
Diagram showing upper resonator and corrugated sleeve with clip 1 indicated
  1. Remove the upper resonator.
  2. Loosen the lower resonator fastening clip.
  3. Remove the lower resonator retainer.
  4. Remove the lower resonator.

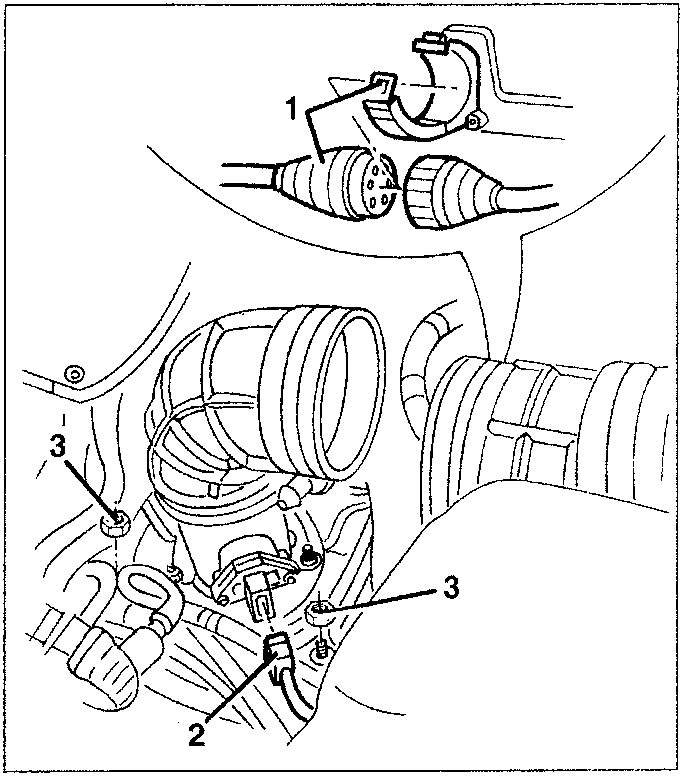

  5. Release the bracket and disconnect the engine wiring electrical connection.
  6. Disconnect the flow meter electrical connection.

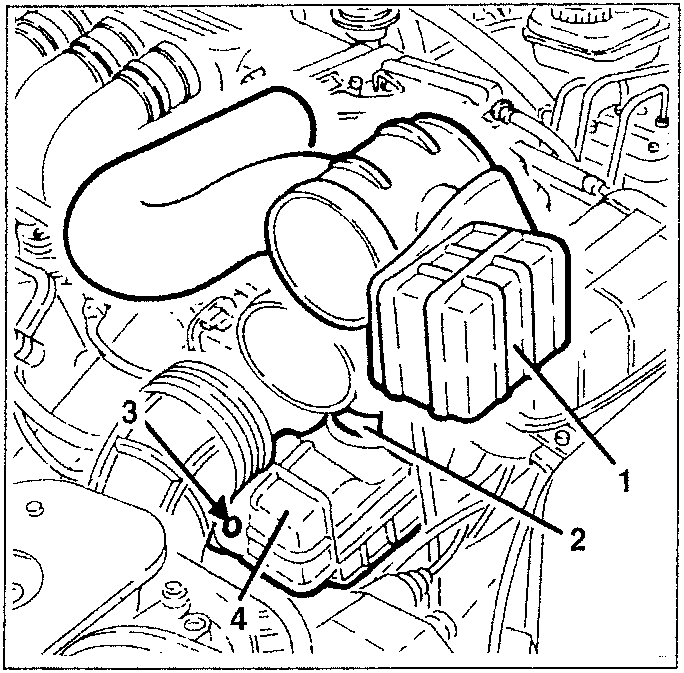

  7. Loosen the two nuts fastening the air cleaner to the bracket.
Engine air intake system component layout diagram
Diagram showing engine components with labeled parts 1, 2, and 3
  • Lift the vehicle.

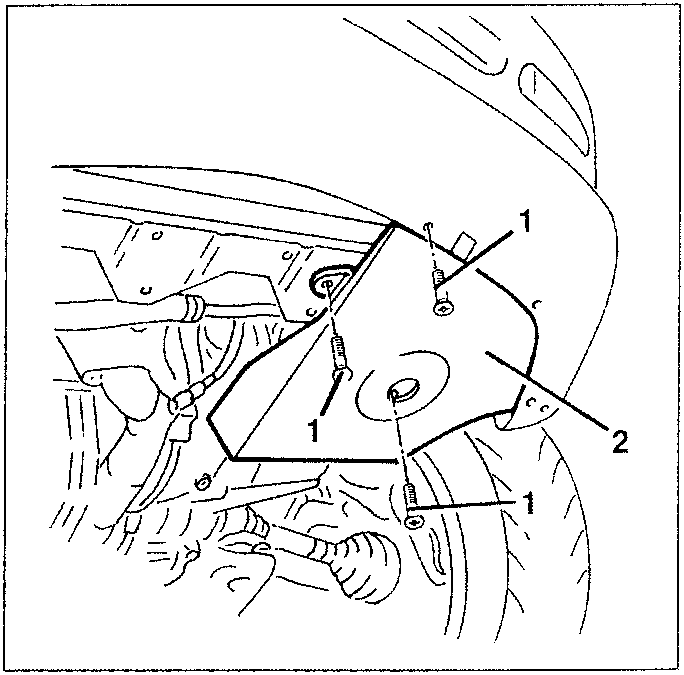

  1. Loosen the screws and nut fastening the guard under the air cleaner.
  2. Remove the guard.
Diagram showing vehicle underside with labeled parts 1 and 2
