Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)14 · 50 Heating, ventilation and air conditioning
14 · Heating & A/C

Condenser (page 3 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Automatic climate control
50 Heating, ventilation and air conditioningCondenser · page 3 of 3

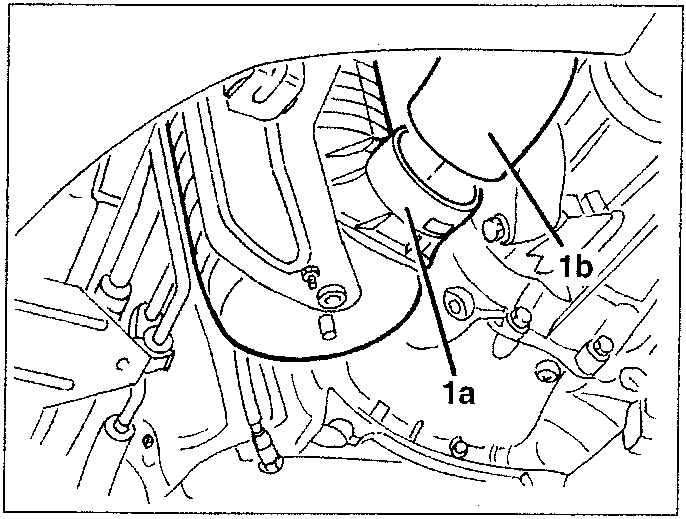

  1. Remove the air cleaner (1a) from the resonator under the bumper (1b).
Diagram showing removal of air cleaner (1a) from resonator (1b) under bumper

– Lower the vehicle.

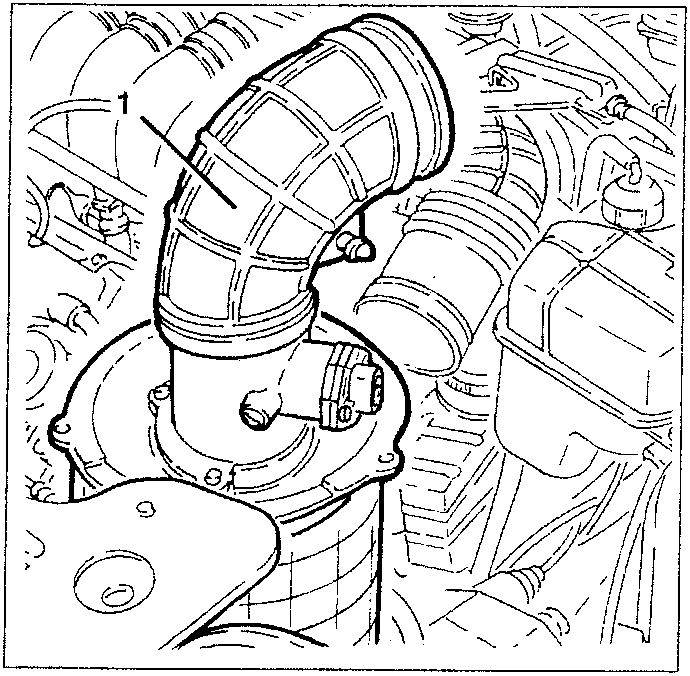

  1. Remove the air cleaner.
Diagram showing air cleaner (1) being removed

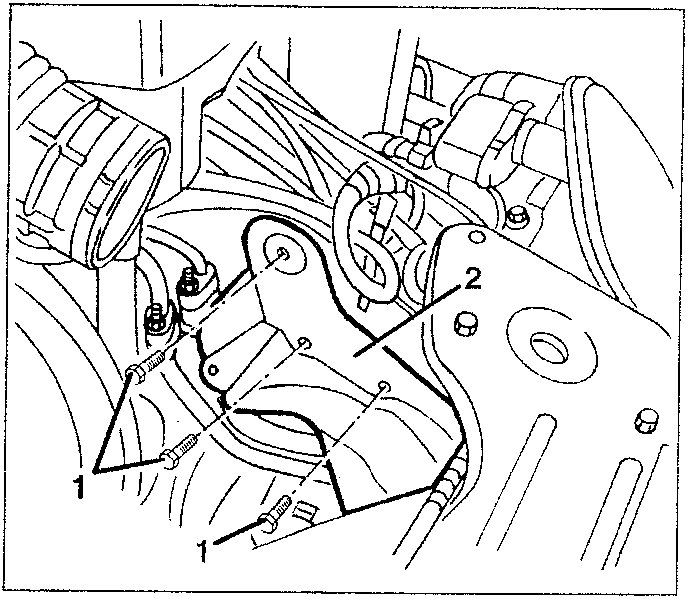

  1. Loosen the air cleaner bracket fastening screws.
  2. Remove the bracket.
Diagram showing loosening of air cleaner bracket fastening screws and removal of bracket

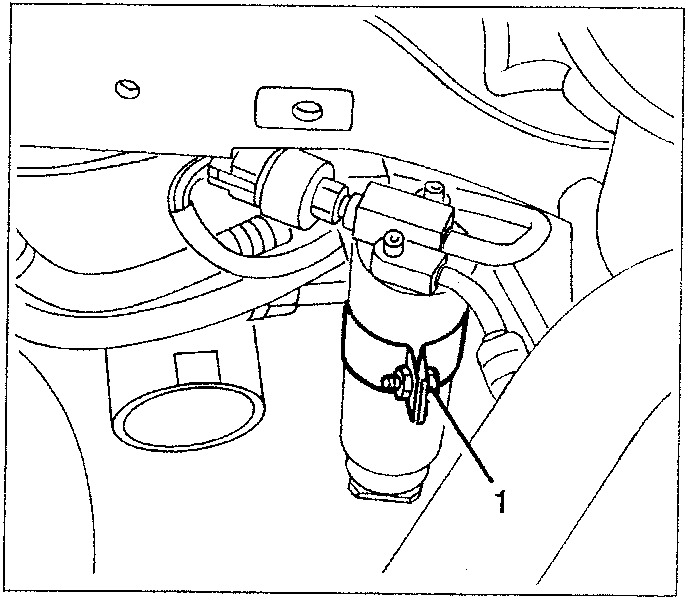

  1. Loosen the drier filter retainer clip screw.
Diagram showing loosening of drier filter retainer clip screw
