55 Electric systemREMOVAL/REFITTING (to '98 versions)

REMOVAL/REFITTING (to '98 versions)

• Disconnect the battery.

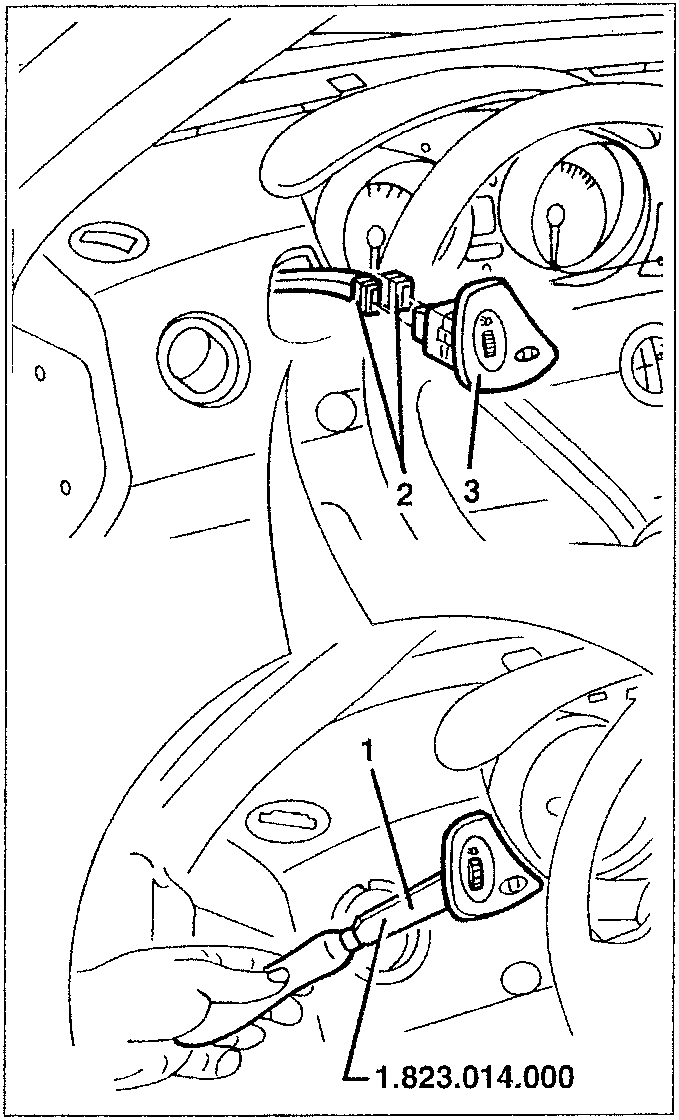

1. Use tool 1.823.014.000 to lift the switch board.
2. Disconnect the electrical connections.
3. Take the switch board.

1. Switch board
2. Tool 1.823.014.000
3. Switch

POWER WINDOW SWITCHES

REMOVAL/REFITTING

• Disconnect the battery

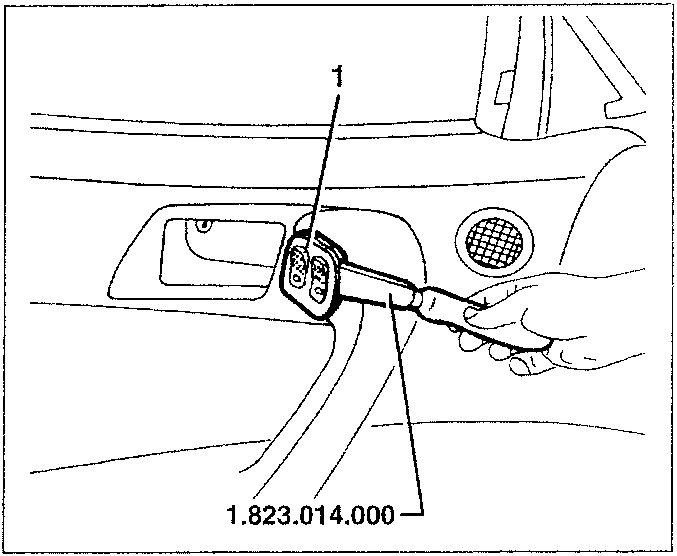

1. Using tool 1823.014.000 prise the switch plate off the door panel.

1. Switch plate
2. Tool 1.823.014.000

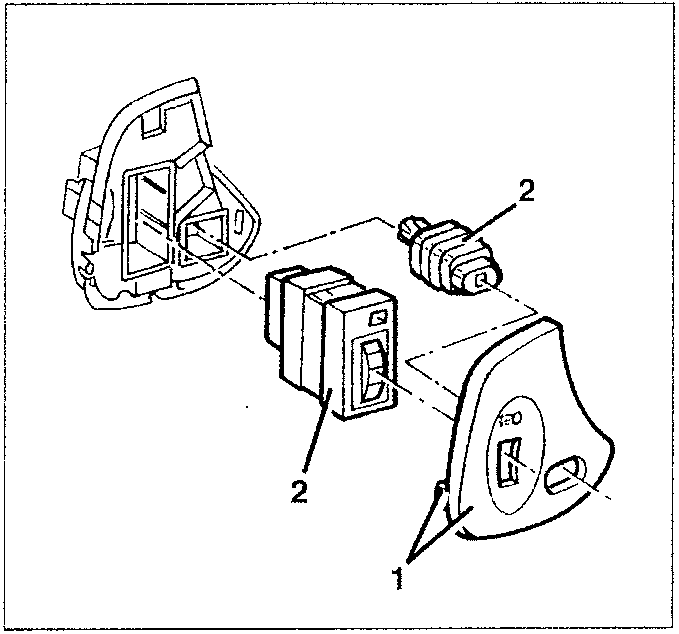

1. Press the tabs and remove the external plate.

2. Take the switch and variator.

1. Switch
2. Variator
