Steering column lever unit

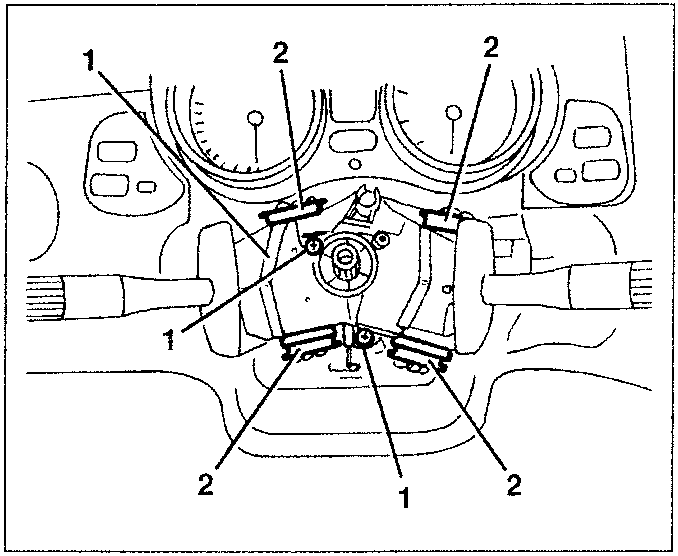

STEERING COLUMN LEVER UNIT

REMOVAL/REFITTING

• Disconnect the battery.
• Remove the steering wheel and steering column covers (see Group 41).

1. Slacken the two screws.
2. Withdraw the lever unit and disconnect the electrical connections.
3. Retrieve the lever unit complete.

Refit the lever unit reversing the sequence followed for removal.

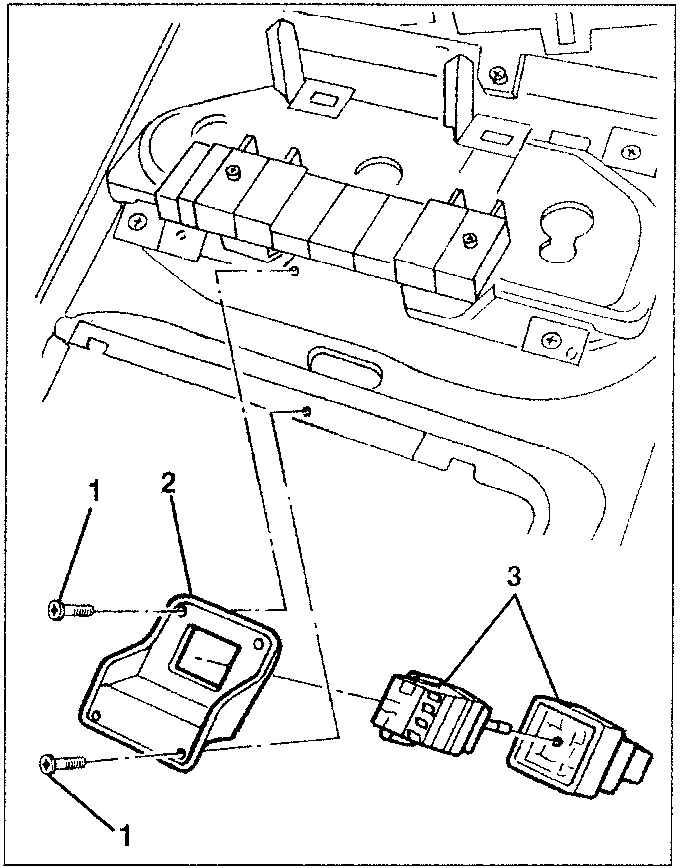

HAZARD WARNING LIGHTS CONTROL SWITCH (to '97 versions)

REMOVAL/REFITTING

• Remove the centre console (see Group 70).

1. Slacken the two screws.
2. Remove the connection bracket.
3. Retrieve the hazard warning lights control switch.

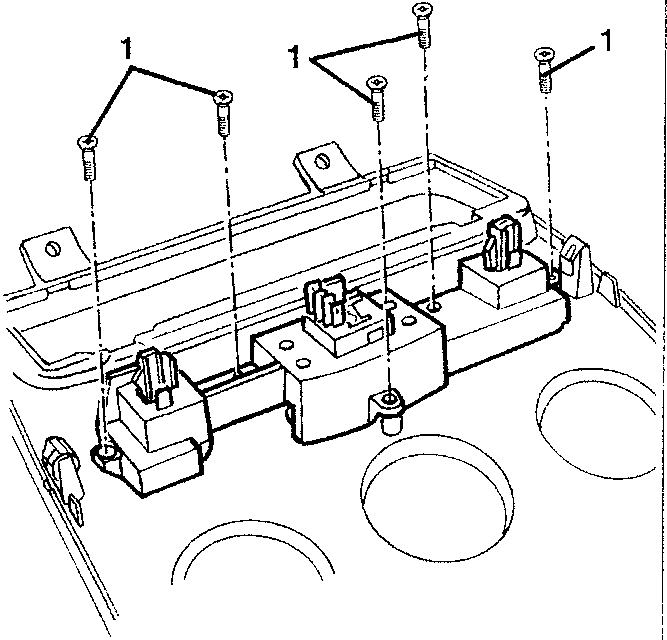

HAZARD LIGHT / FOG LIGHT / REAR FOG LIGHT SWITCHES ('98 versions)

REMOVAL - REFITTING

• Remove the central unit (see specific paragraph).

1. Loosen the switch assembly fastening screws.
2. Remove the switch assembly.
