Auxiliary instrument panel disassembly (if required)

1. If required, turn the concerned bulb holder and extract it; remove the bulb from the bulb holder (clipped in).
2. Disconnect the electrical connection.
3. Take the auxiliary instrument panel.

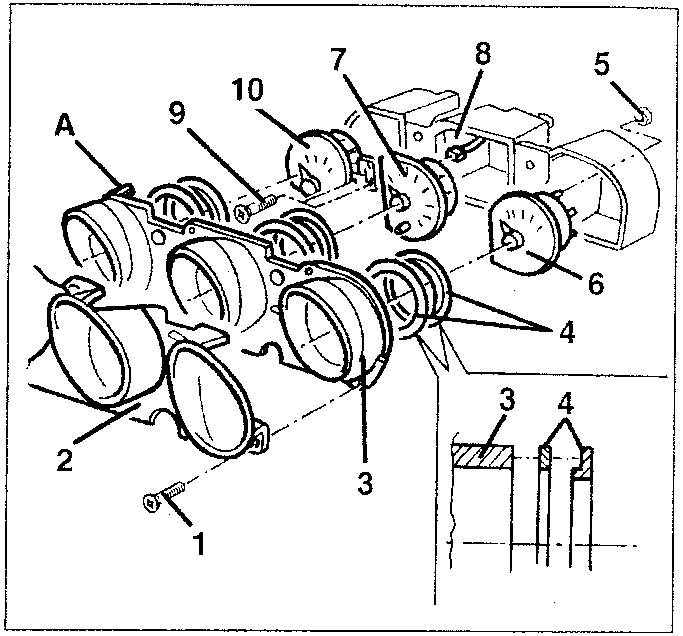

Auxiliary instrument panel disassembly (if required)

1. Loosen the screws.
2. Remove the lens.
3. Loosen the three retainers (A) and remove the plate.
4. Remove the seals.
5. Loosen the three nuts .
6. Remove the coolant temperature gauge.
7. Slightly extract the clock.
8. Disconnect the electrical connection and take the instrument.
9. Loosen the screws.
10. Remove the fuel level gauge.

Reassemble (if disassembled) and refit the auxiliary instrument panel by reversing the removal sequence.
