55 Electric systemRemoval/refitting

REMOVAL/REFITTING

  • Disconnect the battery
  1. Slacken the two screws.
  2. Remove the panel releasing the lower clamps.

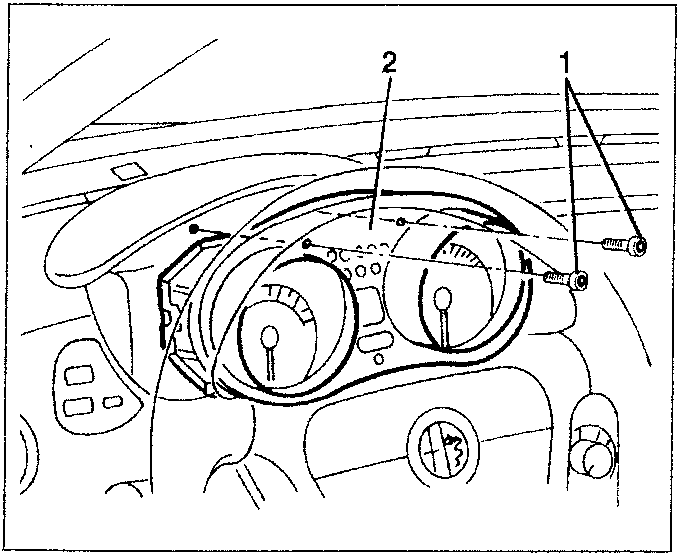

Instrument cluster with screws and clamps
  1. Disconnect the two electrical connections.
  2. Release the wirings from the retainer brackets.
  3. Retrieve the instrument cluster.

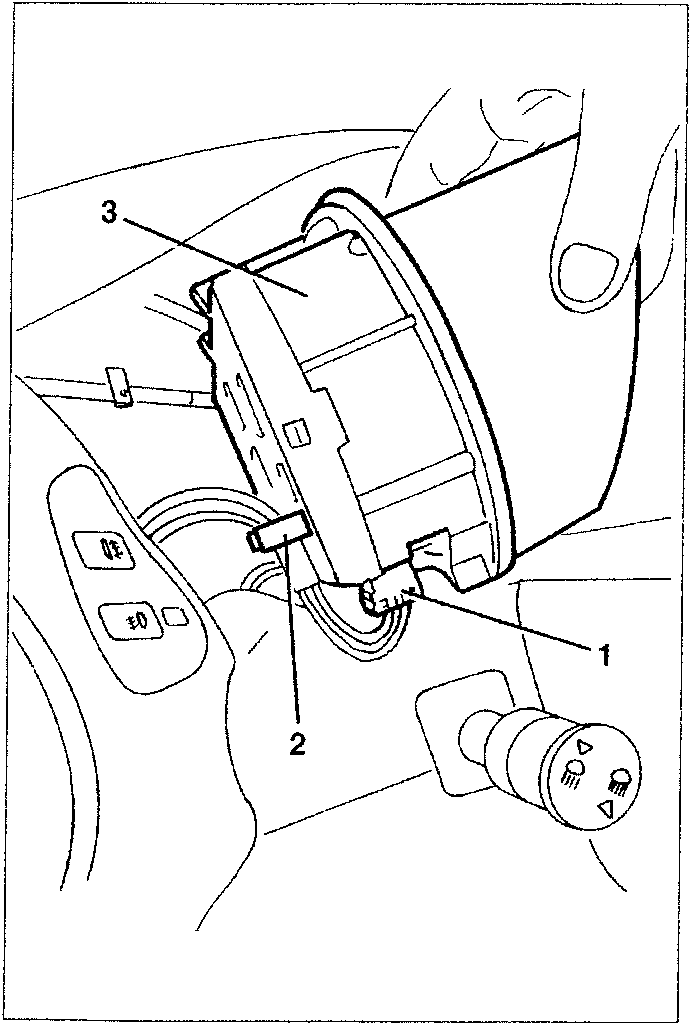

Hand retrieving instrument cluster with wiring connections

If necessary change the bulbs withdrawing the bulb holder from the cluster and removing the bulbs.

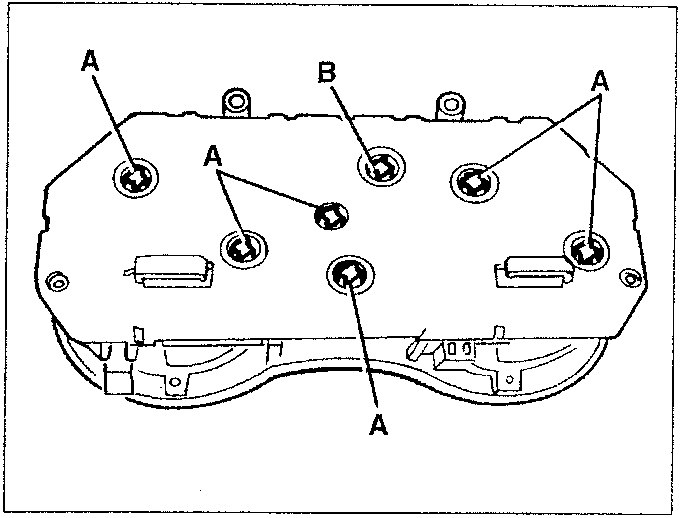

Instrument cluster bulb layout with labels A and B
  1. A - Cluster light bulbs
  2. B - High beam warning light

AUXILIARY PANEL

GENERAL DESCRIPTION

The auxiliary panel is located in the centre of the dashboard and contains the coolant temperature gauge and the fuel level gauge with the associated warning lights. It is completed by an analogue clock.

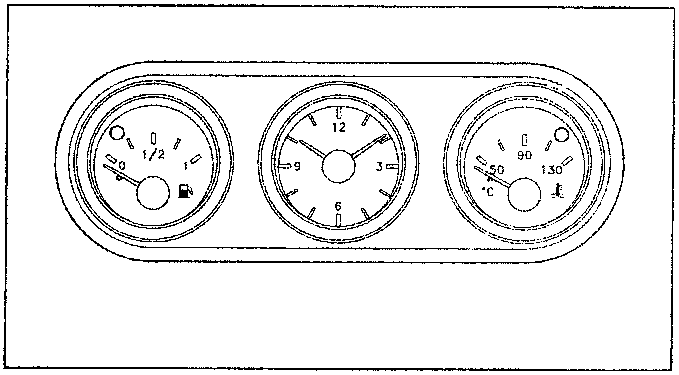

Auxiliary panel with three gauges: coolant, fuel, and clock
